Managing SMS Notification Templates From the Registry

WSO2 Identity Server supports notifications via SMS from WSO2 Identity Server 5.10.0 onwards. This document will guide you through the process of adding a new SMS notification template and editing an existing notification template.

Before you begin

An SMS template can only have the following attributes.

- displayName
- type
- locale
- body

sample-sms-template

Having more attributes such as Footer or Subject will lead to errors.

Adding an SMS notification template

In WSO2 Identity server, the notification templates are packed by default. However, if you want to add a new SMS notification template, the following methods are available.

  1. Add template via configuration files
  2. Add template via the management console registry

Add an SMS notification template using configuration files

  1. Navigate to the <IS_HOME>/repository/conf/sms folder.

  2. Open the sms-templates-admin-config.xml file to view default templates and edit them.

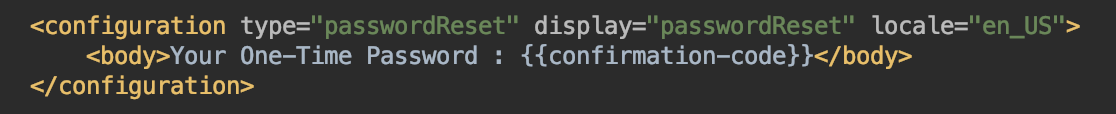

  3. Add a new template using the allowed attributes. A sample template is given below.

    sample-sms-template

Note

If WSO2 IS is already running, restart the server to apply the changes.

Add an SMS notification template using the registry

  1. Log in to the management console and navigate to Main> Registry> Browse.

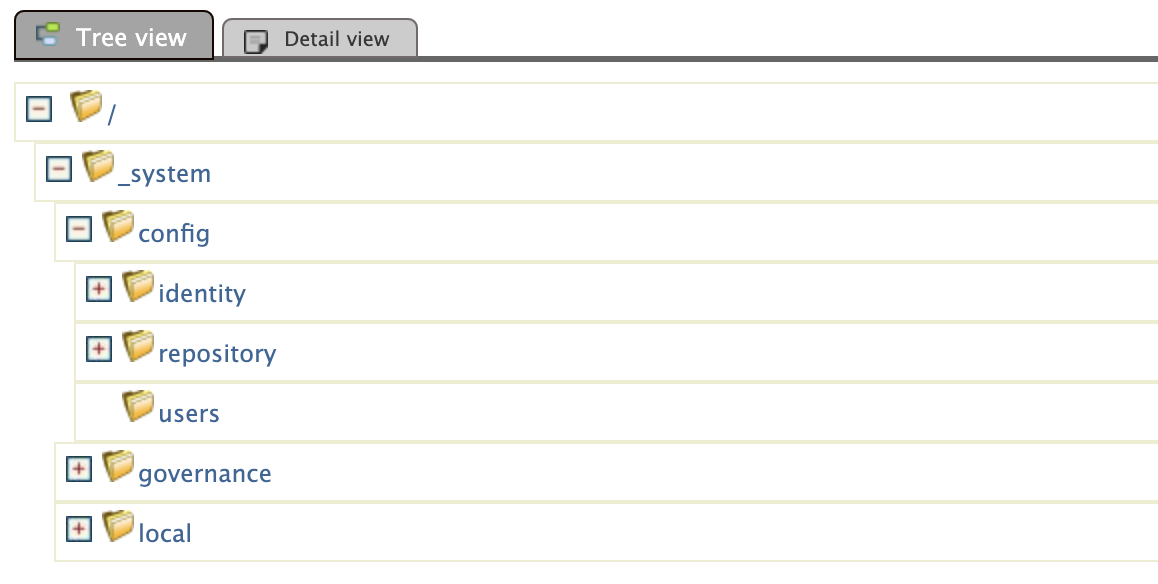

  2. On the tree view tab, click on system>config>identity.

    config-identity

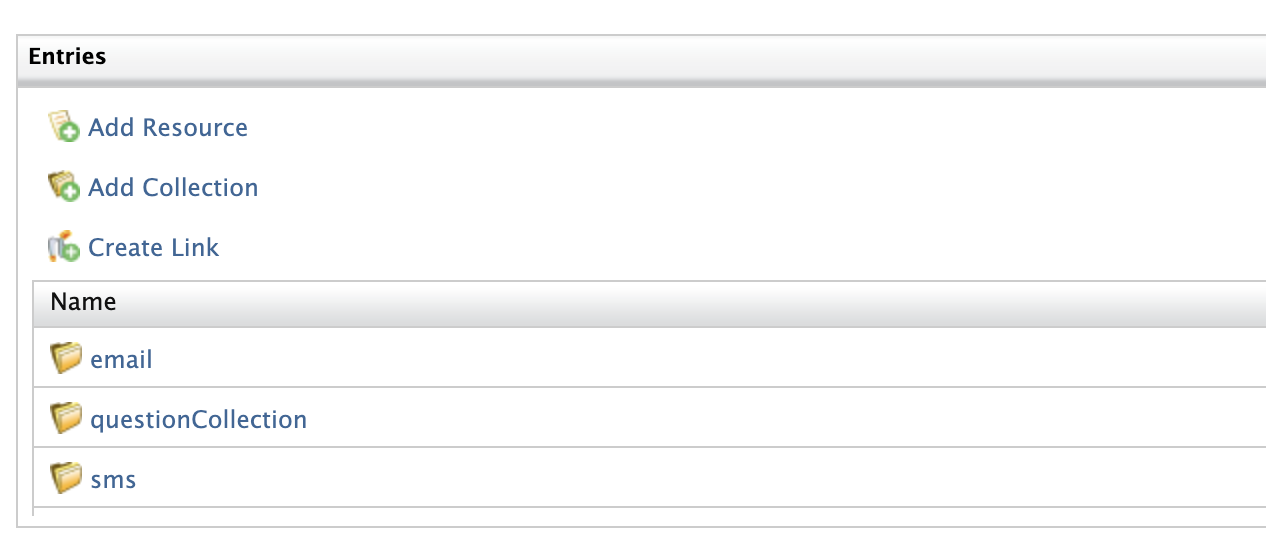

  3. Click Add Collection and enter sms as the Collection Name.

    (NOTE: Names are case-sensitive)

    add-sms-collection

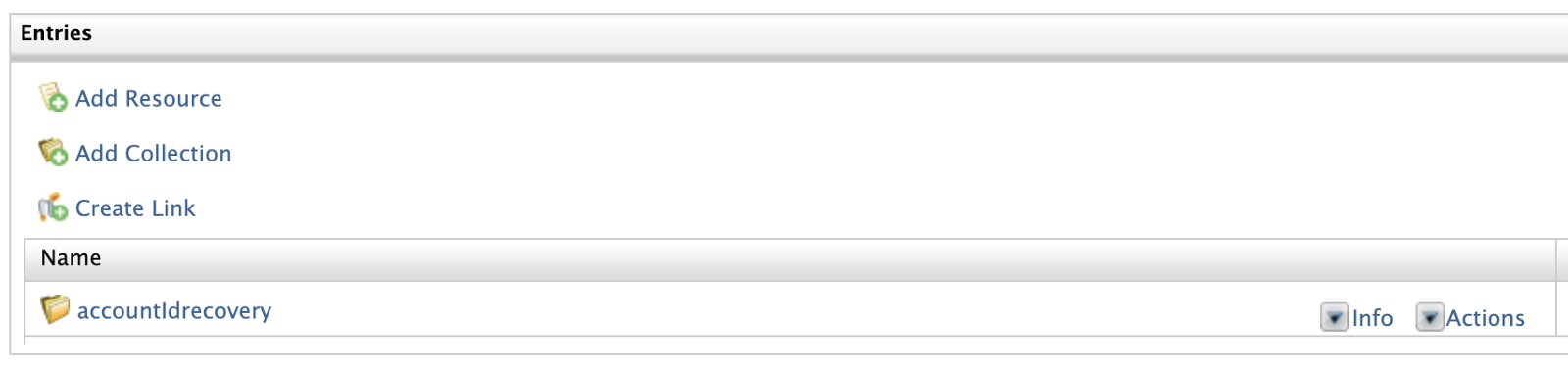

  4. Click on the sms directory and click Add Collection and enter the collection name as accountidrecovery.

    Note

    For this scenario, accountidrecovery is the type of the template.

    add-collection-for-type

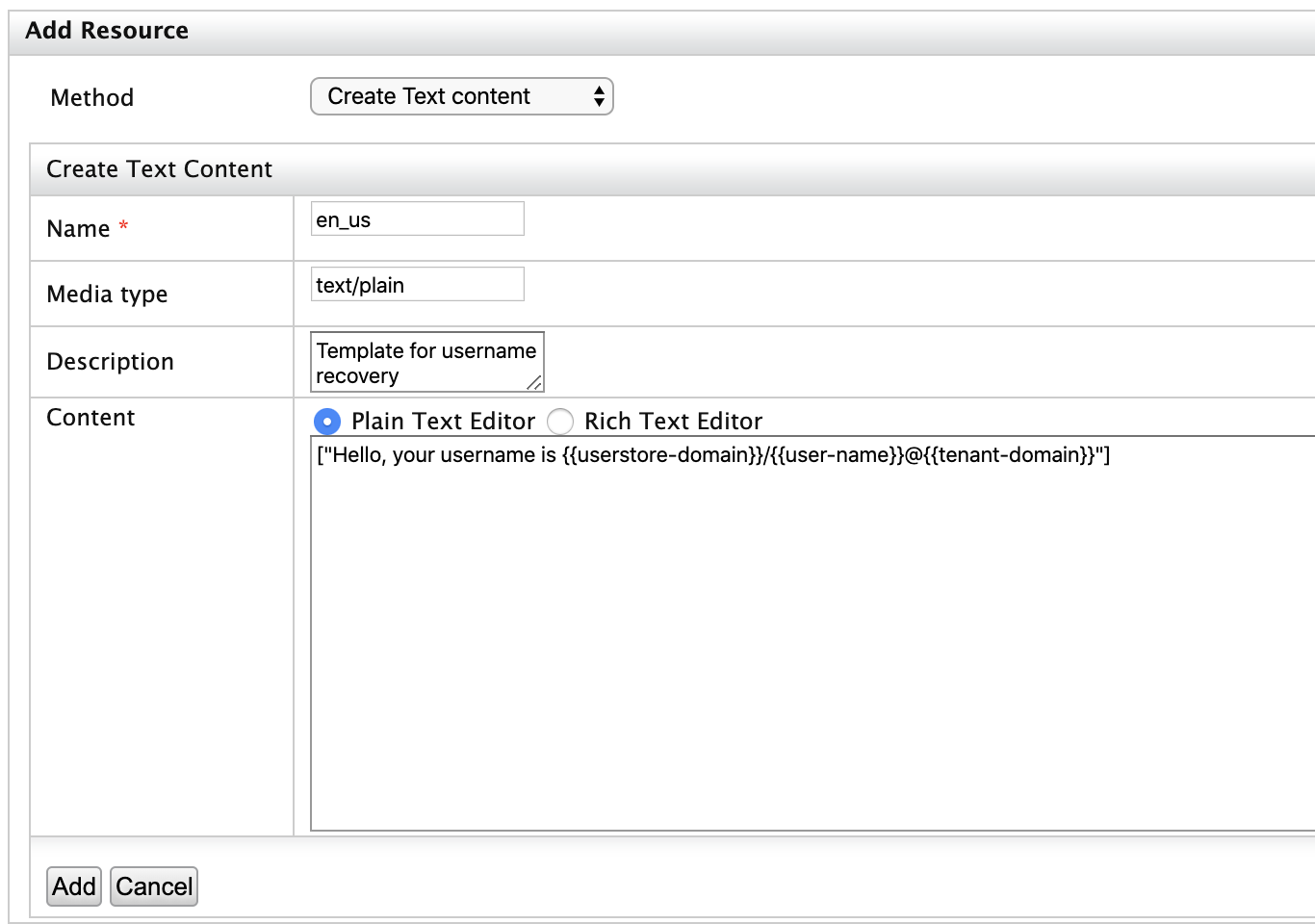

  5. Click on Add Resource.

  6. Select the method as Create Text Content.

  7. Provide name as en_us.

  8. Add the SMS notification template body.

    (NOTE: Include placeholders in the SMS template body)

    ["Hello, your username is {{userstore-domain}}/{{user-name}}@{{tenant-domain}}"]

    add-resource-object

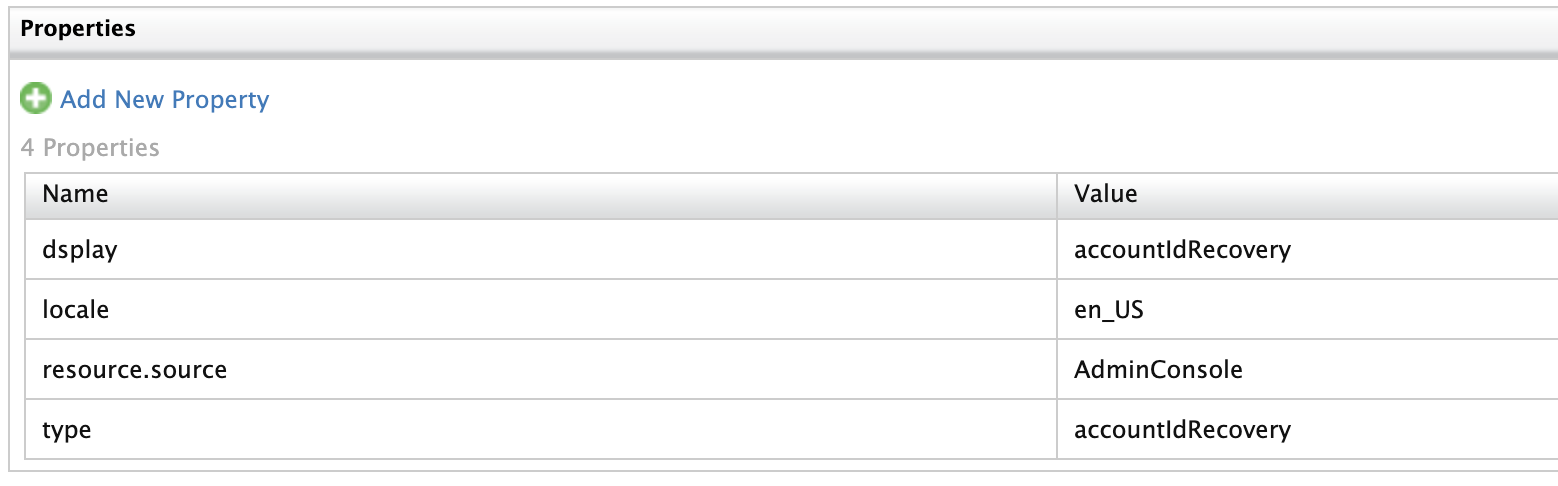

  9. Click on en_us resource and add the following properties.

    display : accountIdRecovery
type : accountIdRecovery
locale : en_US
    resource-properties

  10. Click Finish to save the new notification template.

Edit an SMS notification template from the registry

  1. Log in to the Management Console and click Main> Registry> Browse.

  2. On the tree view tab, click system > config >identity > sms > accountidrecovery.

  3. Click on en_us to view the template.

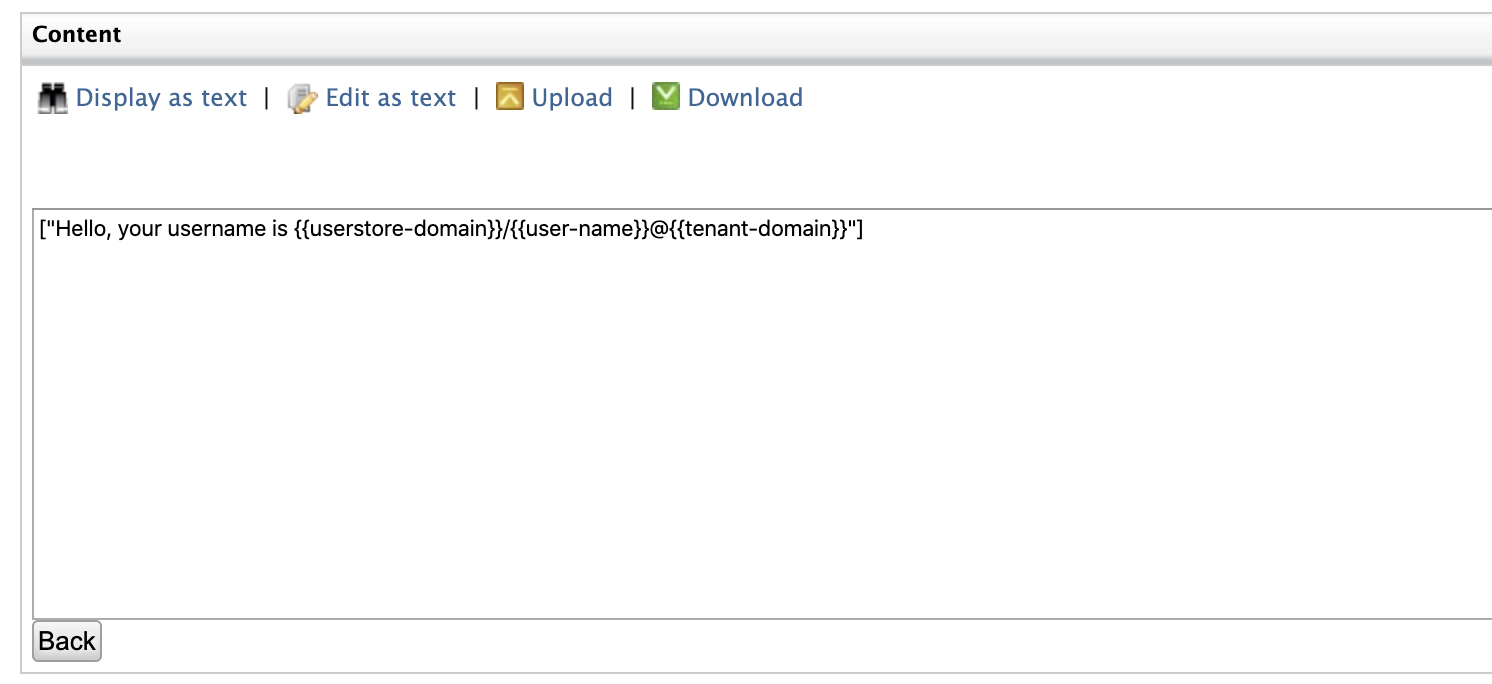

  4. Click Display as text to view the template or click Edit as text to edit the template.

    edit-notification-template
