Add login and logout to your app
2 min

Modify Index page¶

Let's create a simple login page for our app.

touch views/login.ejs

Open views/login.ejs and add the following code:

<!DOCTYPE html>
<html>

<head>
  <title>
    <%= title %>
  </title>
  <link rel='stylesheet' href='/stylesheets/style.css' />
</head>

<body>
  <div>
    <form action="/login">
      <button type="submit">Login with WSO2 Identity Server</button>
    </form>
  </div>
</body>

</html>

Next, we will modify the routes/index.js file to show the login page when the user is not authenticated.

var express = require("express");
var router = express.Router();

/* GET home page. */
router.get("/", function (req, res, next) {
  if (req.isAuthenticated()) {
    res.render("index", { title: "Express" });
  } else {
    res.render("login", { title: "Express" });
  }
});

module.exports = router;

Add routes¶

When the user clicks the "Login with WSO2 Identity Server" button, they will be redirected to our app's login page, which is hosted by WSO2 Identity Server. Once on that page, the user will log in by providing their credentials. After they've logged in, the user will be redirected back to our app.

Open routes/auth.js and add the following code at the end of the file, which creates two routes. The first will redirect the user to the sigin page. The second will process the authentication result when the user is redirected back.

var express = require("express");
var qs = require("querystring");
var router = express.Router();

router.get("/login", passport.authenticate("asgardeo"));

router.get(
  "/oauth2/redirect",
  passport.authenticate("asgardeo", {
    successRedirect: "/",
    failureRedirect: "/login",
  })
);

module.exports = router;

Next, we need to add these routes to our app. Open app.js and modify the file as shown below to require the new auth router and add it to the app.

require("dotenv").config();

var createError = require('http-errors');
var express = require('express');
var path = require('path');
var cookieParser = require('cookie-parser');
var logger = require('morgan');

var indexRouter = require('./routes/index');
var usersRouter = require('./routes/users');
var authRouter = require("./routes/auth");

var app = express();

// view engine setup
app.set('views', path.join(__dirname, 'views'));
app.set('view engine', 'ejs');

app.use(logger('dev'));
app.use(express.json());
app.use(express.urlencoded({ extended: false }));
app.use(cookieParser());
app.use(express.static(path.join(__dirname, 'public')));

app.use('/', indexRouter);
app.use('/users', usersRouter);
app.use("/", authRouter);

// catch 404 and forward to error handler
app.use(function(req, res, next) {
  next(createError(404));
});

// error handler
app.use(function(err, req, res, next) {
  // set locals, only providing error in development
  res.locals.message = err.message;
  res.locals.error = req.app.get('env') === 'development' ? err : {};

  // render the error page
  res.status(err.status || 500);
  res.render('error');
});

module.exports = app;

The routes have been added to the app. Next we need to maintain state when redirecting to WSO2 Identity Server.

Maintaining the session¶

When a user signs in to our app via our app's WSO2 Identity Server-hosted sign in page, they are redirected to WSO2 Identity Server. WSO2 Identity Server takes care of authenticating the user and then redirects them back to our app.

For security, state needs to be maintained between these two redirects. Passport does this automatically, but the app first needs session support. Let's add that now.

Begin by installing the necessary dependencies:

npm install express-session

Open app.js and modify the file as shown below to add passport authentication with session support.

require("dotenv").config();

var createError = require('http-errors');
var express = require('express');
var path = require('path');
var cookieParser = require('cookie-parser');
var logger = require('morgan');
var session = require("express-session");
var passport = require("passport");

var indexRouter = require('./routes/index');
var usersRouter = require('./routes/users');
var authRouter = require("./routes/auth");

var app = express();

// view engine setup
app.set('views', path.join(__dirname, 'views'));
app.set('view engine', 'ejs');

app.use(logger('dev'));
app.use(express.json());
app.use(express.urlencoded({ extended: false }));
app.use(cookieParser());
app.use(express.static(path.join(__dirname, 'public')));
app.use(
  session({
    secret: "keyboard cat",
    resave: false,
    saveUninitialized: false,
  })
);
app.use(passport.authenticate("session"));

app.use('/', indexRouter);
app.use('/users', usersRouter);
app.use("/", authRouter);

// catch 404 and forward to error handler
app.use(function(req, res, next) {
  next(createError(404));
});

// error handler
app.use(function(err, req, res, next) {
  // set locals, only providing error in development
  res.locals.message = err.message;
  res.locals.error = req.app.get('env') === 'development' ? err : {};

  // render the error page
  res.status(err.status || 500);
  res.render('error');
});

module.exports = app;

Next we need to configure Passport to manage the login session by adding serializeUser and deserializeUser functions. Open routes/auth.js and add the following code lines after the AsgardeoStrategy configuration.

passport.serializeUser(function (user, cb) {
  process.nextTick(function () {
    cb(null, {
      id: user?.uiProfile?.id,
      username: user?.uiProfile?._json?.username,
      givenName: user?.uiProfile?.name?.givenName,
      familyName: user?.uiProfile?.name?.familyName,
    });
  });
});

passport.deserializeUser(function (user, cb) {
  process.nextTick(function () {
    return cb(null, user);
  });
});

Now, let's try signing in.

Start the server:

npm start

Open http://localhost:3000 and click the "Login with Asgardeo" button. You will be redirected to the WSO2 Identity Server login page. Enter the user credentials and click "Sign In". You will be redirected back to the index page.

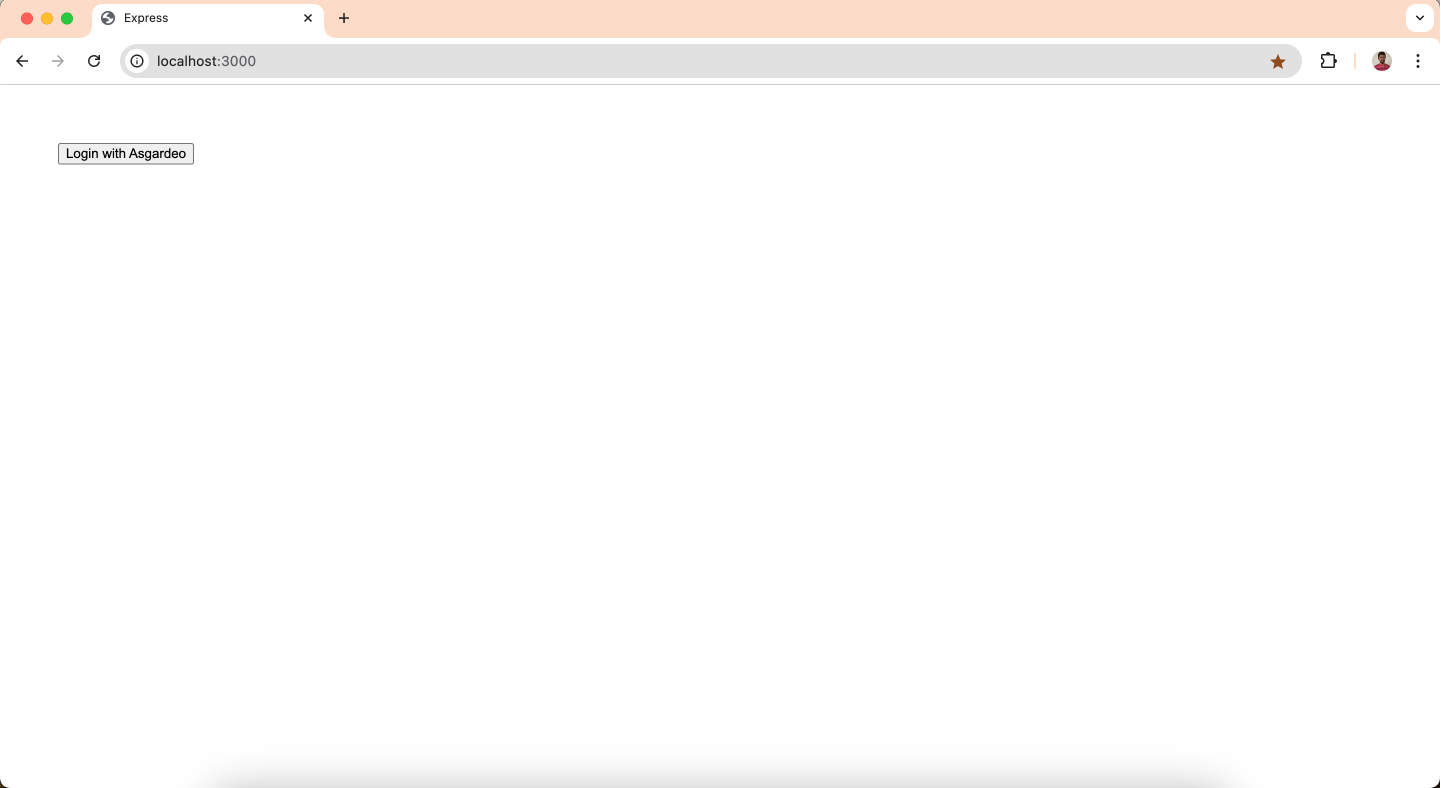

Login page

Log Out¶

Now that users can sign in to the application, they'll need a way to sign out.

Open routes/auth.js file and add the following route below the /oauth2/redirect route configuration:

router.post("/logout", function (req, res, next) {
  req.logout(function (err) {
    if (err) {
      return next(err);
    }
    var params = {
      post_logout_redirect_uri: "http://localhost:3000",
      client_id: process.env.CLIENT_ID,
    };
    res.redirect(
      BASE_URL + "/oidc/logout?" +
        qs.stringify(params)
    );
  });
});

We need to modify the views/index.ejs file as shown and add a logout button.

<!DOCTYPE html>
<html>

<head>
  <title>
    <%= title %>
  </title>
  <link rel='stylesheet' href='/stylesheets/style.css' />
</head>

<body>
  <h1>
    <%= title %>
  </h1>
  <p>Welcome to <%= title %>
  </p>
  <div>
    <form action="/logout" method="post">
      <button type="submit">Log Out</button>
    </form>
  </div>
</body>

</html>

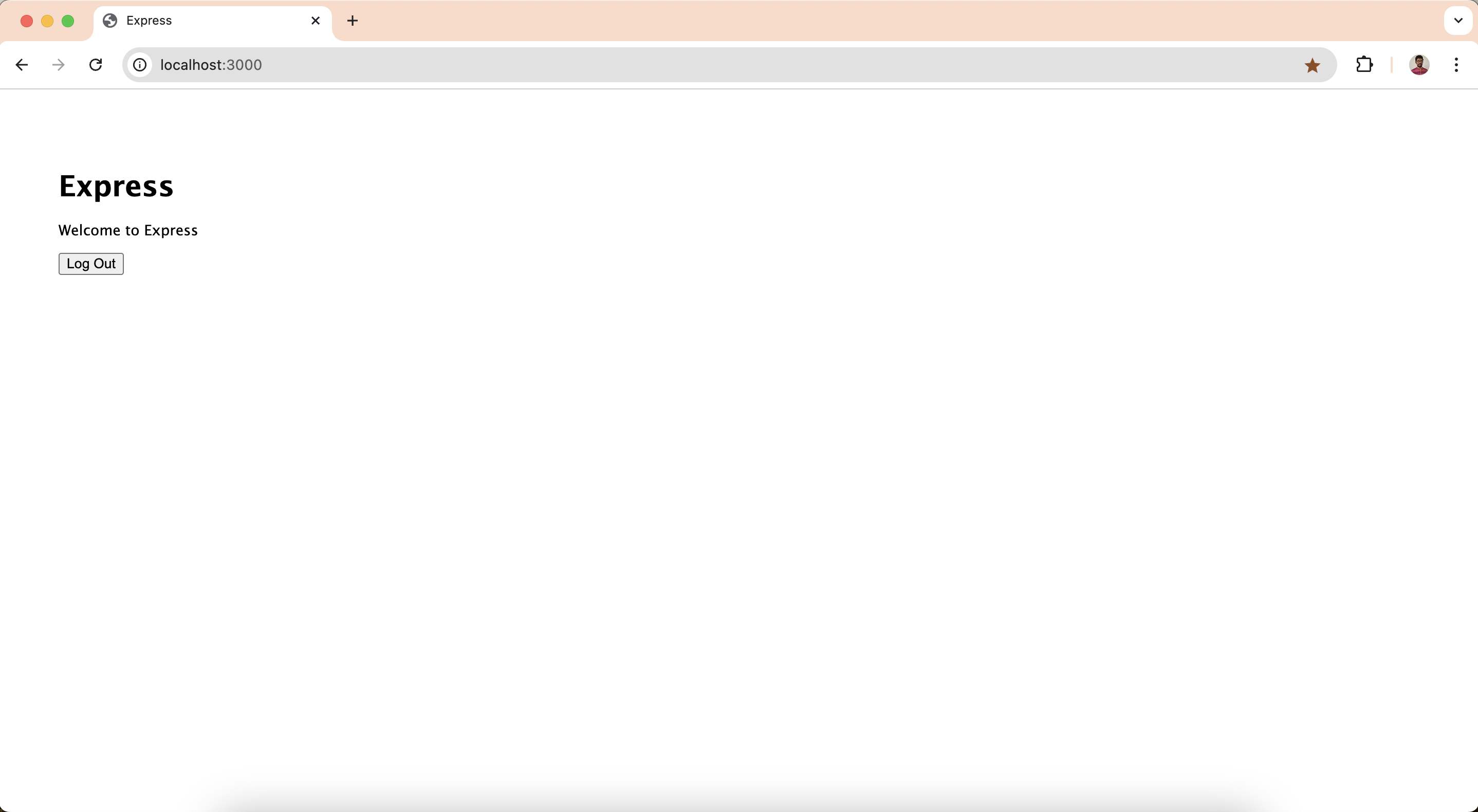

Logout page

Return to the app, where you should already be signed in, and click "Log out."

We've now got a working app where users can sign in and sign out!

Tip

In WSO2 Identity Server, the default certificate is a self signed certificate. This certificate needs to be added to the runtime path in order to avoid SSL errors.

Excute the below commands before running npm start

Naviate to the {IS_HOME}/repository/resources/security directory and execute the following

keytool -export -alias wso2carbon -file carbon_public2.crt -keystore wso2carbon.p12 -storetype PKCS12 -storepass wso2carbon

Convert the certificate to X509 format.

openssl x509 -in carbon_public2.crt -inform der -outform pem -out certificate.pem

Navigate to the passport-wso2-sample home and execute the following

export NODE_EXTRA_CA_CERTS=./<PATH_TO_CERTIFICATE_FILE>/certificate.pem
