User Self Registration and Account confirmation via Mobile and Email Channels¶

WSO2 Identity Server (WSO2 IS) supports self-registration to allow users set up their account and receive confirmation when the account is created.

When a user self-registers, the self-registration process creates the user account and locks the account until the user confirms account ownership via a confirmation mail or a SMS One Time Password(OTP) that WSO2 IS sends.

If a user does not confirm account ownership before the specified expiry period, the user account is locked assuming that the expired account is not owned by the creator. If necessary, the system administrator can delete such accounts to manage resources better.

The following sections walk you through configuring and trying out self-registration via SMS and Email Channels.

[event.default_listener.identity_mgt]
priority= "50"
enable = false
[event.default_listener.governance_identity_mgt]
priority= "95"
enable = true
[event.default_listener.governance_identity_store]
priority= "97"
enable = true

Configuring self-registration¶

Follow the steps given below to register users for the super tenant, which is carbon.super.

1. Add the following properties to the deployment.toml file in the <IS_HOME>/repository/conf folder to configure the the identity server to send confirmation emails.

   Note

   You need to add this configuration only if you wish to configure WSO2 IS to send confirmation emails. Alternatively, you can use your own email managing mechanism.

   [output_adapter.email]
   from_address= "[email protected]"
   username= "wso2iamtest"
   password= "Wso2@iam70"
   hostname= "smtp.gmail.com"
   port= 587
   enable_start_tls= true
   enable_authentication= true

2. Add the following properties to the deployemnt.toml to configure notification handling and self registration to support multiple notification channels.

   [identity_mgt.notification]
   default_notification_channel = "EMAIL"
   resolve_notification_channel = true

   [identity_mgt.user_self_registration]
   enable_account_lock_for_verified_preferred_channel = false
   enable_detailed_api_response = true

   Property Name	Functionality
   default_notification_channel	Default notification channel. If the user has not specified a notification channel user will be notified via the defined channel. warning Currently, WSO2 IS supports SMS and EMAIL as Internal Notification channels. DO NOT change the values since they are case sensitive. Changing the case will lead to Errors. By default this value is set to EMAIL.
   resolve_notification_channel	Enable server to determine whether to send notifications via a SMS or an email. Disabling this property would send notifications via the channel defined by default_notification_channel.
   enable_account_lock_for_verified_preferred_channel	Allows a user to skip account confirmation if the user is already veirifed. Warning WSO2 recommends verifying users after self registration rather than using pre-verified user self registration. Therefore, it is recommended to set the property to true.
   enable_detailed_api_response	Enable detailed API response body. By default this value is set to false.

3. Add an event publisher to <IS_HOME/repository/deployment/server/eventpublishers. For this sample, http output adapter is used. Following is a sample publisher to call a REST Service to send confirmation codes.

   Sample Event Publisher

   <?xml version="1.0" encoding="UTF-8"?>
   <eventPublisher name="HTTPOutputEventAdapter" processing="enable"
       statistics="disable" trace="disable" xmlns="http://wso2.org/carbon/eventpublisher">
       <from streamName="id_gov_sms_notify_stream" version="1.0.0"/>
       <mapping customMapping="enable" type="json">
           <inline>{"api_key":"4c9374",
               "api_secret":"FtqyPggE93",
               "from":"NEXMO",
               "to":{{mobile}},
               "text":{{body}}
               }</inline>
       </mapping>
       <to eventAdapterType="http">
           <property name="http.client.method">httpPost</property>
           <property name="http.url">https://rest.nexmo.com/sms/json</property>
       </to>
   </eventPublisher>

   Note

   This publisher uses NEXMO as the SMS REST service provider. For more information on writing a custom http event publisher, see HTTP Event Publisher.

4. Start WSO2 IS and log in to the management console : https://<IS_HOST>:<IS_PORT>/carbon.
   NOTE: If your IS is already running, make sure to restart to apply above configurations.

5. Navigate to Main -> Identity Providers -> Resident -> Account Management Policies section.

6. Expand the User Self Registration section and configure the following properties.



   Field	Description
   Enable Self User Registration	Enable self registration.
   Enable Account Lock On Creation Enabled	Enable account lock during self registration. The account will be unclocked upon confirmation.

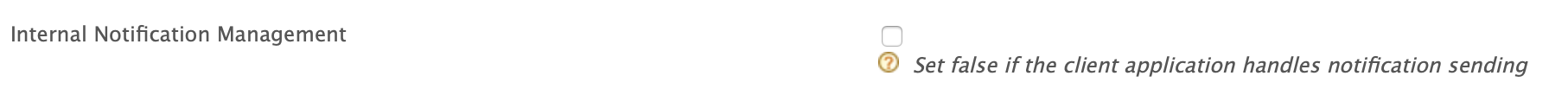

   Enable Notification Internally Management	Select to configure Identity server to send confirmation emails to the user. If the client application handles notification sending already, unselect it.
   Enable reCaptcha	Select to enable reCaptcha for self-registration. See Configuring Google reCaptcha for Security-Question Based Password Recovery for more information.
   User self registration verification link expiry time.	Number of minutes that the confirmation link would be valid. The confirmation link will expire after the specified time has elapsed. Note Alternatively, you can configure the expiry time from the deployment.toml file. [identity_mgt.user_self_registration] allow_self_registration= true expiry_time="1440"
   User self registration SMS OTP expiry time	User self registration verification link expiry time. The default and minimum value is 1 minute.

Manage notification templates¶

Manage Email Notification templates¶

The email notification templates are stored in the IS_HOME>/repository/conf/email/email-admin-config.xml file and they can be edited using the Management Console.

Manage SMS Notification templates¶

The templates for SMS notifications are stored in the registry. You can edit the default template using the management console or using the configuration files.

Configuring self-registration consent purposes¶

For more details see, Configuring self-registration consent purposes.

Try out self-registration¶

WSO2 Identity Server provides the functionality to confirm the user account internally or externally.

1. Internal Notification Management : Notification sending for account confirmation is managed by WSO2 Identity Server.

2. External Notification Management : Notification sending and confirming the registration flow to WSO2 Identity Server is managed by an external notification management mechanism.

Self Registration with Internal Notification Management¶

1. Use the following command to create a user self-registration request.

   ``` tab="If the preferred channel is EMAIL" curl -X POST -H "Authorization: Basic YWRtaW46YWRtaW4=" -H "Content-Type: application/json" -d '{"user": {"username": "kim","realm": "PRIMARY", "password": "Password12!","claims": [{"uri": "http://wso2.org/claims/givenname","value": "kim" },{"uri": "http://wso2.org/claims/emailaddress","value": "[email protected]"},{"uri": "http://wso2.org/claims/identity/preferredChannel","value": "EMAIL"},{"uri": "http://wso2.org/claims/lastname","value": "Anderson"},{"uri": "http://wso2.org/claims/mobile","value": "947721584558"} ] },"properties": []}' "https://localhost:9443/api/identity/user/v1.0/me"


   ``` tab="If the Preferred channel is SMS"
   curl -X POST -H "Authorization: Basic YWRtaW46YWRtaW4=" -H "Content-Type: application/json" -d '{"user": {"username":"kim","realm": "PRIMARY", "password": "Password12!","claims": [{"uri": "http://wso2.org/claims/givenname","value": "kim" },{"uri": "http://wso2.org/claims/emailaddress","value": "[email protected]"},{"uri": "http://wso2.org/claims/identity/preferredChannel","value": "SMS"},{"uri": "http://wso2.org/claims/lastname","value": "Anderson"},{"uri": "http://wso2.org/claims/mobile","value": "94774747551"} ] },"properties": []}' "https://localhost:9443/api/identity/user/v1.0/me"

   Note

   For more information, see API Requests and Responses.

2. Following response will be returned by the API.

   ``` tab="Preferred channel as EMAIL" { "code":"USR-02001", "message":"Successful user self registration. Pending account verification.", "notificationChannel":"EMAIL", "confirmationCode":null }


   ``` tab="Preferred channel as SMS"
   {
       "code":"USR-02001",
       "message":"Successful user self registration. Pending account verification.",
       "notificationChannel":"SMS",
       "confirmationCode":null
   }

   Note

   • If the preferred channel has not been specified in the request, the server will decide which notification channel to use. If the resolve_notification_channel property is set to true, the notification channel that was used will be returned in the response with the notificationChannel parameter.

   • NOTE: If the above property is not enabled the user will be notified via the channel specfied by default_notification_channel proerty in deployment.toml.

   • For more information, see Notification channel selection criteria.

3. If the notification channel is EMAIL, access the relevant email account and click the button or the confirmation link. Then the user account will be unlocked.

   Note

   If you have not provided a callback in the properties of the self registration request, you will not be navigated to the user dashboard.

4. If the notification channel is SMS, the user will receive an OTP (One-Time-Password). Use the following command to confirm the user account.

   curl -k -v -X POST -H "Authorization: Basic YWRtaW46YWRtaW4=" -H  "Content-Type: application/json" -d '{ "code": "SBH3F3","properties": []}' "https://localhost:9443/api/identity/user/v1.0/validate-code"

Self Registration with External Notification Management¶

1. Use the following command to create a user self-registration request.

   Note

   For more information, see API Requests and Responses.

2. Following response will be returned by the API.

   {
   "code":"USR-02002",
   "message":"Successful user self registration. Pending External verification.",
   "notificationChannel":"EXTERNAL",
   "confirmationCode":"64928c66-18c2-4092-923b-fb8ce10eeccc"
   }

   Note

   Note that a confirmation code has been returned by the API. This code needs to be used to confirm the self registration flow.

3. Verify the user via an external mechanism.

4. To confirm the verification flow, use the following command.

   curl -k -v -X POST -H "Authorization: Basic YWRtaW46YWRtaW4=" -H  "Content-Type: application/json" -d '{ "code": "84325529-8aa7-4851-8751-5980a7f2d9f7","verifiedChannel":{"type":"SMS", "claim":"http://wso2.org/claims/mobile"},"properties": []}' "https://localhost:9443/api/identity/user/v1.0/validate-code"

   Note

   Note that you can specify the externally verified channel in the request by entering the channel name and the value claim associated to it.

   Notification Channel	Value Claim
   SMS	http://wso2.org/claims/mobile
   EMAIL	http://wso2.org/claims/emailaddress

   Warning

   If the verified channel is not specified, EMAIL will be considered as the verified notification channel for the user.
