Enable mutual SSL

Mutual SSL is a security mechanism where both the client and server authenticate each other using digital certificates. Unlike traditional SSL, which only verifies the server’s identity, mutual SSL requires both parties to present certificates issued by a trusted Certificate Authority (CA). This ensures a highly secure connection and often eliminates the need for username/password authentication, as the client is authenticated based on its certificate.

How it works

Let's take a look at how mutual SSL works with clients and WSO2 Identity Server. The relevant digital certificates are stored in the following keystores.

  • WSO2 Identity Server server certificates are stored in,

    <IS-HOME>/repository/resources/security/wso2carbon.jks

  • The trusted client certificates are stored in,
    <IS-HOME>/repository/resources/security/clienttruststore.jks

Note

Learn more about WSO2 Identity Server's keystores and truststores.

These certificates are signed and issued by a certificate authority that allows both the client and server to communicate freely. Now let's look at how it works:

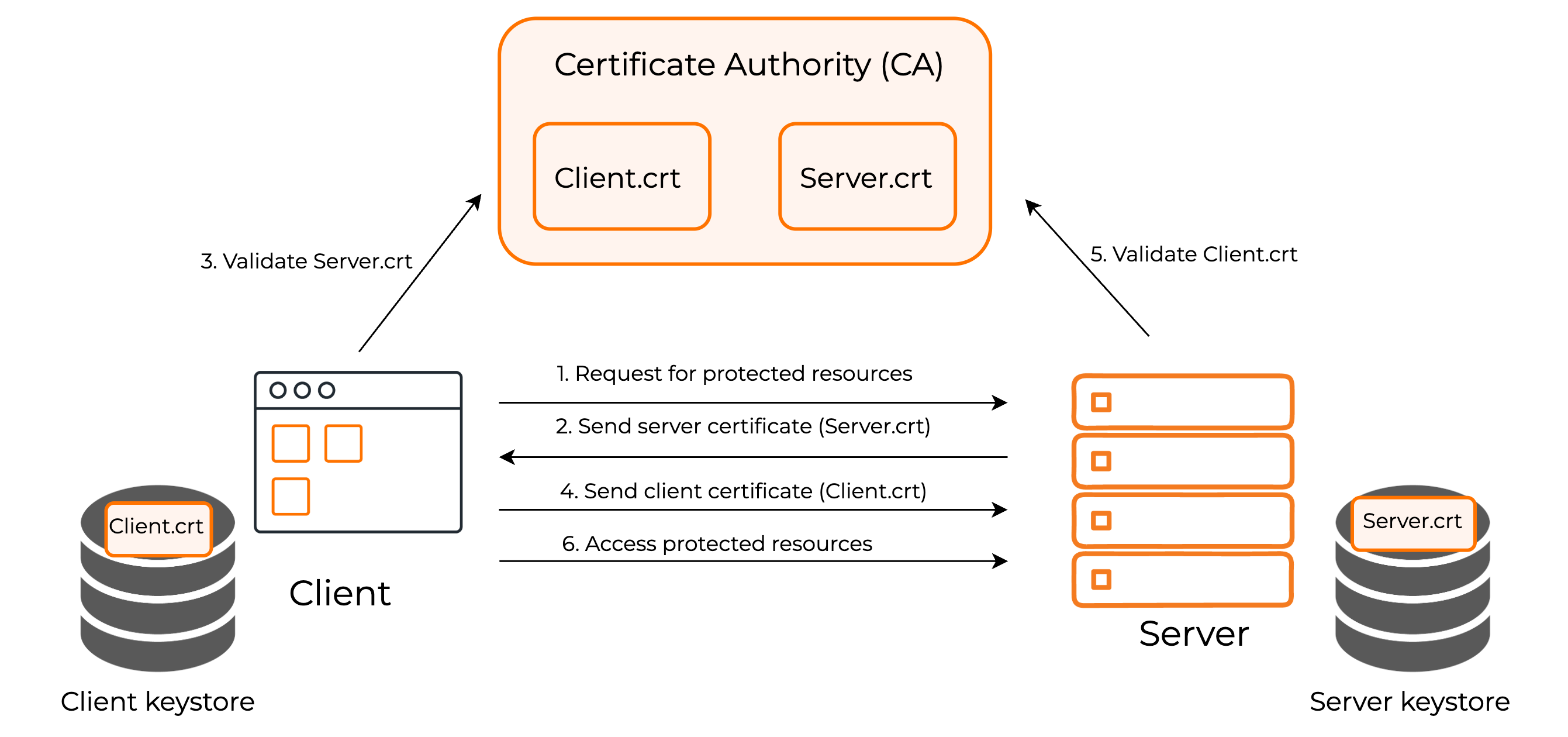

Certificate exchange flow

  1. The client attempts to access a protected resource and the SSL/TSL handshake process begins.
  2. The server presents its certificate,Server.crt, according to the above example.
  3. The client takes this certificate and requests the CA for authenticity and validity of the certificate.
  4. If the certificate is valid, the client will provide its certificate, Client.crt, to the server.
  5. The Server takes this certificate and requests the CA for authenticity and validity of the certificate.
  6. If the certificate is valid, the server grants the client access to the resource.

Enable Mutual SSL in WSO2 Identity Server

To enable mutual SSL,

  1. Open the <IS_HOME>/repository/conf/tomcat/catalina-server.xml file and find the certificateVerification attribute within the SSLHostConfig tag under the https connector. Make sure the value of it is set to want

    certificateVerification="want"

    Why?

    This configuration is set to want in order to make certificate authentication disabled for some scenarios (such as for mobile apps), essentially making two-way SSL authentication optional. You can set the value to require to make it mandatory.

    Alternatively, you can add the following configuration to the <IS_HOME>/repository/conf/deployment.toml file.

    [transport.https.sslHostConfig.properties]
certificateVerification = "want"

  2. Open the <IS_HOME>/repository/conf/deployment.toml file and add the following configuration to enable the mutual SSL authenticator.

    [admin_console.authenticator.mutual_ssl_authenticator]
enable = true

[admin_console.authenticator.mutual_ssl_authenticator.config]
WhiteList = ""

  3. For mutual SSL authentication to succeed, import the public certificate of WSO2 Identity Server to the client's truststore and import the public certificate of the client to WSO2 Identity Server's truststore. Consider the following example scenario.

    If both the client and WSO2 Identity Server use WSO2 Identity Server's keystore and truststore for authentication, WSO2 Identity Server's certificate must also be present in the truststore. This ensures that the client can verify and trust WSO2 Identity Server during the authentication process. To do this, execute the following commands from the <IS_HOME>/repository/resources/security directory.

    1. Extract the public certificate of WSO2 Identity Server using the following command.
    ```shell
keytool -export -alias wso2carbon -file carbon_public2.crt -keystore wso2carbon.jks -storepass wso2carbon
```
    1. Import the public certificate to the truststore using the following command.
    ```shell
keytool -import -trustcacerts -alias carbon -file carbon_public2.crt -keystore  client-truststore.jks -storepass wso2carbon
```
