Integrate mod_auth_openidc with WSO2 Identity Server¶

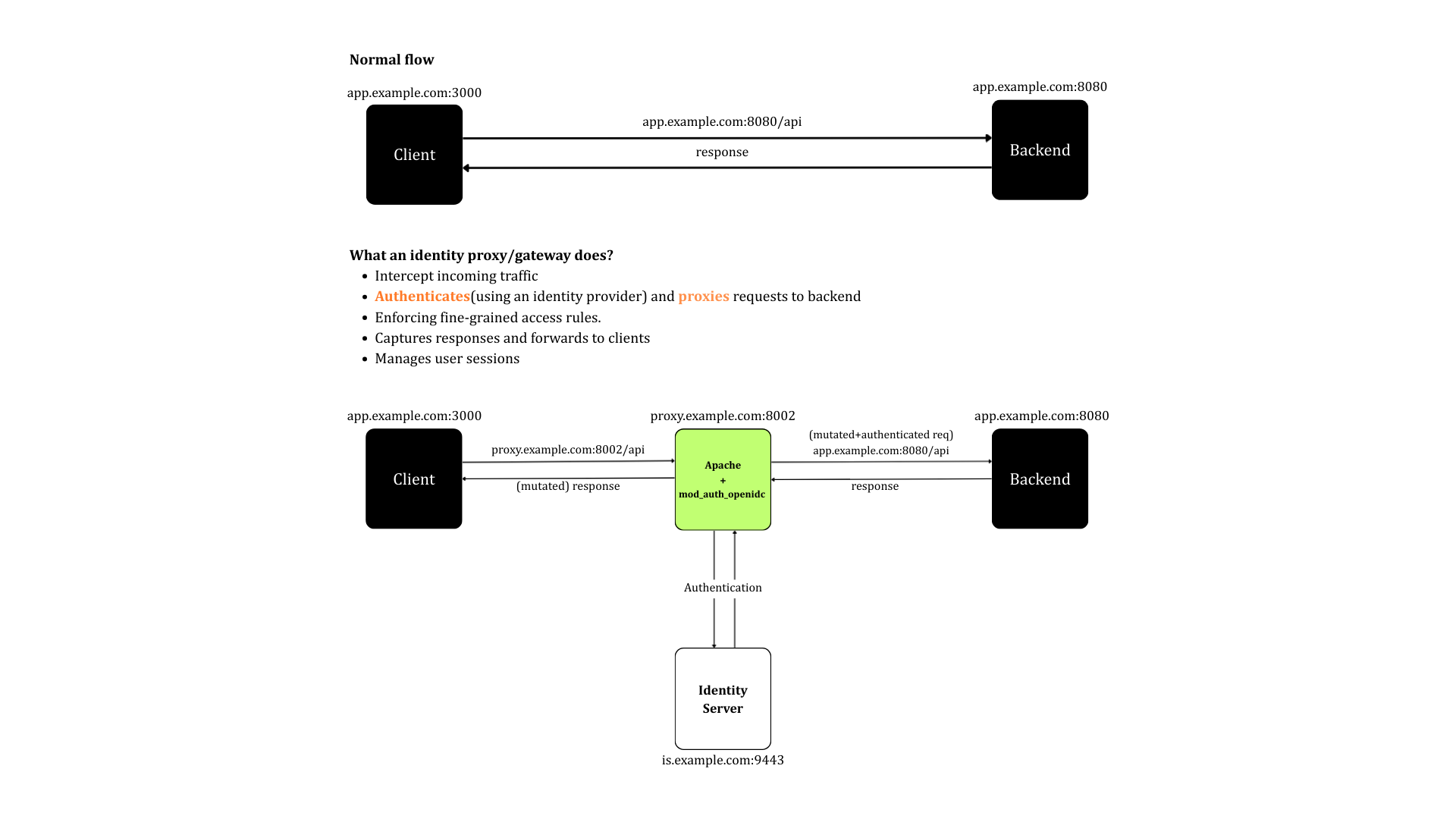

mod_auth_openidc is an Apache HTTP Server module that provides OpenID Connect authentication. It acts as a reverse proxy that authenticates users via an external OIDC provider (like WSO2 Identity Server) and forwards identity information to your back-end app via HTTP headers. This guide explains how you can connect WSO2 Identity Server with mod_auth_openidc.

Prerequisites¶

A package manager (for example apt, yum, Homebrew) to install Apache HTTPD.
An application with a back-end. If you don't have one, you can use this sample application.

Step 1: Install and run WSO2 Identity Server¶

Follow the following steps below to download and install WSO2 Identity Server. Refer to the quick setup to learn more.

Download the latest WSO2 Identity Server version from the website.

Unzip the archive using the following command:

unzip wso2is-<version>.zip
# Replace <version> with your downloaded version, e.g., wso2is-7.1.0

Start the server:

Linux/macOSWindows

cd path/to/wso2is-<version>/bin
./wso2server.sh

cd path/to/wso2is-<version>/bin
wso2server.bat

You can access the WSO2 Identity Server Console by visiting the following URL and providing the default credentials of admin, admin.
```
https://localhost:9443
```

Step 2: Create an OIDC application¶

To connect your mod_auth_openidc Apache HTTPD module to WSO2 Identity Server, you need to register it as an application. To do so,

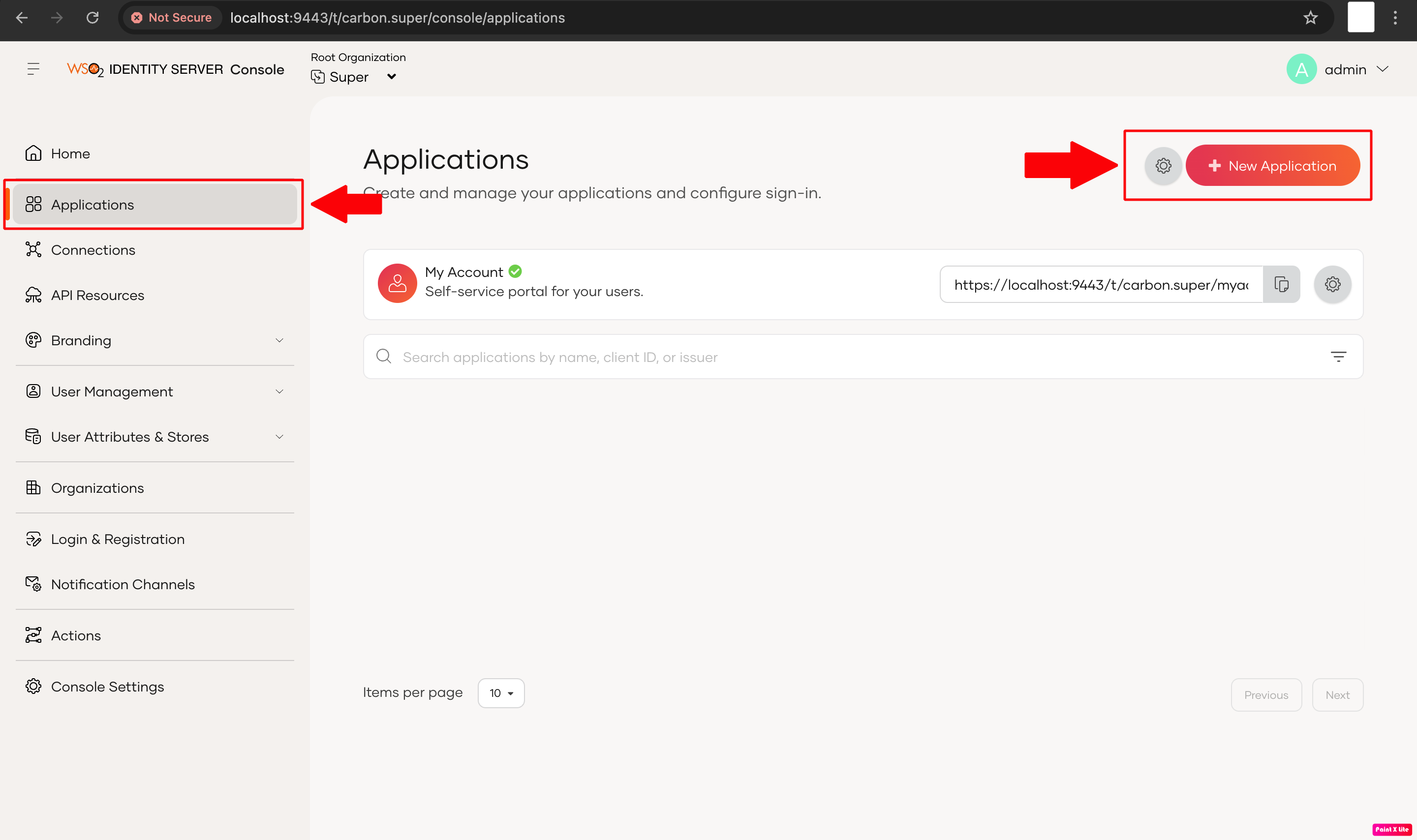

On the WSO2 Identity Server Console, go to Applications > New Application.

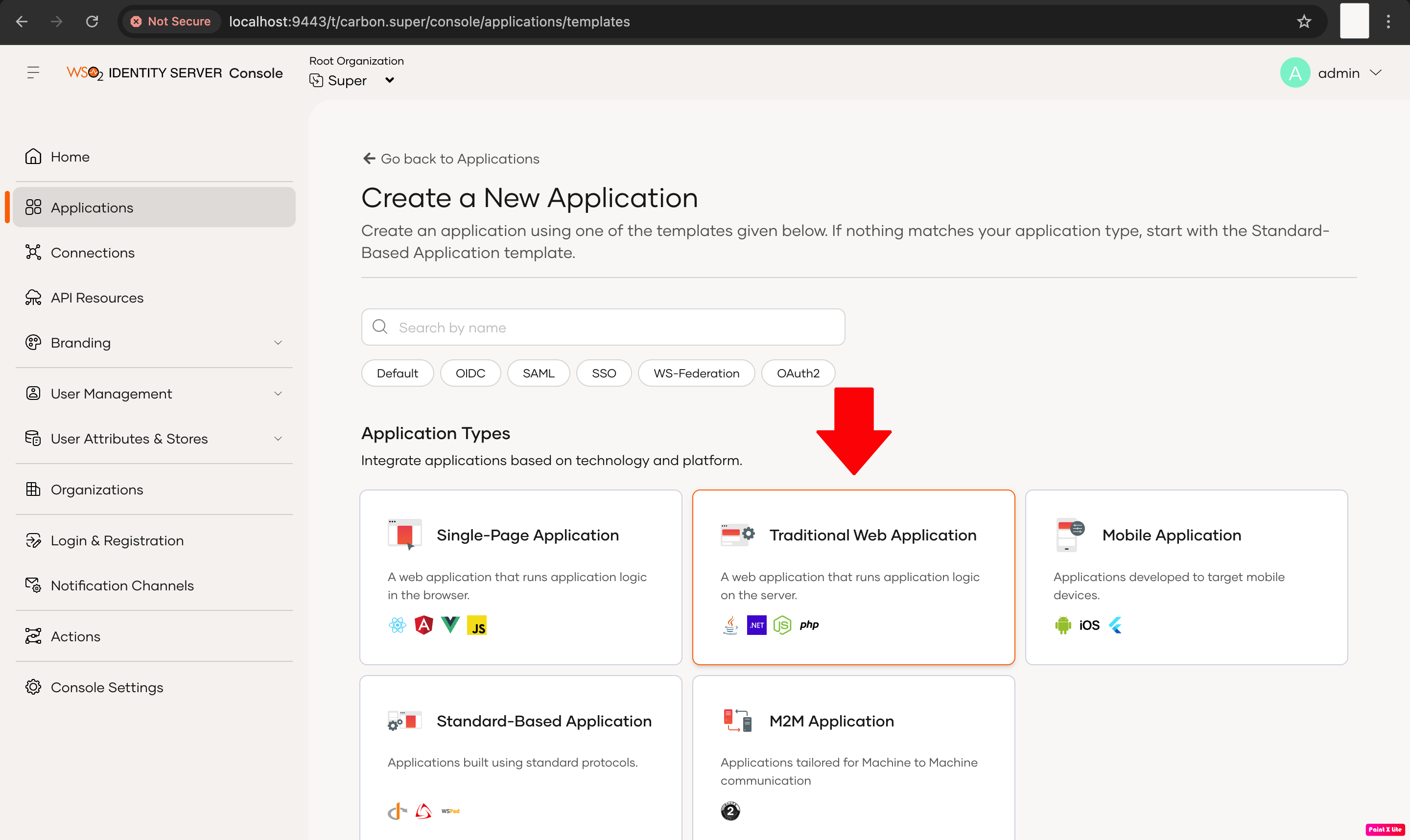

Select Traditional Web Application.

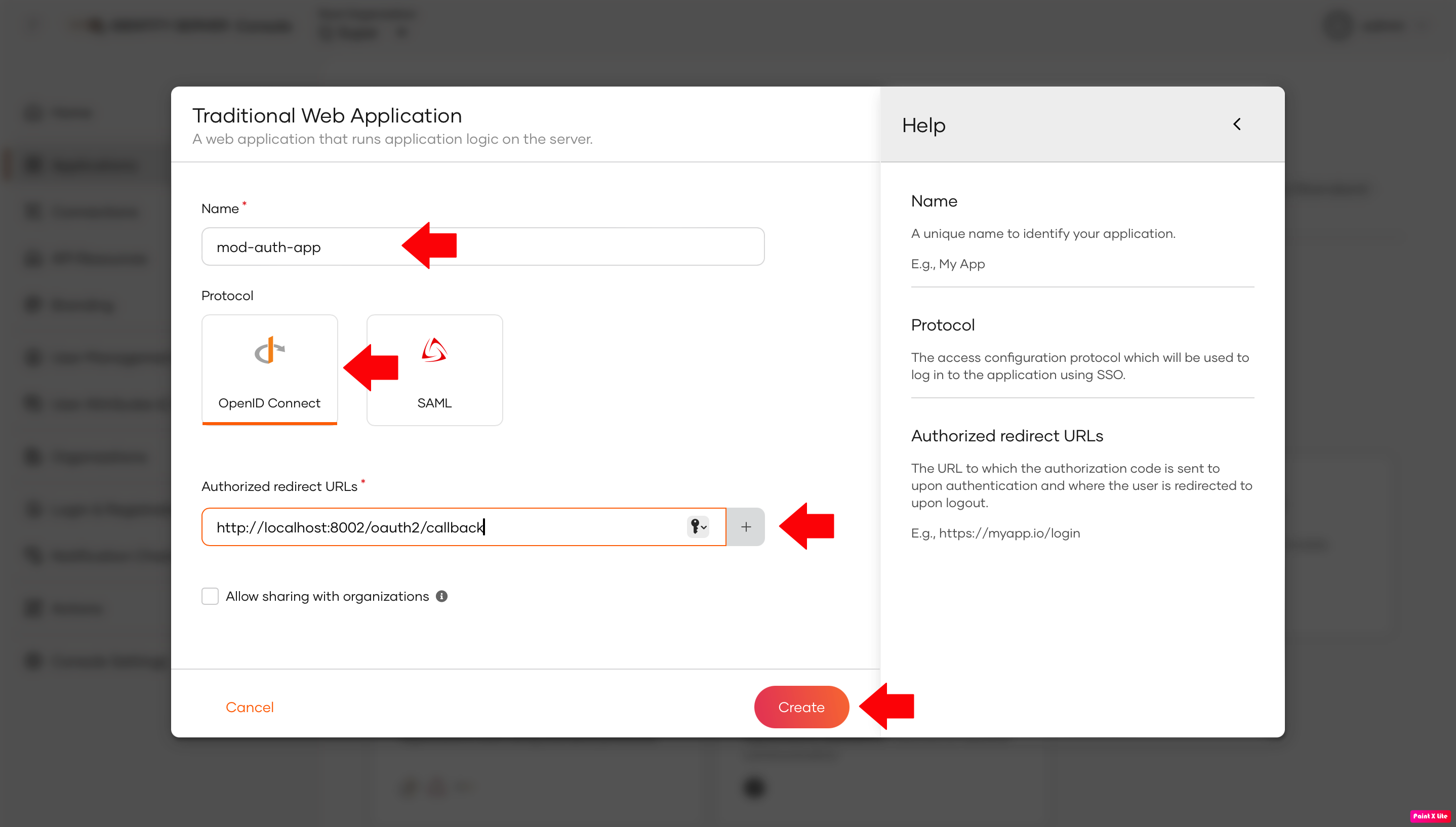

Enter the following details and click Create.
- Name - mod-auth-app
- Protocol - Select OpenID Connect
- Callback URL -The URL where WSO2 Identity Server sends the authentication response after login. For example: http://localhost:8002/oauth2/callback (or your proxy callback URL)

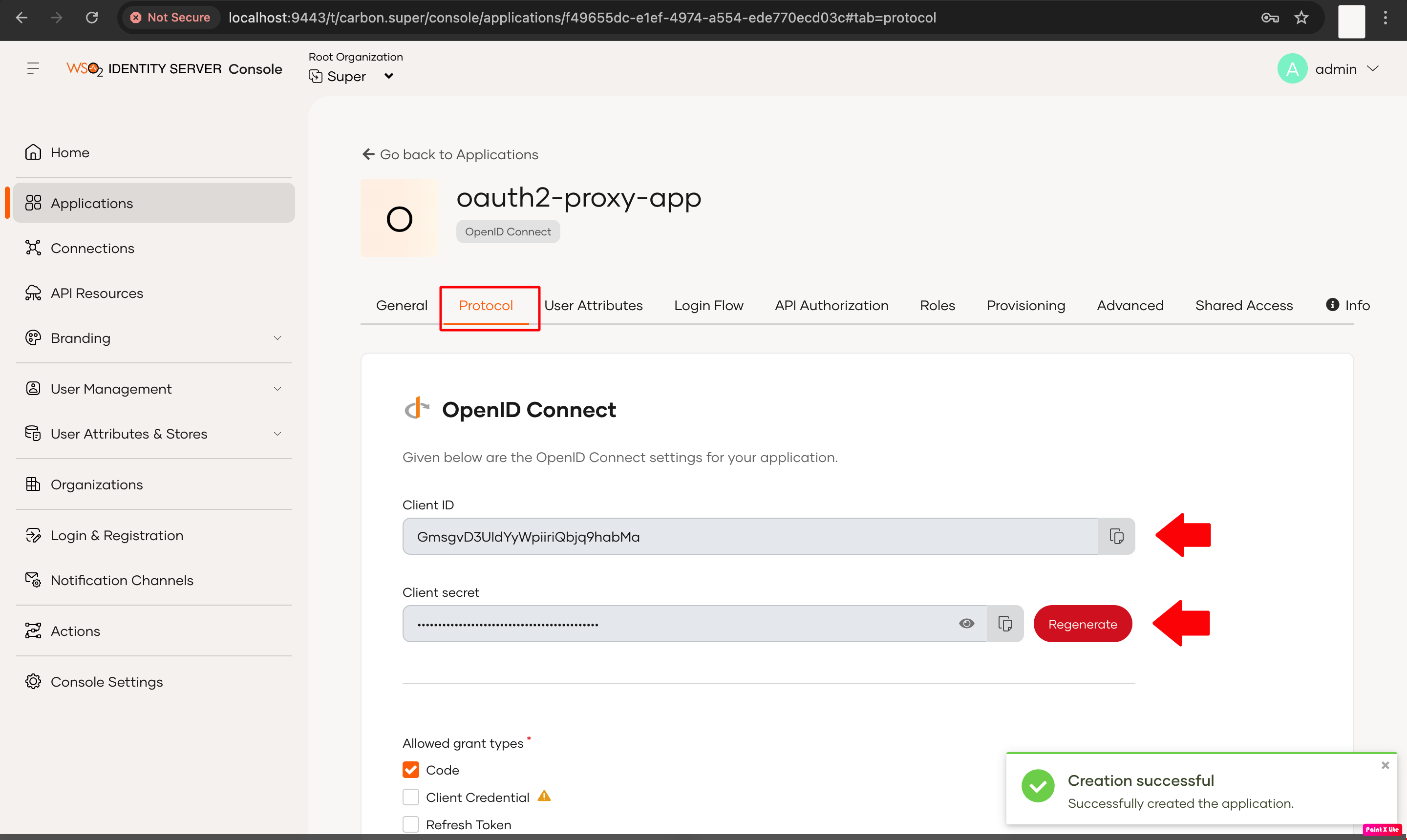

Take note of the Client ID and Client Secret generated for your application.

Step 3: (Optional) Set up sample application¶

If you have your own application, you can skip this step. If you want to use the sample Java application, follow the steps below to set it up.

Download the sample application.

Use the following command to run the application.

cd path/to/app/folder
java -jar request-logger.jar

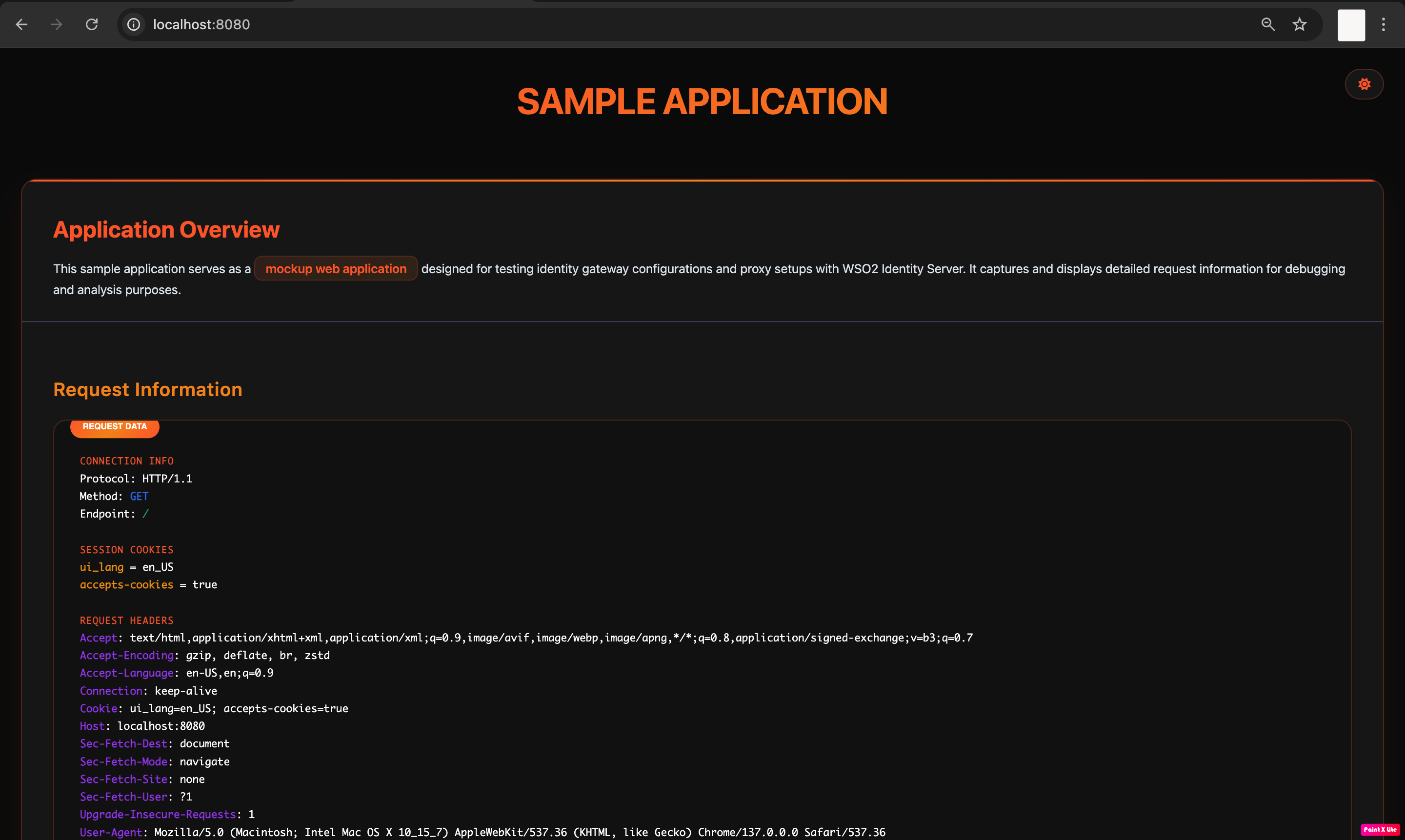

Go to http://localhost:8080 and verify that the application works.

Step 4: Install Apache and mod_auth_openidc¶

Follow the steps below to install Apache httpd and the required dependencies.

Note

The commands below assume a macOS environment. Use the corresponding package manager in your environment for installations. To learn more, refer to the Apache httpd documentation.

Install Apache httpd if you don't have it already.
```
brew install httpd
```
Install the following dependencies required by mod_auth_openidc.
```
brew install jansson cjose libcurl
```

Clone and build mod_auth_openidc.

git clone https://github.com/zmartzone/mod_auth_openidc.git
cd mod_auth_openidc
./autogen.sh
./configure --with-apxs=$(which apxs)
make
make install

Troubleshoot build errors

Homebrew may install dependencies in non-standard locations, which can cause the installation to fail.

If the ./configure --with-apxs=$(which apxs) command fails, try specifying the exact paths to the dependencies:

./configure --with-apxs2=/opt/homebrew/bin/apxs \
    --with-openssl=/opt/homebrew/opt/openssl@3 \
    --with-jansson=/opt/homebrew/opt/jansson \
    --with-cjose=/opt/homebrew/opt/cjose
make
make install

After building, the .so module should appear in /opt/homebrew/lib/httpd/modules/mod_auth_openidc.so.

Step 5: Configure Apache to use mod_auth_openidc with WSO2 Identity Server¶

The following steps explain how to configure mod_auth_openidc to act as a reverse proxy and authenticate users via WSO2 Identity Server.

Open your Apache configuration file at /opt/homebrew/etc/httpd/httpd.conf and add the following line to load the mod_auth_openidc module
```
LoadModule auth_openidc_module /path/to/mod_auth_openidc.so
```
Tip

Load this module only once to avoid conflicts.

Create a new file at /opt/homebrew/etc/httpd/extra/httpd-oidc.conf and add the following content. This file will contain the VirtualHost configuration for OIDC authentication.

Listen 8002
<VirtualHost *:8002>
    ServerName localhost

    OIDCCryptoPassphrase a-random-secret-value

    OIDCProviderMetadataURL https://localhost:9443/oauth2/oidcdiscovery/.well-known/openid-configuration

    OIDCClientID YOUR_CLIENT_ID
    OIDCClientSecret YOUR_CLIENT_SECRET
    OIDCRedirectURI http://localhost:8002/callback

    OIDCRemoteUserClaim sub
    OIDCSSLValidateServer Off

    ProxyPass / http://localhost:8080/
    ProxyPassReverse / http://localhost:8080/

    <Location />
        AuthType openid-connect
        Require valid-user
    </Location>
</VirtualHost>

Note

Replace YOUR_CLIENT_ID and YOUR_CLIENT_SECRET with the client ID and the client secret you received earlier when registering the application in WSO2 Identity Server.
This sample configuration file assumes that the following services run on the specified ports. If your setup differs, adjust the configuration accordingly.
- WSO2 Identity Server: https://localhost:9443
- Apache with mod_auth_openidc: http://localhost:8002
- Back-end Service (API or Web application): http://localhost:8080

Open the Apache configuration file at /opt/homebrew/etc/httpd/httpd.conf and include the following line to include the VirtualHost configuration file you created above.
```
Include /opt/homebrew/etc/httpd/extra/httpd-oidc.conf
```
Start Apache.
```
sudo apachectl restart
```

Try it out¶

Now that you’ve set up WSO2 Identity Server, the sample application (or your own), and mod_auth_openidc Apache HTTPD module, follow the steps below to test them in action.

Log in to your app through the Apache server by visiting http://localhost:8002. You will be redirected to the login page of WSO2 Identity Server.
Log in with an existing user.

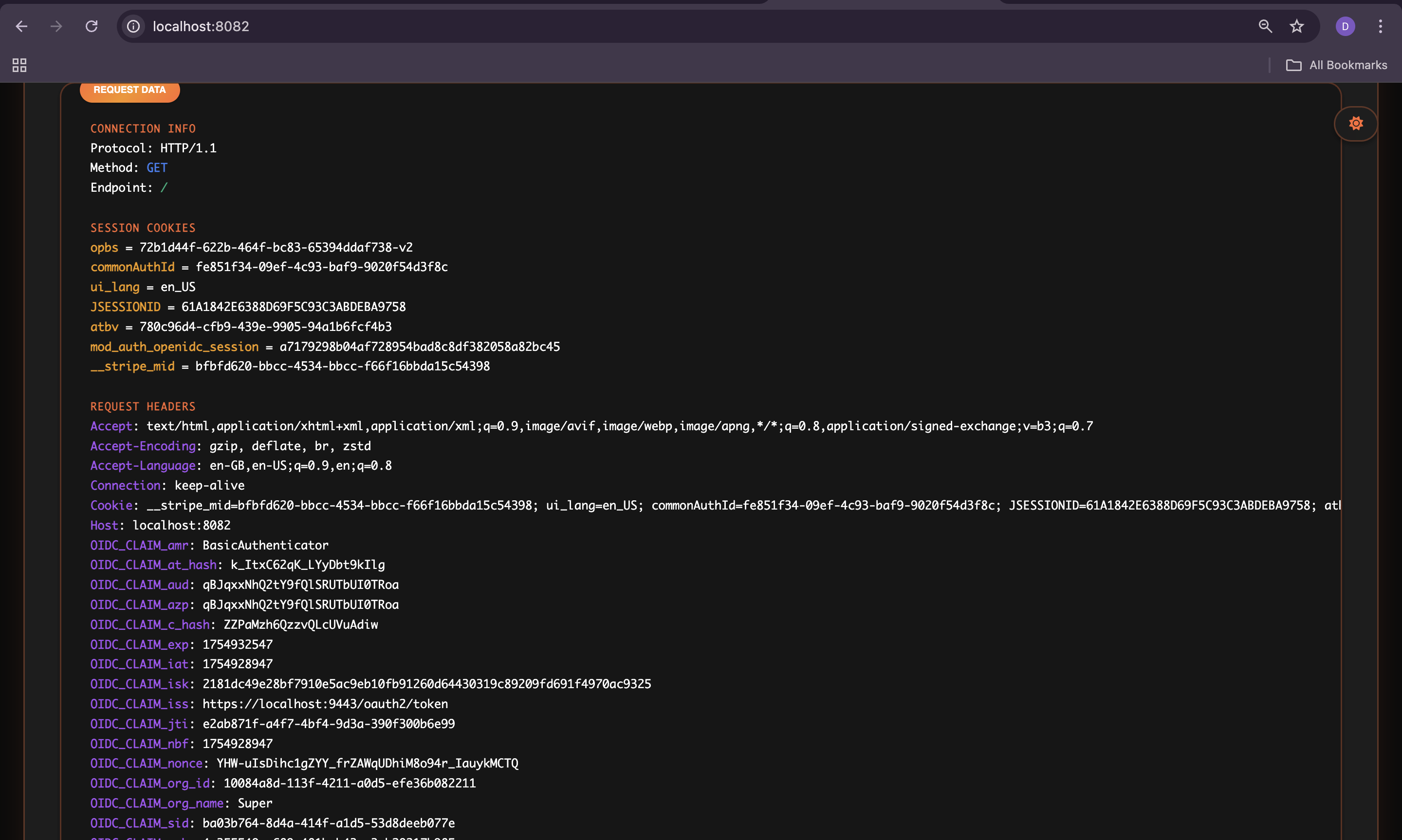

After successfully logging in, the mod_auth_openidc module automatically injects OIDC claims into HTTP headers for your back-end application. You can access user information through headers like:
- OIDC_CLAIM_sub: User identifier
- OIDC_CLAIM_org_name: Organization name
- OIDC_access_token: Access token
- OIDC_id_token: ID token
Tip

Include these configurations in your httpd-oidc.conf VirtualHost file to control which claims mod_auth_openidc forwards to the application.
```
OIDCRemoteUserClaim sub
OIDCClaimPrefix "OIDC_CLAIM_"
OIDCClaimDelimiter "_"
```
Learn more about these configurations in the Apache documentation.

Advanced configurations¶

You can enhance the integration between WSO2 Identity Server and mod_auth_openidc with the following advanced options.

Encrypt connections with TLS¶

To encrypt communication between clients and mod_auth_openidc, you can enable TLS. To do so, add the following to your httpd-oidc.conf VirtualHost configuration file:

<VirtualHost *:443>
    SSLEngine on
    SSLCertificateFile /path/to/cert.pem
    SSLCertificateKeyFile /path/to/cert.key

    # ... rest of your OIDC configurations
</VirtualHost>

Configure sessions handling¶

To manage user sessions for mod_auth_openidc, add the following directives to your httpd-oidc.conf VirtualHost configuration:

OIDCSessionInactivityTimeout 3600
OIDCSessionMaxDuration 86400
OIDCCookieHTTPOnly On
OIDCCookieSecure Off  # Set to On for production HTTPS

Learn more about these configurations in the Apache documentation.

Now that you’ve successfully connected WSO2 Identity Server with mod_auth_openidc module, you can leverage this integration to:

Add authentication to applications that lack native OIDC support.
Replace custom or insecure authentication methods.
Centralize and simplify authentication logic.

This setup secures dashboards, microservices, and legacy apps, improving stack security, scalability, and maintainability.
