Token Persistence¶

This guide describes OAuth2 token persistence and the possible approaches you can follow for token persistence in a production environment. The OAuth2 component in the WSO2 Identity Server (WSO2 IS) has two implementations that can be used to handle token persistence in the database (synchronous and asynchronous token persistence).

The following sections guide you through the differences between these two approaches and how to configure them.

Synchronous token persistence¶

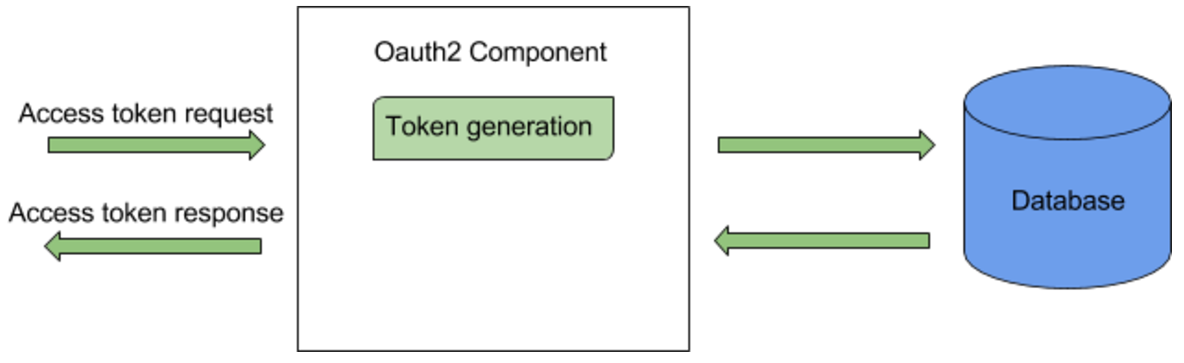

The flow of synchronous token persistence is as follows:

The client sends an access token request.
The OAuth2 component in WSO2 IS checks for an existing active access token for the given client/user/scope. First, it checks the cache and if an active token is not found, then checks the database.
If an active access token is found, the token is returned to the client.
Alternatively, if an existing access token is not found, the OAuth2 component creates a new access token and persists it in the database using the same thread. Once it is persisted, the new token is returned to the client.

Synchronous token persistence configurations

By default synchronous token persistence is enabled in WSO2 Identity Server 5.9.0 onwards. To indicate the number of times to retry in the event of a CONN_APP_KEY violation when storing the access token, navigate to file <IS_HOME>/repository/conf/deployment.toml and add the following configuration.

[oauth.token_generation]
"retry_count_on_persistence_failures"=5

Asynchronous token persistence¶

If an existing access token is not found, the OAuth2 component creates a new access token and adds it to a persisting queue. Once the token is added to the queue, the token is returned to the client There are background threads that consume the queue, and persist the tokens in the queue to the database.

Going Forward

Previously, WSO2 recommended asynchronous token persistence for certain scenarios. However, we have empirically found out that synchronous token persistence has a better overall performance in general. Hence, asynchronous token persistence is not supported from WSO2 Identity Server 5.9.0 onwards.

Recovery flow for token persistence¶

This section explains the recovery flow triggered in the WSO2 Identity Server for exceptional cases that may occur in a production environment caused by the client application mishandling the CON_APP_KEY constraint that is explained below.

CONN_APP_KEY constraint¶

For a given set of consumer key, user, and scope values, there can be only one ACTIVE access token. The CON_APP_KEY constraint in the IDN_OAUTH2_ACCESS_TOKEN table enforces this by allowing only one active access token for a given set of consumer key, user, and scope values. This constraint may be violated in a scenario where two or more identical token requests come from the same application.

The above scenario is unlikely because in practice, an application is usually designed to handle this situation using scopes, or in the case of a multithreaded client, there is usually a separate thread to acquire access tokens so that other threads can retrieve from it.

Synchronous token persistence recovery¶

The flow of the synchronous token persistence when receiving two identical access token requests is as follows:

The client sends an access token request.
The OAuth2 component in both nodes of WSO2 IS checks for an existing active access token for the given client/user/scope. Both nodes first check the cache and if an active token is not found, the database is checked.
Alternatively, if an existing access token is not found, the OAuth2 component in both nodes creates a new access token and persists the access token to the database using the same thread.
One of the nodes will persist the token successfully and return it to the client but the other node will receive an error due to the violation of the CON_APP_KEY constraint.

The recovery flow¶

The process flow now moves on to the recovery flow described above to handle the CON_APP_KEY constraint violation and is executed as follows:

Since the same thread is being used, the OAuth2 component in the second node checks the database again for an ACTIVE access token.
Since there is now an ACTIVE token that was persisted by the first node, the second node now returns the access token persisted by the first node to the client.
Both access token requests receive the same access token.

Optimizing JWT access token persistence¶

By default, JWT access token generation or validation triggers interactions with the database. JWT access token persistence differs from opaque token persistence, where an existing active token is retrieved during a token request. The issuer always issues a new JWT access token. The following sections explain how to optimize the default JWT persistence in Identity Server using non-persistent access tokens.

Why optimize JWT access token persistence?¶

In large-scale WSO2 Identity Server deployments, especially with millions of users and high concurrency, the number of tokens stored in the database can grow quickly, making it harder to scale. This can lead to reduced performance and lower Transactions Per Second (TPS) for token generation. To address this, token persistence optimization helps by not storing access tokens. This approach avoids storing access tokens during generation while still supporting essential features like token revocation and refresh grants, improving scalability and performance.

Reduce database queries during token request: When a token is issued, both the access token and refresh token will no longer be stored in the IDN_OAUTH2_ACCESS_TOKEN table (if both access token persistence and refresh token persistence are disabled). As a result, authorization grants like Client Credentials, which do not issue a refresh token, will experience improved throughput due to the reduction in database query overhead.
Efficient database storage: When tokens are stored in the persistent access token mode, new entries are added to the database with each token request, even if the same refresh token is used. However, with the non-persistent access token feature enabled, only the refresh token is stored (if refresh token persistence is enabled). If the current refresh token is still valid for the grant, no additional database rows will be added during token requests, leading to more efficient database storage.
Improved token validation: With the non-persistent access token feature enabled, revoked tokens can be stored in the database. However, deployments have the option to opt out of storing revoked tokens and can instead listen for revoked token events, providing greater flexibility in token management. This approach is particularly beneficial when the Identity Server acts as a Key Manager for WSO2 API Manager, as the Gateway can self-validate JWTs without additional hops to the Key Manager, improving performance and reducing latency.

Things to consider when using JWT access token persistence optimization¶

This mode is particularly suitable for the following scenarios:
When most token requests are based on authorization grants such as Client Credentials, which do not issue a refresh token.
When Refresh Token Grants are configured without refresh token rotation, reducing the need for persistent token tracking.
The token persistence optimization feature works only with JWT access tokens, as they can be self-validated.
When enabling this feature in an existing setup:
Opaque token generation will continue to work as expected for applications configured to use opaque tokens.
Applications configured for JWT access token type will be switched to non-persistent access token mode, meaning JWT access tokens will no longer be stored in the database.
In the case of persistent token storage, if an active access token already exists during the token generation flow, the existing token will be marked as inactive. However, in the non-persistent mode, multiple active tokens can exist, as the authorization server does not store the access tokens.
Token binding, Retrieving authorized apps for user,Rich Authorization Details, and OIDC Request Object features are currently not supported in non-persistent access token mode.
Actions like revoking issued access tokens when re-submitting an authorization code and revoking all issued access tokens when revoking refresh tokens are also not supported, because the Identity Server does not store access tokens in this mode.
In non-persistent mode, the cleanup deletes the selected entries; they are not moved to an audit table as in the persistent case.
Following are the additional claims that will be added to the JWT access token for internal references.

Claims	Description
`entity_id`	Unique identifier for the subject within the system. - For application: Client Id. - For Users from unique Id user store: User Unique Id. - For Users from non-unique Id user store: Username with userstore domain and tenant domain. - For non-JIT provisioned federated Users: Session Id.
`entityType`	Type of entity id. - For application: CLIENT_ID. - For Users from unique Id user store: USER_ID. - For Users from non-unique Id user store: USER_NAME.
`is_federated`	Flag to show whether the user is federated or not.
`token_id`	Token ID for internal reference.
`is_consented`	Flag to show whether the user has consented to share claims.
`grantType`	Grant type.
`accessing_organization`	Organization ID of the application (SaaS scenarios).

Enable JWT access token persistence optimization¶

Database schema additions

Before enabling non-persistent access tokens in an existing WSO2 Identity Server 7.2.0 deployment, apply the database schema additions for your database type. These schema changes are required for token revocation, refresh-token persistence, and cleanup flows.

If you use both non-persistent access tokens and non-persistent refresh tokens, the following tables are sufficient:

IDN_OAUTH2_REVOKED_TOKENS
IDN_SUBJECT_ENTITY_REVOKED_EVENT

If you keep refresh tokens persistent, such as for long-living refresh tokens with refresh token rotation, add the refresh-token tables as well:

IDN_OAUTH2_REFRESH_TOKEN
IDN_OAUTH2_REFRESH_TOKEN_SCOPE
IDN_OAUTH2_REVOKED_TOKENS
IDN_SUBJECT_ENTITY_REVOKED_EVENT

The schema additions also include the following indexes:

IDX_TOKEN_CONSUMER on IDN_OAUTH2_REVOKED_TOKENS
IDX_ENTITY_TIME_REVOKED on IDN_SUBJECT_ENTITY_REVOKED_EVENT
IDX_REFRESH_TOKEN_HASH on IDN_OAUTH2_REFRESH_TOKEN
IDX_AUTHZ_USER_TENANT_DOMAIN_STATE on IDN_OAUTH2_REFRESH_TOKEN
IDX_CONSUMER_KEY_STATE on IDN_OAUTH2_REFRESH_TOKEN
IDX_CONSUMER_USER_SCOPE_IDP on IDN_OAUTH2_REFRESH_TOKEN

Use the database-specific DDL for your database engine: H2, MySQL, MySQL Cluster, PostgreSQL, Microsoft SQL Server, DB2, Oracle, or Oracle RAC. For Oracle deployments, use the non-persistent access token cleanup stored procedure when configuring stored-procedure-based cleanup.

Add the following tables to the IDENTITY_DB.

H2

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REFRESH_TOKEN (
    REFRESH_TOKEN_ID VARCHAR (255),
    REFRESH_TOKEN VARCHAR(2048),
    CONSUMER_KEY_ID INTEGER,
    AUTHZ_USER VARCHAR (100),
    TENANT_ID INTEGER,
    USER_DOMAIN VARCHAR(50),
    GRANT_TYPE VARCHAR (50),
    REFRESH_TOKEN_TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    REFRESH_TOKEN_VALIDITY_PERIOD BIGINT,
    TOKEN_SCOPE_HASH VARCHAR(32),
    TOKEN_STATE VARCHAR(25) DEFAULT 'ACTIVE',
    SUBJECT_IDENTIFIER VARCHAR(255),
    REFRESH_TOKEN_HASH VARCHAR(512),
    IDP_ID INTEGER DEFAULT -1 NOT NULL,
    CONSENTED_TOKEN VARCHAR(6),
    AUTHORIZED_ORGANIZATION VARCHAR(36) DEFAULT 'NONE' NOT NULL,
    PRIMARY KEY (REFRESH_TOKEN_ID),
    FOREIGN KEY (CONSUMER_KEY_ID) REFERENCES IDN_OAUTH_CONSUMER_APPS(ID) ON DELETE CASCADE
);

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REFRESH_TOKEN_SCOPE (
    REFRESH_TOKEN_ID VARCHAR (255),
    TOKEN_SCOPE VARCHAR (255),
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (REFRESH_TOKEN_ID, TOKEN_SCOPE),
    FOREIGN KEY (REFRESH_TOKEN_ID) REFERENCES IDN_OAUTH2_REFRESH_TOKEN(REFRESH_TOKEN_ID) ON DELETE CASCADE
);

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REVOKED_TOKENS (
    UUID VARCHAR(255) NOT NULL,
    TOKEN_IDENTIFIER VARCHAR(2048) NOT NULL,
    CONSUMER_KEY VARCHAR(255) NOT NULL,
    TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    EXPIRY_TIMESTAMP TIMESTAMP NOT NULL,
    PRIMARY KEY (UUID)
);

CREATE TABLE IF NOT EXISTS IDN_SUBJECT_ENTITY_REVOKED_EVENT (
    EVENT_ID VARCHAR(255) NOT NULL,
    ENTITY_ID VARCHAR(255) NOT NULL,
    ENTITY_TYPE VARCHAR(100) NOT NULL,
    TIME_REVOKED TIMESTAMP NOT NULL,
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (EVENT_ID),
    CONSTRAINT IDN_SUBJECT_ENTITY_REVOKED_EVENT_CONSTRAINT UNIQUE (ENTITY_ID, ENTITY_TYPE, TENANT_ID)
);

-- NON PERSISTENT ACCESS TOKEN INDEXES --

CREATE INDEX IDX_TOKEN_CONSUMER ON IDN_OAUTH2_REVOKED_TOKENS (TOKEN_IDENTIFIER, CONSUMER_KEY);
CREATE INDEX IDX_ENTITY_TIME_REVOKED ON IDN_SUBJECT_ENTITY_REVOKED_EVENT (ENTITY_ID, TIME_REVOKED);
CREATE INDEX IDX_REFRESH_TOKEN_HASH ON IDN_OAUTH2_REFRESH_TOKEN (REFRESH_TOKEN_HASH);
CREATE INDEX IDX_AUTHZ_USER_TENANT_DOMAIN_STATE ON IDN_OAUTH2_REFRESH_TOKEN (AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_KEY_STATE ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_USER_SCOPE_IDP ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_SCOPE_HASH, TOKEN_STATE, IDP_ID);

MySQL

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REFRESH_TOKEN (
    REFRESH_TOKEN_ID VARCHAR (255),
    REFRESH_TOKEN VARCHAR(2048),
    CONSUMER_KEY_ID INTEGER,
    AUTHZ_USER VARCHAR (100),
    TENANT_ID INTEGER,
    USER_DOMAIN VARCHAR(50),
    GRANT_TYPE VARCHAR (50),
    REFRESH_TOKEN_TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    REFRESH_TOKEN_VALIDITY_PERIOD BIGINT,
    TOKEN_SCOPE_HASH VARCHAR(32),
    TOKEN_STATE VARCHAR(25) DEFAULT 'ACTIVE',
    SUBJECT_IDENTIFIER VARCHAR(255),
    REFRESH_TOKEN_HASH VARCHAR(512),
    IDP_ID INTEGER DEFAULT -1 NOT NULL,
    CONSENTED_TOKEN VARCHAR(6),
    AUTHORIZED_ORGANIZATION VARCHAR(36) DEFAULT 'NONE' NOT NULL,
    PRIMARY KEY (REFRESH_TOKEN_ID),
    FOREIGN KEY (CONSUMER_KEY_ID) REFERENCES IDN_OAUTH_CONSUMER_APPS(ID) ON DELETE CASCADE
)ENGINE INNODB;

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REFRESH_TOKEN_SCOPE (
    REFRESH_TOKEN_ID VARCHAR (255),
    TOKEN_SCOPE VARCHAR (255),
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (REFRESH_TOKEN_ID, TOKEN_SCOPE),
    FOREIGN KEY (REFRESH_TOKEN_ID) REFERENCES IDN_OAUTH2_REFRESH_TOKEN(REFRESH_TOKEN_ID) ON DELETE CASCADE
)ENGINE INNODB;

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REVOKED_TOKENS (
    UUID VARCHAR(255) NOT NULL,
    TOKEN_IDENTIFIER VARCHAR(2048) NOT NULL,
    CONSUMER_KEY VARCHAR(255) NOT NULL,
    TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    EXPIRY_TIMESTAMP TIMESTAMP NOT NULL,
    PRIMARY KEY (UUID)
)ENGINE=InnoDB;

CREATE TABLE IF NOT EXISTS IDN_SUBJECT_ENTITY_REVOKED_EVENT (
    EVENT_ID VARCHAR(255) NOT NULL,
    ENTITY_ID VARCHAR(255) NOT NULL,
    ENTITY_TYPE VARCHAR(100) NOT NULL,
    TIME_REVOKED TIMESTAMP NOT NULL,
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (EVENT_ID),
    CONSTRAINT IDN_SUBJECT_ENTITY_REVOKED_EVENT_CONSTRAINT UNIQUE (ENTITY_ID, ENTITY_TYPE, TENANT_ID)
)ENGINE=InnoDB;

-- NON PERSISTENT ACCESS TOKEN INDEXES --

CREATE INDEX IDX_TOKEN_CONSUMER ON IDN_OAUTH2_REVOKED_TOKENS (TOKEN_IDENTIFIER, CONSUMER_KEY);
CREATE INDEX IDX_ENTITY_TIME_REVOKED ON IDN_SUBJECT_ENTITY_REVOKED_EVENT (ENTITY_ID, TIME_REVOKED);
CREATE INDEX IDX_REFRESH_TOKEN_HASH ON IDN_OAUTH2_REFRESH_TOKEN (REFRESH_TOKEN_HASH);
CREATE INDEX IDX_AUTHZ_USER_TENANT_DOMAIN_STATE ON IDN_OAUTH2_REFRESH_TOKEN (AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_KEY_STATE ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_USER_SCOPE_IDP ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_SCOPE_HASH, TOKEN_STATE, IDP_ID);

MySQL Cluster

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REFRESH_TOKEN (
    REFRESH_TOKEN_ID VARCHAR (255),
    REFRESH_TOKEN VARCHAR(2048),
    CONSUMER_KEY_ID INTEGER,
    AUTHZ_USER VARCHAR (100),
    TENANT_ID INTEGER,
    USER_DOMAIN VARCHAR(50),
    GRANT_TYPE VARCHAR (50),
    REFRESH_TOKEN_TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    REFRESH_TOKEN_VALIDITY_PERIOD BIGINT,
    TOKEN_SCOPE_HASH VARCHAR(32),
    TOKEN_STATE VARCHAR(25) DEFAULT 'ACTIVE',
    SUBJECT_IDENTIFIER VARCHAR(255),
    REFRESH_TOKEN_HASH VARCHAR(512),
    IDP_ID INTEGER DEFAULT -1 NOT NULL,
    CONSENTED_TOKEN VARCHAR(6),
    AUTHORIZED_ORGANIZATION VARCHAR(36) DEFAULT 'NONE' NOT NULL,
    PRIMARY KEY (REFRESH_TOKEN_ID),
    FOREIGN KEY (CONSUMER_KEY_ID) REFERENCES IDN_OAUTH_CONSUMER_APPS(ID) ON DELETE CASCADE
)ENGINE NDB;

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REFRESH_TOKEN_SCOPE (
    REFRESH_TOKEN_ID VARCHAR (255),
    TOKEN_SCOPE VARCHAR (255),
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (REFRESH_TOKEN_ID, TOKEN_SCOPE),
    FOREIGN KEY (REFRESH_TOKEN_ID) REFERENCES IDN_OAUTH2_REFRESH_TOKEN(REFRESH_TOKEN_ID) ON DELETE CASCADE
)ENGINE NDB;

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REVOKED_TOKENS (
    UUID VARCHAR(255) NOT NULL,
    TOKEN_IDENTIFIER VARCHAR(2048) NOT NULL,
    CONSUMER_KEY VARCHAR(255) NOT NULL,
    TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    EXPIRY_TIMESTAMP TIMESTAMP NOT NULL,
    PRIMARY KEY (UUID)
)ENGINE NDB;

CREATE TABLE IF NOT EXISTS IDN_SUBJECT_ENTITY_REVOKED_EVENT (
    EVENT_ID VARCHAR(255) NOT NULL,
    ENTITY_ID VARCHAR(255) NOT NULL,
    ENTITY_TYPE VARCHAR(100) NOT NULL,
    TIME_REVOKED TIMESTAMP NOT NULL,
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (EVENT_ID),
    CONSTRAINT IDN_SUBJECT_ENTITY_REVOKED_EVENT_CONSTRAINT UNIQUE (ENTITY_ID, ENTITY_TYPE, TENANT_ID)
)ENGINE NDB;

-- NON PERSISTENT ACCESS TOKEN INDEXES --

CREATE INDEX IDX_TOKEN_CONSUMER ON IDN_OAUTH2_REVOKED_TOKENS (TOKEN_IDENTIFIER, CONSUMER_KEY);
CREATE INDEX IDX_ENTITY_TIME_REVOKED ON IDN_SUBJECT_ENTITY_REVOKED_EVENT (ENTITY_ID, TIME_REVOKED);
CREATE INDEX IDX_REFRESH_TOKEN_HASH ON IDN_OAUTH2_REFRESH_TOKEN (REFRESH_TOKEN_HASH);
CREATE INDEX IDX_AUTHZ_USER_TENANT_DOMAIN_STATE ON IDN_OAUTH2_REFRESH_TOKEN (AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_KEY_STATE ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_USER_SCOPE_IDP ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_SCOPE_HASH, TOKEN_STATE, IDP_ID);

PostgreSQL

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REFRESH_TOKEN (
    REFRESH_TOKEN_ID VARCHAR (255),
    REFRESH_TOKEN VARCHAR(2048),
    CONSUMER_KEY_ID INTEGER,
    AUTHZ_USER VARCHAR (100),
    TENANT_ID INTEGER,
    USER_DOMAIN VARCHAR(50),
    GRANT_TYPE VARCHAR (50),
    REFRESH_TOKEN_TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    REFRESH_TOKEN_VALIDITY_PERIOD BIGINT,
    TOKEN_SCOPE_HASH VARCHAR(32),
    TOKEN_STATE VARCHAR(25) DEFAULT 'ACTIVE',
    SUBJECT_IDENTIFIER VARCHAR(255),
    REFRESH_TOKEN_HASH VARCHAR(512),
    IDP_ID INTEGER DEFAULT -1 NOT NULL,
    CONSENTED_TOKEN VARCHAR(6),
    AUTHORIZED_ORGANIZATION VARCHAR(36) DEFAULT 'NONE' NOT NULL,
    PRIMARY KEY (REFRESH_TOKEN_ID),
    FOREIGN KEY (CONSUMER_KEY_ID) REFERENCES IDN_OAUTH_CONSUMER_APPS(ID) ON DELETE CASCADE
);

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REFRESH_TOKEN_SCOPE (
    REFRESH_TOKEN_ID VARCHAR (255),
    TOKEN_SCOPE VARCHAR (255),
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (REFRESH_TOKEN_ID, TOKEN_SCOPE),
    FOREIGN KEY (REFRESH_TOKEN_ID) REFERENCES IDN_OAUTH2_REFRESH_TOKEN(REFRESH_TOKEN_ID) ON DELETE CASCADE
);

CREATE TABLE IF NOT EXISTS IDN_OAUTH2_REVOKED_TOKENS (
    UUID VARCHAR(255) NOT NULL,
    TOKEN_IDENTIFIER VARCHAR(2048) NOT NULL,
    CONSUMER_KEY VARCHAR(255) NOT NULL,
    TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    EXPIRY_TIMESTAMP TIMESTAMP NOT NULL,
    PRIMARY KEY (UUID)
);

CREATE TABLE IF NOT EXISTS IDN_SUBJECT_ENTITY_REVOKED_EVENT (
    EVENT_ID VARCHAR(255) NOT NULL,
    ENTITY_ID VARCHAR(255) NOT NULL,
    ENTITY_TYPE VARCHAR(100) NOT NULL,
    TIME_REVOKED TIMESTAMP NOT NULL,
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (EVENT_ID),
    CONSTRAINT IDN_SUBJECT_ENTITY_REVOKED_EVENT_CONSTRAINT UNIQUE (ENTITY_ID, ENTITY_TYPE, TENANT_ID)
);

-- NON PERSISTENT ACCESS TOKEN INDEXES --

CREATE INDEX IDX_TOKEN_CONSUMER ON IDN_OAUTH2_REVOKED_TOKENS (TOKEN_IDENTIFIER, CONSUMER_KEY);
CREATE INDEX IDX_ENTITY_TIME_REVOKED ON IDN_SUBJECT_ENTITY_REVOKED_EVENT (ENTITY_ID, TIME_REVOKED);
CREATE INDEX IDX_REFRESH_TOKEN_HASH ON IDN_OAUTH2_REFRESH_TOKEN (REFRESH_TOKEN_HASH);
CREATE INDEX IDX_AUTHZ_USER_TENANT_DOMAIN_STATE ON IDN_OAUTH2_REFRESH_TOKEN (AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_KEY_STATE ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_USER_SCOPE_IDP ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_SCOPE_HASH, TOKEN_STATE, IDP_ID);

Microsoft SQL Server

IF NOT  EXISTS (SELECT * FROM SYS.OBJECTS WHERE OBJECT_ID = OBJECT_ID(N'[DBO].[IDN_OAUTH2_REFRESH_TOKEN]') AND TYPE IN (N'U'))
CREATE TABLE IDN_OAUTH2_REFRESH_TOKEN (
    REFRESH_TOKEN_ID VARCHAR (255),
    REFRESH_TOKEN VARCHAR(2048),
    CONSUMER_KEY_ID INTEGER,
    AUTHZ_USER VARCHAR (100),
    TENANT_ID INTEGER,
    USER_DOMAIN VARCHAR(50),
    GRANT_TYPE VARCHAR (50),
    REFRESH_TOKEN_TIME_CREATED DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP,
    REFRESH_TOKEN_VALIDITY_PERIOD BIGINT,
    TOKEN_SCOPE_HASH VARCHAR(32),
    TOKEN_STATE VARCHAR(25) DEFAULT 'ACTIVE',
    SUBJECT_IDENTIFIER VARCHAR(255),
    REFRESH_TOKEN_HASH VARCHAR(512),
    IDP_ID INTEGER DEFAULT -1 NOT NULL,
    CONSENTED_TOKEN VARCHAR(6),
    AUTHORIZED_ORGANIZATION VARCHAR(36) DEFAULT 'NONE' NOT NULL,
    PRIMARY KEY (REFRESH_TOKEN_ID),
    FOREIGN KEY (CONSUMER_KEY_ID) REFERENCES IDN_OAUTH_CONSUMER_APPS(ID) ON DELETE CASCADE
);

IF NOT  EXISTS (SELECT * FROM SYS.OBJECTS WHERE OBJECT_ID = OBJECT_ID(N'[DBO].[IDN_OAUTH2_REFRESH_TOKEN_SCOPE]') AND TYPE IN (N'U'))
CREATE TABLE IDN_OAUTH2_REFRESH_TOKEN_SCOPE (
    REFRESH_TOKEN_ID VARCHAR (255),
    TOKEN_SCOPE VARCHAR (255),
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (REFRESH_TOKEN_ID, TOKEN_SCOPE),
    FOREIGN KEY (REFRESH_TOKEN_ID) REFERENCES IDN_OAUTH2_REFRESH_TOKEN(REFRESH_TOKEN_ID) ON DELETE CASCADE
);

IF NOT  EXISTS (SELECT * FROM SYS.OBJECTS WHERE OBJECT_ID = OBJECT_ID(N'[DBO].[IDN_OAUTH2_REVOKED_TOKENS]') AND TYPE IN (N'U'))
CREATE TABLE IDN_OAUTH2_REVOKED_TOKENS (
    UUID VARCHAR(255) NOT NULL,
    TOKEN_IDENTIFIER VARCHAR(2048) NOT NULL,
    CONSUMER_KEY VARCHAR(255) NOT NULL,
    TIME_CREATED DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP,
    EXPIRY_TIMESTAMP DATETIME NOT NULL,
    PRIMARY KEY (UUID)
);

IF NOT  EXISTS (SELECT * FROM SYS.OBJECTS WHERE OBJECT_ID = OBJECT_ID(N'[DBO].[IDN_SUBJECT_ENTITY_REVOKED_EVENT]') AND TYPE IN (N'U'))
CREATE TABLE IDN_SUBJECT_ENTITY_REVOKED_EVENT (
    EVENT_ID VARCHAR(255) NOT NULL,
    ENTITY_ID VARCHAR(255) NOT NULL,
    ENTITY_TYPE VARCHAR(100) NOT NULL,
    TIME_REVOKED DATETIME NOT NULL,
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (EVENT_ID),
    CONSTRAINT IDN_SUBJECT_ENTITY_REVOKED_EVENT_CONSTRAINT UNIQUE (ENTITY_ID, ENTITY_TYPE, TENANT_ID)
);

-- NON PERSISTENT ACCESS TOKEN INDEXES --

CREATE INDEX IDX_TOKEN_CONSUMER ON IDN_OAUTH2_REVOKED_TOKENS (TOKEN_IDENTIFIER, CONSUMER_KEY);
CREATE INDEX IDX_ENTITY_TIME_REVOKED ON IDN_SUBJECT_ENTITY_REVOKED_EVENT (ENTITY_ID, TIME_REVOKED);
CREATE INDEX IDX_REFRESH_TOKEN_HASH ON IDN_OAUTH2_REFRESH_TOKEN (REFRESH_TOKEN_HASH);
CREATE INDEX IDX_AUTHZ_USER_TENANT_DOMAIN_STATE ON IDN_OAUTH2_REFRESH_TOKEN (AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_KEY_STATE ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, TOKEN_STATE);
CREATE INDEX IDX_CONSUMER_USER_SCOPE_IDP ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_SCOPE_HASH, TOKEN_STATE, IDP_ID);

DB2

CREATE TABLE IDN_OAUTH2_REFRESH_TOKEN (
    REFRESH_TOKEN_ID VARCHAR (255),
    REFRESH_TOKEN VARCHAR(2048),
    CONSUMER_KEY_ID INTEGER,
    AUTHZ_USER VARCHAR (100),
    TENANT_ID INTEGER,
    USER_DOMAIN VARCHAR(50),
    GRANT_TYPE VARCHAR (50),
    REFRESH_TOKEN_TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    REFRESH_TOKEN_VALIDITY_PERIOD BIGINT,
    TOKEN_SCOPE_HASH VARCHAR(32),
    TOKEN_STATE VARCHAR(25) DEFAULT 'ACTIVE',
    SUBJECT_IDENTIFIER VARCHAR(255),
    REFRESH_TOKEN_HASH VARCHAR(512),
    IDP_ID INTEGER DEFAULT -1 NOT NULL,
    CONSENTED_TOKEN VARCHAR(6),
    AUTHORIZED_ORGANIZATION VARCHAR(36) DEFAULT 'NONE' NOT NULL,
    PRIMARY KEY (REFRESH_TOKEN_ID),
    FOREIGN KEY (CONSUMER_KEY_ID) REFERENCES IDN_OAUTH_CONSUMER_APPS(ID) ON DELETE CASCADE
)
/

CREATE TABLE IDN_OAUTH2_REFRESH_TOKEN_SCOPE (
    REFRESH_TOKEN_ID VARCHAR (255),
    TOKEN_SCOPE VARCHAR (255),
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (REFRESH_TOKEN_ID, TOKEN_SCOPE),
    FOREIGN KEY (REFRESH_TOKEN_ID) REFERENCES IDN_OAUTH2_REFRESH_TOKEN(REFRESH_TOKEN_ID) ON DELETE CASCADE
)
/

CREATE TABLE IDN_OAUTH2_REVOKED_TOKENS (
    UUID VARCHAR(255) NOT NULL,
    TOKEN_IDENTIFIER VARCHAR(2048) NOT NULL,
    CONSUMER_KEY VARCHAR(255) NOT NULL,
    TIME_CREATED TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP,
    EXPIRY_TIMESTAMP TIMESTAMP NOT NULL,
    PRIMARY KEY (UUID)
)
/

CREATE TABLE IDN_SUBJECT_ENTITY_REVOKED_EVENT (
    EVENT_ID VARCHAR(255) NOT NULL,
    ENTITY_ID VARCHAR(255) NOT NULL,
    ENTITY_TYPE VARCHAR(100) NOT NULL,
    TIME_REVOKED TIMESTAMP NOT NULL,
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (EVENT_ID),
    CONSTRAINT IDN_SUBJECT_ENTITY_REVOKED_EVENT_CONSTRAINT UNIQUE (ENTITY_ID, ENTITY_TYPE, TENANT_ID)
)
/

-- NON PERSISTENT ACCESS TOKEN INDEXES --

CREATE INDEX IDX_TOKEN_CONSUMER ON IDN_OAUTH2_REVOKED_TOKENS (TOKEN_IDENTIFIER, CONSUMER_KEY)
/
CREATE INDEX IDX_ENTITY_TIME_REVOKED ON IDN_SUBJECT_ENTITY_REVOKED_EVENT (ENTITY_ID, TIME_REVOKED)
/
CREATE INDEX IDX_REFRESH_TOKEN_HASH ON IDN_OAUTH2_REFRESH_TOKEN (REFRESH_TOKEN_HASH)
/
CREATE INDEX IDX_AUTHZ_USER_TENANT_DOMAIN_STATE ON IDN_OAUTH2_REFRESH_TOKEN (AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_STATE)
/
CREATE INDEX IDX_CONSUMER_KEY_STATE ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, TOKEN_STATE)
/
CREATE INDEX IDX_CONSUMER_USER_SCOPE_IDP ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_SCOPE_HASH, TOKEN_STATE, IDP_ID)
/

Oracle

CREATE TABLE IDN_OAUTH2_REFRESH_TOKEN (
    REFRESH_TOKEN_ID VARCHAR2(255),
    REFRESH_TOKEN VARCHAR2(2048),
    CONSUMER_KEY_ID INTEGER,
    AUTHZ_USER VARCHAR2(100),
    TENANT_ID INTEGER,
    USER_DOMAIN VARCHAR2(50),
    GRANT_TYPE VARCHAR2(50),
    REFRESH_TOKEN_TIME_CREATED TIMESTAMP DEFAULT CURRENT_TIMESTAMP NOT NULL,
    REFRESH_TOKEN_VALIDITY_PERIOD NUMBER(19),
    TOKEN_SCOPE_HASH VARCHAR2(32),
    TOKEN_STATE VARCHAR2(25) DEFAULT 'ACTIVE',
    SUBJECT_IDENTIFIER VARCHAR2(255),
    REFRESH_TOKEN_HASH VARCHAR2(512),
    IDP_ID INTEGER DEFAULT -1 NOT NULL,
    CONSENTED_TOKEN VARCHAR2(6),
    AUTHORIZED_ORGANIZATION VARCHAR2(36) DEFAULT 'NONE' NOT NULL,
    PRIMARY KEY (REFRESH_TOKEN_ID),
    FOREIGN KEY (CONSUMER_KEY_ID) REFERENCES IDN_OAUTH_CONSUMER_APPS(ID) ON DELETE CASCADE
)
/

CREATE TABLE IDN_OAUTH2_REFRESH_TOKEN_SCOPE (
    REFRESH_TOKEN_ID VARCHAR2(255),
    TOKEN_SCOPE VARCHAR2(255),
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (REFRESH_TOKEN_ID, TOKEN_SCOPE),
    FOREIGN KEY (REFRESH_TOKEN_ID) REFERENCES IDN_OAUTH2_REFRESH_TOKEN(REFRESH_TOKEN_ID) ON DELETE CASCADE
)
/

CREATE TABLE IDN_OAUTH2_REVOKED_TOKENS (
    UUID VARCHAR2(255) NOT NULL,
    TOKEN_IDENTIFIER VARCHAR2(2048) NOT NULL,
    CONSUMER_KEY VARCHAR2(255) NOT NULL,
    TIME_CREATED TIMESTAMP DEFAULT CURRENT_TIMESTAMP NOT NULL,
    EXPIRY_TIMESTAMP TIMESTAMP NOT NULL,
    PRIMARY KEY (UUID)
)
/

CREATE TABLE IDN_SUBJECT_ENTITY_REVOKED_EVENT (
    EVENT_ID VARCHAR2(255) NOT NULL,
    ENTITY_ID VARCHAR2(255) NOT NULL,
    ENTITY_TYPE VARCHAR2(100) NOT NULL,
    TIME_REVOKED TIMESTAMP NOT NULL,
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (EVENT_ID),
    CONSTRAINT IDN_SUBJECT_ENTITY_REVOKED_EVENT_CONSTRAINT UNIQUE (ENTITY_ID, ENTITY_TYPE, TENANT_ID)
)
/

-- NON PERSISTENT ACCESS TOKEN INDEXES --

CREATE INDEX IDX_TOKEN_CONSUMER ON IDN_OAUTH2_REVOKED_TOKENS (TOKEN_IDENTIFIER, CONSUMER_KEY)
/
CREATE INDEX IDX_ENTITY_TIME_REVOKED ON IDN_SUBJECT_ENTITY_REVOKED_EVENT (ENTITY_ID, TIME_REVOKED)
/
CREATE INDEX IDX_REFRESH_TOKEN_HASH ON IDN_OAUTH2_REFRESH_TOKEN (REFRESH_TOKEN_HASH)
/
CREATE INDEX IDX_AUTHZ_USER_TENANT_DOMAIN_STATE ON IDN_OAUTH2_REFRESH_TOKEN (AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_STATE)
/
CREATE INDEX IDX_CONSUMER_KEY_STATE ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, TOKEN_STATE)
/
CREATE INDEX IDX_CONSUMER_USER_SCOPE_IDP ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_SCOPE_HASH, TOKEN_STATE, IDP_ID)
/

Oracle RAC

CREATE TABLE IDN_OAUTH2_REFRESH_TOKEN (
    REFRESH_TOKEN_ID VARCHAR2(255),
    REFRESH_TOKEN VARCHAR2(2048),
    CONSUMER_KEY_ID INTEGER,
    AUTHZ_USER VARCHAR2(100),
    TENANT_ID INTEGER,
    USER_DOMAIN VARCHAR2(50),
    GRANT_TYPE VARCHAR2(50),
    REFRESH_TOKEN_TIME_CREATED TIMESTAMP DEFAULT CURRENT_TIMESTAMP NOT NULL,
    REFRESH_TOKEN_VALIDITY_PERIOD  NUMBER(19),
    TOKEN_SCOPE_HASH VARCHAR2(32),
    TOKEN_STATE VARCHAR2(25) DEFAULT 'ACTIVE',
    SUBJECT_IDENTIFIER VARCHAR2(255),
    REFRESH_TOKEN_HASH VARCHAR2(512),
    IDP_ID INTEGER DEFAULT -1 NOT NULL,
    CONSENTED_TOKEN VARCHAR2(6),
    AUTHORIZED_ORGANIZATION VARCHAR2(36) DEFAULT 'NONE' NOT NULL,
    PRIMARY KEY (REFRESH_TOKEN_ID),
    FOREIGN KEY (CONSUMER_KEY_ID) REFERENCES IDN_OAUTH_CONSUMER_APPS(ID) ON DELETE CASCADE
)
/

CREATE TABLE IDN_OAUTH2_REFRESH_TOKEN_SCOPE (
    REFRESH_TOKEN_ID VARCHAR2(255),
    TOKEN_SCOPE VARCHAR2(255),
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (REFRESH_TOKEN_ID, TOKEN_SCOPE),
    FOREIGN KEY (REFRESH_TOKEN_ID) REFERENCES IDN_OAUTH2_REFRESH_TOKEN(REFRESH_TOKEN_ID) ON DELETE CASCADE
)
/

CREATE TABLE IDN_OAUTH2_REVOKED_TOKENS (
    UUID VARCHAR2(255) NOT NULL,
    TOKEN_IDENTIFIER VARCHAR2(2048) NOT NULL,
    CONSUMER_KEY VARCHAR2(255) NOT NULL,
    TIME_CREATED TIMESTAMP DEFAULT CURRENT_TIMESTAMP NOT NULL,
    EXPIRY_TIMESTAMP TIMESTAMP NOT NULL,
    PRIMARY KEY (UUID)
)
/

CREATE TABLE IDN_SUBJECT_ENTITY_REVOKED_EVENT (
    EVENT_ID VARCHAR2(255) NOT NULL,
    ENTITY_ID VARCHAR2(255) NOT NULL,
    ENTITY_TYPE VARCHAR2(100) NOT NULL,
    TIME_REVOKED TIMESTAMP NOT NULL,
    TENANT_ID INTEGER DEFAULT -1,
    PRIMARY KEY (EVENT_ID),
    CONSTRAINT IDN_SUBJECT_ENTITY_REVOKED_EVENT_CONSTRAINT UNIQUE (ENTITY_ID, ENTITY_TYPE, TENANT_ID)
)
/

-- NON PERSISTENT ACCESS TOKEN INDEXES --

CREATE INDEX IDX_TOKEN_CONSUMER ON IDN_OAUTH2_REVOKED_TOKENS (TOKEN_IDENTIFIER, CONSUMER_KEY)
/
CREATE INDEX IDX_ENTITY_TIME_REVOKED ON IDN_SUBJECT_ENTITY_REVOKED_EVENT (ENTITY_ID, TIME_REVOKED)
/
CREATE INDEX IDX_REFRESH_TOKEN_HASH ON IDN_OAUTH2_REFRESH_TOKEN (REFRESH_TOKEN_HASH)
/
CREATE INDEX IDX_AUTHZ_USER_TENANT_DOMAIN_STATE ON IDN_OAUTH2_REFRESH_TOKEN (AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_STATE)
/
CREATE INDEX IDX_CONSUMER_KEY_STATE ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, TOKEN_STATE)
/
CREATE INDEX IDX_CONSUMER_USER_SCOPE_IDP ON IDN_OAUTH2_REFRESH_TOKEN (CONSUMER_KEY_ID, AUTHZ_USER, TENANT_ID, USER_DOMAIN, TOKEN_SCOPE_HASH, TOKEN_STATE, IDP_ID)
/

Custom JWT Token Issuer

If you already use a custom JWT token issuer that extends JWTTokenIssuer, add the setClaimsForNonPersistence call inside createJWTClaimSet(...) just before you return the JWT claim set. This injects the non-persistence–related claims.

@Override
protected JWTClaimsSet createJWTClaimSet(
        OAuthAuthzReqMessageContext authAuthzReqMessageContext,
        OAuthTokenReqMessageContext tokenReqMessageContext,
        String consumerKey) throws IdentityOAuth2Exception {

    // ... set your standard logic here ...

    // Add non-persistence claims BEFORE returning:
    setClaimsForNonPersistence(jwtClaimsSetBuilder, authAuthzReqMessageContext,
            tokenReqMessageContext, authenticatedUser, oAuthAppDO);

    return jwtClaimsSetBuilder.build();
}

Add the following configuration to the deployment.toml file to enable the feature in WSO2 Identity Server.

[oauth.token_persistence]
persist_access_token = false
retain_revoked_token = true
persist_refresh_token = false

Tip

If you have a long-living refresh token with refresh token rotation, it is recommended to store the refresh token. The following configuration can be used to enable refresh token persistence while keeping the access token as non-persistent.

[oauth.token_persistence]
persist_access_token = false
persist_refresh_token = true

Tip

If you don't want the Identity Server to store revoked tokens and details related to revoked subjects, you can disable this by updating the following configuration.

[oauth.token_persistence]
retain_revoked_token = false

Removing unused refresh tokens and revoke entries from the database¶

Note

This section applies to database cleanup when the non-persistent access token feature is enabled. For persistent mode, refer to Clean unused tokens from database.

As you continue to use WSO2 Identity Server (WSO2 IS), the number of revoked, inactive, and expired tokens increases in the IDN_OAUTH2_REFRESH_TOKEN table. When a token is revoked, a record is also added to the IDN_OAUTH2_REVOKED_TOKENS table. These tokens are retained for purposes such as logging, auditing, and validation.

However, over time, the accumulation of such records can impact overall server performance and increase the size of the database. To ensure optimal performance, it is recommended to periodically clean up unused and expired tokens.

The following sections guide you through the different ways to perform cleanup and how to configure them.

Token Cleanup via Stored Procedure (Recommended)
Configuring WSO2 Identity Server for token cleanup

Token cleanup via stored procedure

You can use the provided stored procedures to run a token cleanup task periodically to remove the old and invalid tokens and clean up the IDN_OAUTH2_REVOKED_TOKENS table. Follow the instructions below to configure token cleanup using this method.

Tip

It is safe to run these steps in read-only mode or during a time when traffic on the server is low, but that is not mandatory.

Disable Internal Token Cleanup Update the deployment.toml file located in <IS_HOME>/repository/conf:

[oauth.token_cleanup]
enable = false

Run the Cleanup Script Select the appropriate SQL script based on your database type and execute it.
- MySQL Stored Procedure Script
- Oracle Stored Procedure Script

This script:

Backs up token-related tables (if enabled)
Deletes eligible expired, revoked, or inactive entries
Restart the Server Once cleanup is complete, restart WSO2 Identity Server with the updated and cleaned database. You can optionally schedule periodic execution of the cleanup procedure.

Configuring WSO2 Identity Server for token cleanup

You can also configure WSO2 Identity Server to trigger refresh token cleanup during the following events:

On token refresh: When issuing a new refresh token
On token revocation: When a refresh token is explicitly revoked
User revoke events: This includes events like user deletion, user lockout, or user role deletion.
Application revoke events: This includes application credentials revocation or application deletion.

Manual cleanup required for IDN_OAUTH2_REVOKED_TOKENS and IDN_SUBJECT_ENTITY_REVOKED_EVENT

The tables IDN_OAUTH2_REVOKED_TOKENS and IDN_SUBJECT_ENTITY_REVOKED_EVENT do not have an automatic cleanup procedure by default. You must manually implement cleanup scripts for these tables to avoid database bloat and maintain performance.

Enable token cleanup by configuring the following properties in the deployment.toml file found in the <IS_HOME>/repository/conf folder.

[oauth.token_cleanup]
enable = true

Property Description

enable

Set this property to true to enable refresh token cleanup.

Set it to false to disable token cleanup.
