Configure Email Provider¶

This document explains the steps to configure WSO2 Identity Server to send emails during multiple email-related customer identity and access management tasks such as email OTP, email notifications, and account recovery.

WSO2 Identity Server supports SMTP-based email providers. To learn how to configure the email provider please see the relevant section.

Global Configurations of Email Provider¶

Follow the steps given below to enable the email sender globally for all tenants in WSO2 Identity Server.

Configure SMTP based email provider globally¶

Shut down the server if it is running.

Add the following properties to the deployment.toml file in the <IS_HOME>/repository/conf folder to configure the email provider.

[output_adapter.email]
from_address= "[email protected]"
auth_type= "BASIC"
username= "wso2iamtest"
password= "Wso2@iam70"
hostname= "smtp.gmail.com"
port= 587
enable_start_tls= true
enable_authentication= true
signature = "ABC.com"

Property	Description
`from_address`	This is the mail address from where you want to send the notification. It can be any working mail address.
`auth_type`	Authentication type to use when sending the email. WSO2 Identity Server supports `BASIC` and `CLIENT_CREDENTIAL` authentication types. For `BASIC` you need to configure `username` and `password`. For `CLIENT_CREDENTIAL` you need to configure `client_id`, `client_secret`, `token_endpoint` and `scopes`. Support for the `CLIENT_CREDENTIAL` authentication type is available for Microsoft 365 Exchange Online.
`username`	Provide the username of the SMTP account. Username of the mail you have provided in from_address.
`password`	Provide the password of the SMTP account. Password of the mail you have provided in from_address.
`client_id`	Provide the password of the SMTP account. Password of the mail you have provided in from_address.
`host`	The SMTP server to connect to.
`port`	This is the SMTP server port to connect to if the connect() method does not explicitly specify one. Defaults to 25.
`enable_start_tls`	If true, this enables using the `STARTTLS` command (if enabled before issuing any login commands. Note that an appropriate trust store must be configured so that the client will trust the server's certificate. Defaults to `true`.
`enable_authentication`	If true, attempt to authenticate the user using the AUTH command. Defaults to `true`.
`signature`	Specifies the display name for the "From" email address. For example, "ABC Company" results in `"ABC Company" <[email protected]>`. If you don't set this property, the display name becomes `null` and the system falls back to your SMTP server settings. For example, some servers use the `username` as the display name. To send an email with no display name and show only the email address, set this value to an empty string: `signature = ""`

Tip

For information about the SMTP, see the JavaMail SMTP documentation.

Info

If you use a Gmail account as the from_address, you must create an App Password. After you get an App Password from Google, update the password.
If your password contains special characters (example: <, >, &), you will run into errors when running the server. To avoid errors, update the password parameter as follows:
```
password= "<![CDATA[xxxx]]>"
```

Save the configurations and start the server.

Tenant Specific Configurations of Email Provider¶

Info

Super tenant email provider cannot be configured via the WSO2 Identity Server console. You need to configure the email provider in the deployment.toml file as mentioned above.

Follow the steps given below to enable the email sender per tenant.

Configure SMTP based email provider per tenant¶

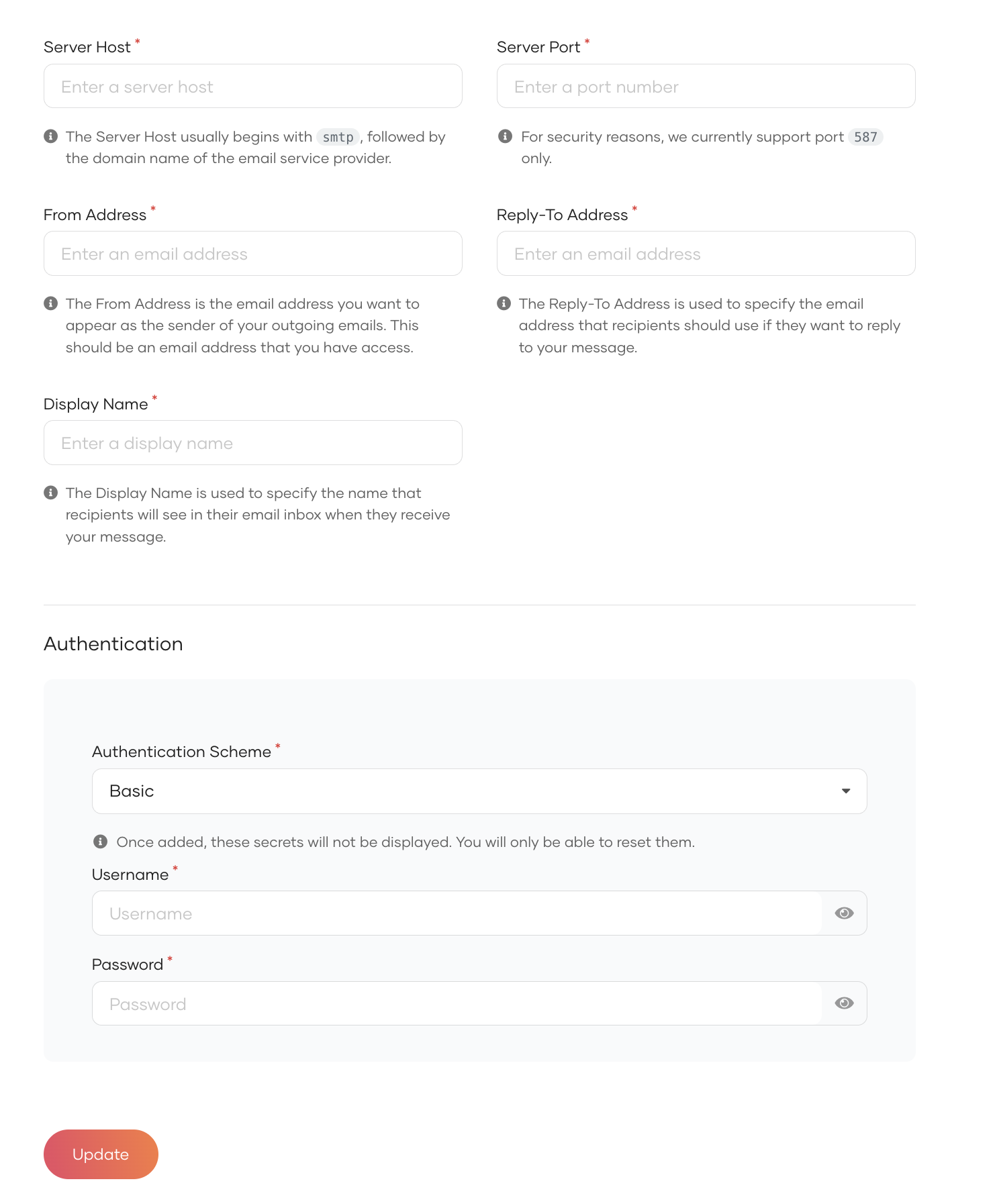

On the WSO2 Identity Server Console, go to Notification Channels > Email Provider.
Provide the required details.

Click Update.
Since these configurations apply during the tenant loading process, configure tenant loading and unloading for your tenant.

Supported SMTP based email providers¶

Configuring Gmail as the email provider

If you use a Gmail account as the from_address, you must create an App Password. After you get an App Password from Google, update the password.

If your password contains special characters (example: <, >, &), you will run into errors when running the server. To avoid errors, update the password parameter as follows:

password= "<![CDATA[xxxx]]>"

Configuring Microsoft 365 Exchange Online as the email provider

Before you start¶

You must have a Microsoft 365 account with an active subscription.
Ensure your Microsoft 365 subscription is licensed to send emails through Exchange Online.
You need at a minimum a paid subscription to Microsoft Business Basic plan to use the SMTP Auth for Exchange Online.
Emails will be sent from WSO2 Identity Server to your SMTP provider. Your ports should be open and allow inbound connections from specific WSO2 Identity Server IP addresses.

Configure Microsoft 365¶

Application Configuration and Permissions¶

Register a client application in Microsoft Entra ID if you currently do not have one.
Navigate to your registered Application resource.
Select Services > App registrations, and then select the application you will be using to send emails.

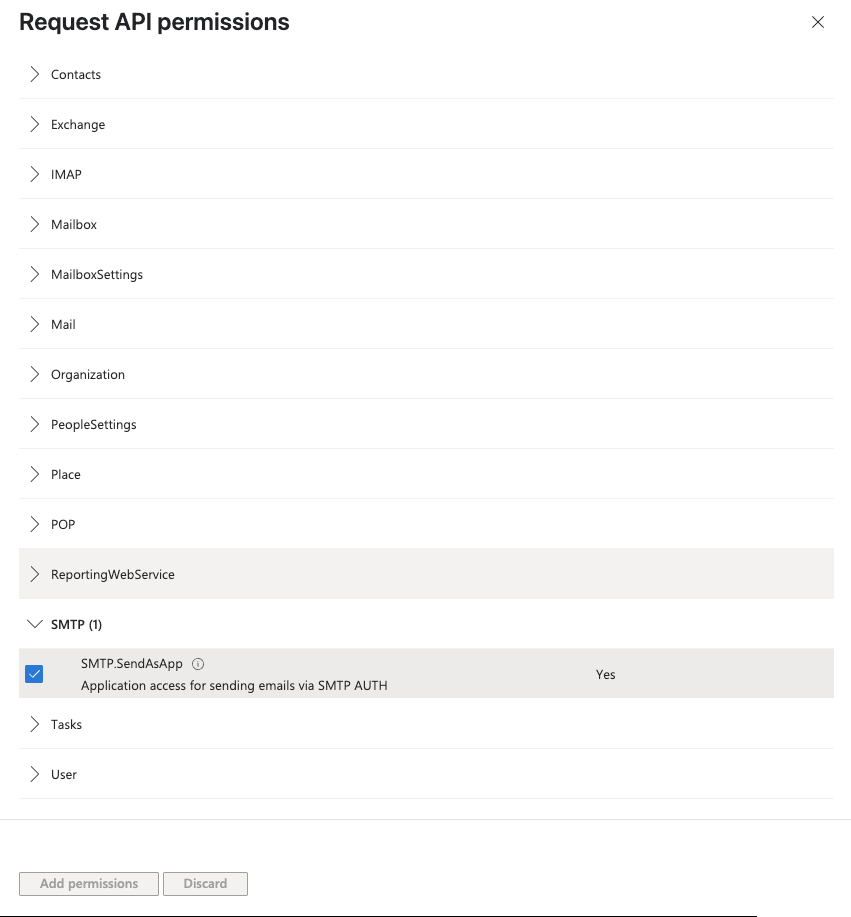

Configure the required application permissions by navigating to Manage > API permissions. Please refer Application permissions for SMTP

Register service principals in Exchange¶

Please refer Register service principals in Exchange.

Enable SMTP AUTH for specific mailboxes¶

Please refer Enable SMTP AUTH for specific mailboxes.

Retrieve required email provider configurations¶

Navigate to the Application Overview of your Azure Active Directory Application and retrieve the Application (client) ID.
Navigate to Manage > Certificates & secrets and collect the Value to create an application secret.
Navigate to Overview > Endpoints and copy the OAuth 2.0 token endpoint (v2) URL.

Configure SMTP settings in WSO2 Identity Server¶

Go to Notification Channels > Email Provider.

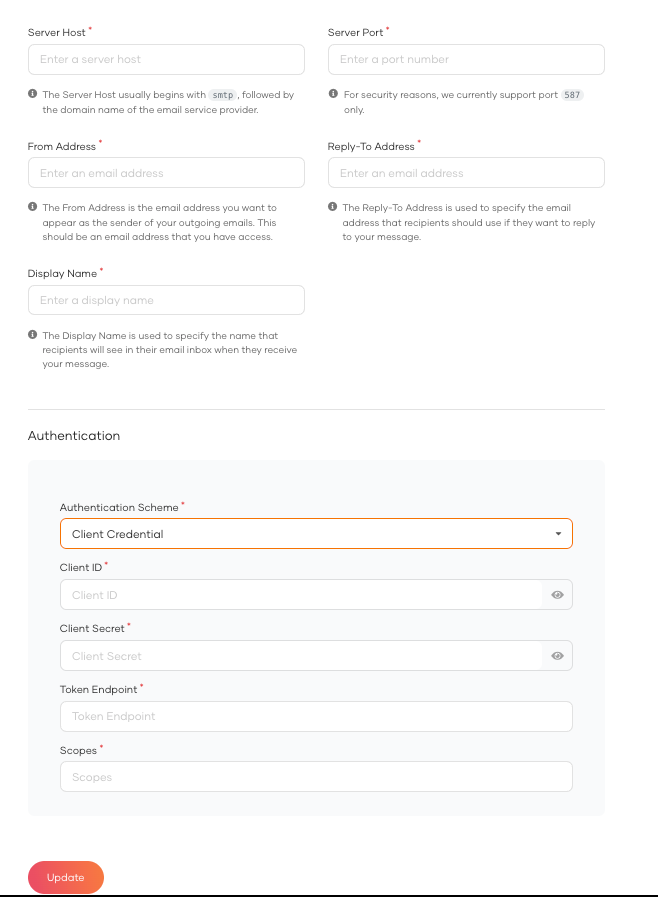

Provide the From email address and other relevant details. Click on Client Credentials from the Authentication type dropdown.
Provide the required details retrieved from the previous step.

NOTE: The scope required for Microsoft 365 Exchange Online is https://outlook.office365.com/.default and the token endpoint URL should be in the format of https://login.microsoftonline.com/{tenant_id}/oauth2/v2.0/token.

Click Update to save the configurations.
