Configuring New-Device-Based Adaptive Authentication¶
This scenario demonstrates new-device-based adaptive authentication in WSO2 Identity Server using sample authenticators. The instructions below guide you through specifying authentication steps based on the device that the user uses to log in to the application. In this example, if the user uses a new device or a new browser to log in to the application, the user is prompted for a second step of authentication. The new device or browser is identified by a cookie, therefore, once the cookie expires (this expiry time is specified in the authentication script), the same browser or device is considered as a new device.
Follow the instructions given in the sections below to set this up.
Before you begin
- Set up the service provider and sample application for adaptive authentication. For instructions on how to do this, see Configuring a Service Provider for Adaptive Authentication.
- For more information about adaptive authentication with WSO2 Identity Server, see Adaptive Authentication.
Configuring the sample scenario¶
- Log in to the management console.
- Create a new user called "Kim".
- Navigate to Service Providers>List and click Edit on the
- Expand the Local and Outbound Configuration section and click Advanced Authentication.
- Click on Templates on the right side of the Script Based
Conditional Authentication field and then click

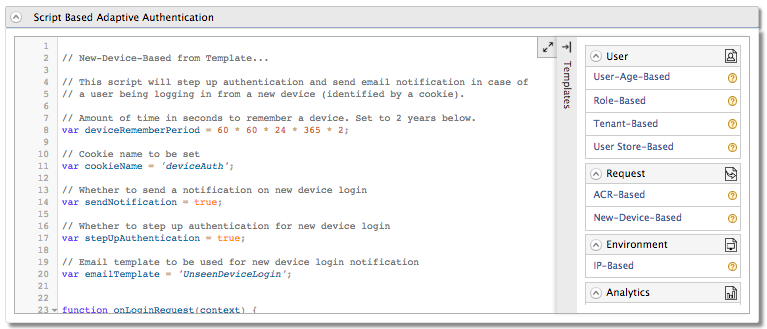

Click Ok. The authentication script and authentication steps are configured. The authentication script prompts the second step of authentication if the user logs in using a new device or browser that they have not used before. The new device or browser is identified by a cookie.
You can set the
Periodto specify how long the device should be considered as a trusted device. Once this time period has elapsed, the device is considered as a new device. The time period is set to two years by default.
java var deviceRememberPeriod = 60 * 60 * 24 * 365 * 2;
The second authentication step that is added is
totpis an authentication step that you would normally use in production. To try out this scenario sample authenticators with the sample application, delete the
totpauthenticator and add the following demo authenticator instead.
- Click Delete to remove the
totpauthenticator from Step 2 (the second authentication step).
- Select Demo Hardware Key Authenticator and click Add.
- Click Delete to remove the
- Click Update.
Trying out the sample scenario¶
- Access the following sample PickUp application URL: http://localhost.com:8080/saml2-web-app-pickup-dispatch.com
- Click Login and enter Kim's credentials. Note that you are
prompted for hardware key authentication because Kim has never
logged in from this device or browser before.
- Enter the 4 digit key and click Sign-In. You are successfully
logged in to the application.
- Log out and log in again using Kim's credentials on the same browser window. Note that you are logged in successfully without being prompted for hardware key authentication again. This is because this browser and device is now trusted.
- Open a new browser window of a different browser and access the PickUp application URL: http://localhost.com:8080/saml2-web-app-pickup-dispatch.com
- Click Login and enter Kim's credentials. Note that you are now prompted for hardware key authentication again since Kim has never logged in using this particular browser before.
- Enter the 4 digit key and click Sign In. You are successfully logged in to the application.
