Service Provider Related Tables¶

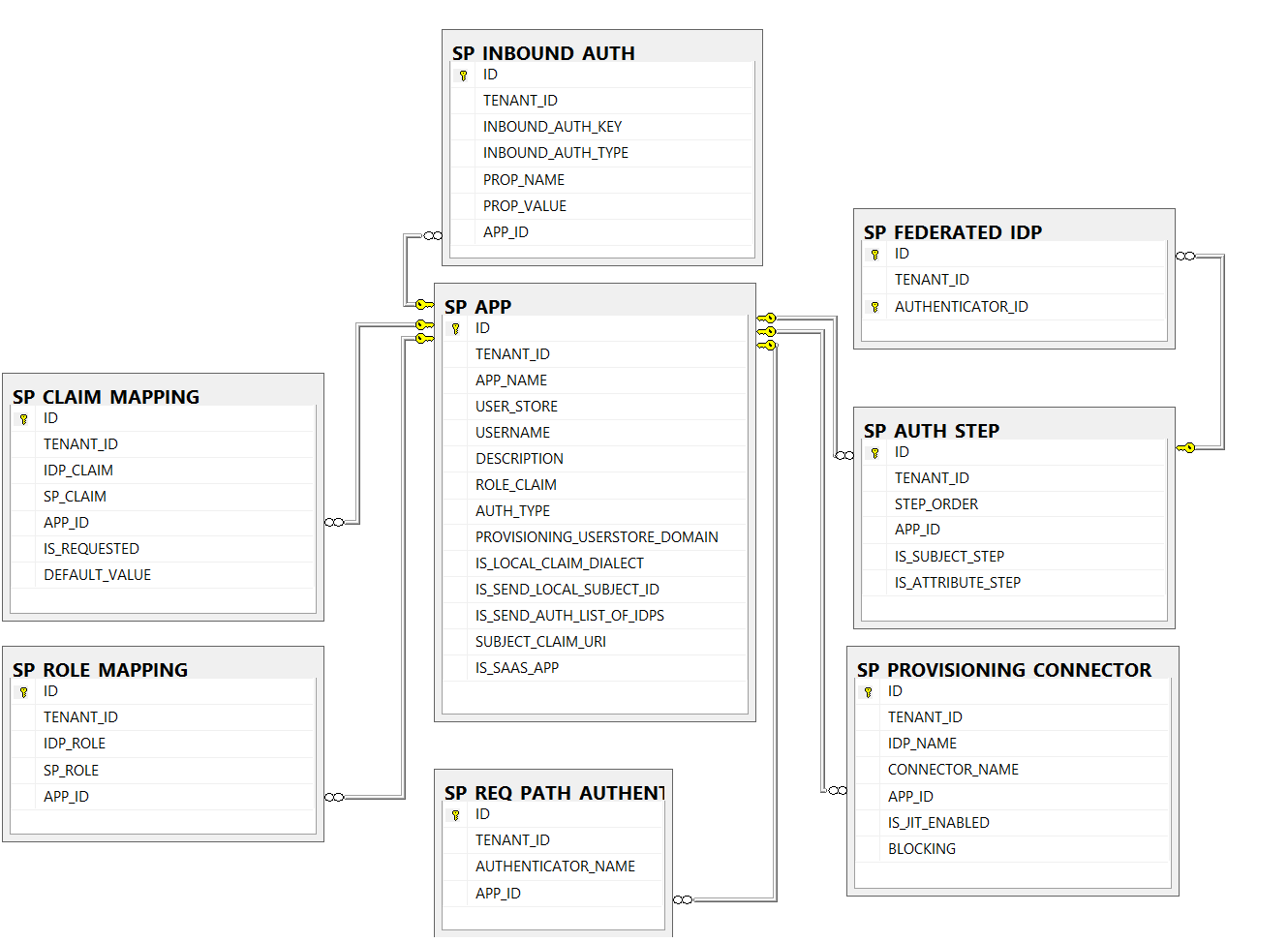

This section lists out all the service provider related tables and their attributes in the WSO2 Identity Server database.
SP_APP¶
When a service provider is added, the details are stored in this table.
The APP_NAME
column represents the service provider name. Following are
the columns of the table.
ID
TENANT_ID
APP_NAME
USER_STORE
USERNAME
DESCRIPTION
ROLE_CLAIM
AUTH_TYPE
PROVISIONING_USERSTORE_DOMAIN
IS_LOCAL_CLAIM_DIALECT
IS_SEND_LOCAL_SUBJECT_ID
IS_SEND_AUTH_LIST_OF_IDPS
SUBJECT_CLAIM_URI
IS_SAAS_APP
SP_INBOUND_AUTH¶
Inbound authentication configuration details of a service provider are
stored in this table. For each type of associated inbound authentication
configuration for a service provider, there will be a separate record
(i.e. OpenID, PassiveSTS, SAMLSSO). If the inbound authentication
configuration is SAMLSSO (value in INBOUND_AUTH_TYPE
is samlsso
), it
will have a property named Attribute Consuming Service Index
in the
column, PROP_NAME
and the value is a random integer stored in the
PROP_VALUE
column. Following are the columns of the table.
ID
TENANT_ID
INBOUND_AUTH_KEY
INBOUND_AUTH_TYPE
PROP_NAME
PROP_VALUE
APP_ID
SP_AUTH_STEP¶
The service providers can define how to authenticate users at WSO2 Identity Server, for authentication requests initiated by it. While
doing that, each service provider can define multiple steps and for each
step, it can pick more than one authenticator. This is called multi-level (multi-factor) authentication. This table stores each
authentication step added to the service provider. Service provider is
represented by the APP_ID
. If multiple authentication steps are added
for one service provider, the order is maintained in the STEP_ORDER
column. Following are the columns of the table.
ID
TENANT_ID
STEP_ORDER
APP_ID
IS_SUBJECT_STEP
IS_ATTRIBUTE_STEP
SP_FEDERATED_IDP¶
For a service provider, federated identity providers can be added for
authentication. The federated identity providers for a service provider
are stored in this table. Here, the ID column points to the ID column of
the SP_AUTH_STEP
table. Following are the columns of the table.
ID
TENANT_ID
AUTHENTICATOR_ID
SP_CLAIM_MAPPING¶
When the claims of the identity provider are different from the service
provider, corresponding claims can be mapped from this table for each
service provider. The service provider ID is given in APP_ID
and the
IDP_CLAIM
and SP_CLAIM
are the identity provider and service provider
claims respectively. Following are the columns of the table.
ID
TENANT_ID
IDP_CLAIM
SP_CLAIM
APP_ID
IS_REQUESTED
DEFAULT_VALUE
SP_ROLE_MAPPING¶
When there are user roles defined in both the identity provider (here
WSO2 Identity Server) and the client application sides, the roles
in both sides can be mapped together accordingly through the service
provider. The service provider ID is given in APP_ID
, the client
application side role is given in SP_ROLE
, and the identity provider’s
side role is given in IDP_ROLE
. This way, the client application
developers do not need to know the available roles in the identity
provider as the roles can be mapped and linked together. Following are
the columns of the table.
ID
TENANT_ID
IDP_ROLE
SP_ROLE
APP_ID
SP_REQ_PATH_AUTHENTICATOR¶
If a RequestPathAuthenticator
is added to a service provider, that is
recorded in this table. Service provider ID is given in APP_ID
.
The AUTHENTICATOR_NAME
column will contain the name of the request path
authenticator. Following are the columns of the table.
ID
TENANT_ID
AUTHENTICATOR_NAME
APP_ID
SP_PROVISIONING_CONNECTOR¶
Outbound provisioning connectors can be added to the identity providers
for user provisioning. Those provisioning connectors can be linked to a
service provider. For a service provider, the associated provisioning
connectors are stored in this table. The IDP_NAME
column has the identity
provider name and the CONNECTOR_NAME
column has the name of the
provisioning connector. The APP_ID
column has the ID of the service
provider. Following are the columns of the table.
ID
TENANT_ID
IDP_NAME
CONNECTOR_NAME
APP_ID
IS_JIT_ENABLED
BLOCKING
