Add MFA based on ELK-risk

This guide shows you how to use ELK Analytics to assess an end user's risk score and enable adaptive authentication.


Consider a business use case where a bank wants to prompt an additional authentication step when a user attempts to log in to the system after making transactions amounting to over $10,000 within five minutes.

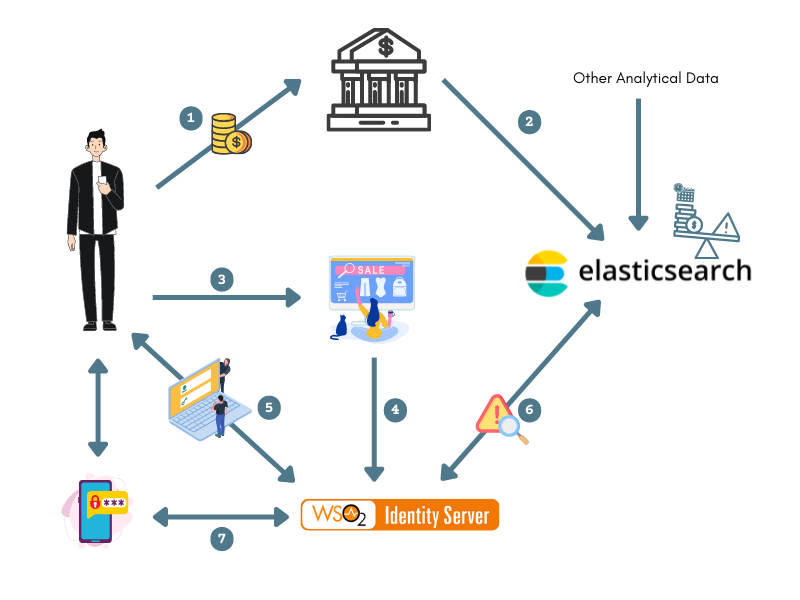

The diagram below shows how the connection between the client applications, ELK Analytics, and WSO2 Identity Server works to assess the risk of the user.


  1. The user performs bank transactions through different applications.

  2. Transaction data from all these applications are published to the ELK Analytics via the “transaction” index.

  3. The user attempts to access an application that uses WSO2 Identity Server as the identity provider.

  4. The application sends an authentication request to WSO2 Identity Server.

  5. The user is prompted to log in, and WSO2 Identity Server authenticates the user using basic authentication (username/password credentials).

  6. WSO2 Identity Server publishes an event to ELK, which computes the user's risk score based on the user's transaction history using the data received in step 2.

    For example

    If the user has made transactions that add up to over $10,000 within the last five minutes, the risk score is 1. Else, the risk score is 0.

  7. If the risk score is 1, WSO2 Identity Server prompts an additional step of authentication for the user (i.e., entering a hardware key number) before allowing the user to access the service provider application.


  • See the general prerequisites for all adaptive authenticaiton scenarios.

  • Configure ELK analytics for adaptive authentication, and run the following command to create an index named transaction to store transaction data.


    Replace {ELASTICSEARCH_HOST} and {ELASTICSEARCH_BASIC_AUTH_HEADER} to match your settings.

    Request Format

    curl -L -X PUT 'https://{ELASTICSEARCH_HOST}/transaction' -H 'Authorization: Basic {ELASTICSEARCH_BASIC_AUTH_HEADER}' -H 'Content-Type: application/json' --data-raw '{"mappings":{"properties":{"@timestamp":{"type":"date"}}}}'
    Sample Request
    curl -L -X PUT 'https://localhost:9200/transaction' -H 'Authorization: Basic d3NvMnVzZXI6Y2hhbmdlbWU=' -H 'Content-Type: application/json' --data-raw '{"mappings":{"properties":{"@timestamp":{"type":"date"}}}}'
    "acknowledged": true,
    "shards_acknowledged": true,
    "index": "transaction"

Configure risk-based authentication

To configure risk-based conditional authentication:

  1. On the WSO2 Identity Server Console, click Applications.

  2. Select the relevant application and go to its Login Flow tab.

  3. Add risk-based adaptive MFA as follows:

    1. Go to Predefined Flows > Conditional Login Flows.

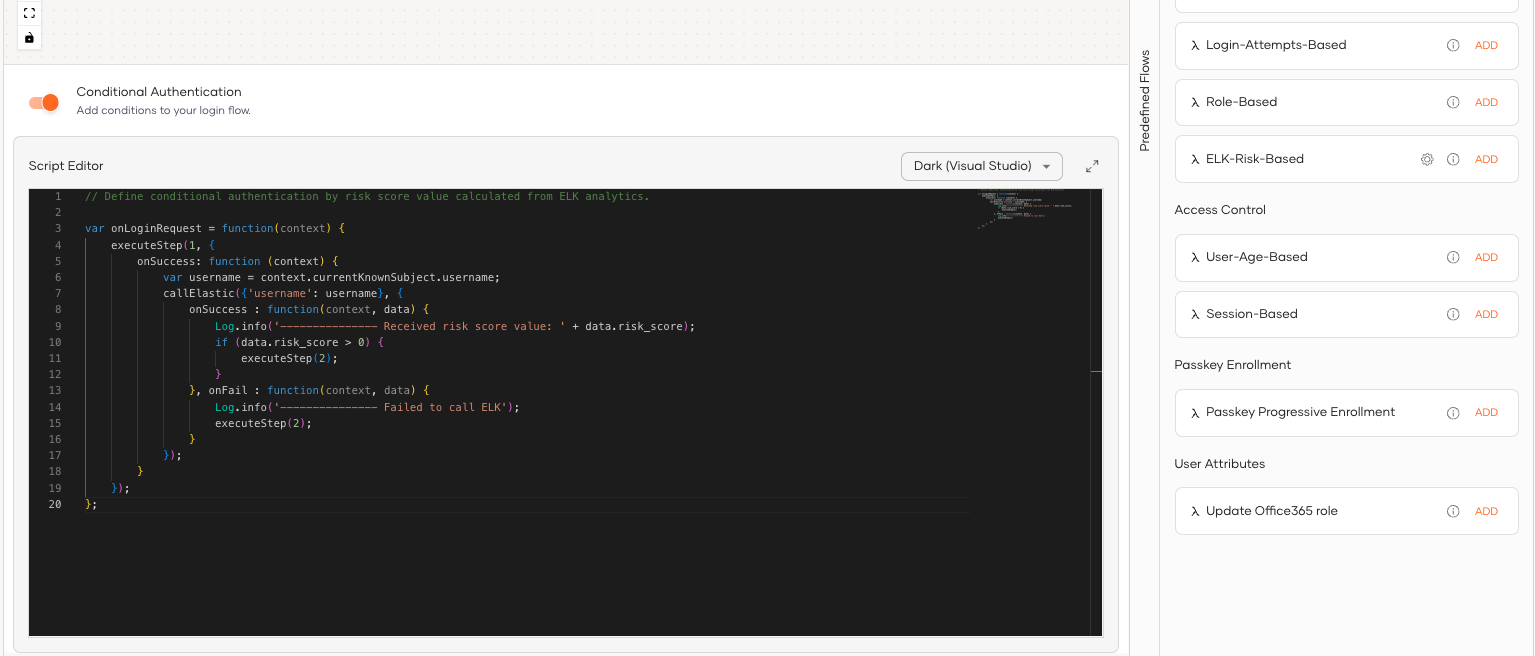

    2. Click Adaptive MFA > ELK-Risk-Based > Add to add the ELK risk-based adaptive MFA script.


    3. Click Confirm to replace any existing script with the selected predefined script.


    • The resulting authentication script defines a conditional step that executes the second authentication step if the riskScore is greater than 0.
    • By default, TOTP will be added as the second authentication step. You can update this with any authentication method.
  4. Click Update to save your configurations and restart WSO2 Identity Server.

Try it out

  1. Start the Tomcat server and access the following sample PickUp application URL: .

  2. Log in to the application by giving your username and password.


    The user is authenticated with basic authentication only.

  3. Log out of the application, and execute the following cURL command. This command publishes an event regarding a user bank transaction exceeding $10,000.


    curl -L -X POST 'https://{ELASTICSEARCH_HOST}/transaction/_doc' -H 'Authorization: Basic {ELASTICSEARCH_BASIC_AUTH_HEADER}' -H 'Content-Type: application/json' --data-raw '{
    "amount": {TRANSACTION_AMOUNT}
    Sample Request
    curl -L -X POST 'https://localhost:9200/transaction/_doc' -H 'Authorization: Basic d3NvMnVzZXI6Y2hhbmdlbWU=' -H 'Content-Type: application/json' --data-raw '{
    "amount": 12000
    "_index": "transaction",
    "_id": "_75YR4EBPqDnJYiU7W_A",
    "_version": 1,
    "result": "created",
    "_shards": {
     "total": 2,
     "successful": 1,
     "failed": 0
    "_seq_no": 0,
    "_primary_term": 1

  4. Log in to the application again. You are now prompted for the TOTP after the basic authentication.


    Before executing the cURL command given in step 4, the user had no transaction history, and the user's riskScore was 0. The authentication script is programmed to prompt only basic authentication if the risk score is 0.

    After executing the command, a transaction event that indicates the user spending more than $10,000 is published and recorded in the Siddhi application. Therefore, when the user attempts to log in again, the user's riskScore is evaluated to 1, and the user is prompted for an extra authentication step.
