Configure ACR-based adaptive authentication

Authentication Context Class Reference (ACR) is an optional parameter that is used in SAML and OpenID Connect (OIDC) requests. This parameter enables applications to send additional information to the identity provider regarding the required level of assurance. Developers can then define authentication steps required for a given ACR value using an adaptive authentication script in the WSO2 Identity Server.


Let's look at a scenario where you want to dynamically adjust the authentication flow based on the authentication context value received in the authentication request.

For example, imagine a financial institution that wants to send ACR values in the authentication request based on activities.

  • For a high value transaction, the application may request for an ACR value of ACR2 from the identity provider which generally include a stronger authentication mechanism.

  • For a balance inquiry, the application may request for an ACR value of ACR1 from the identity provider which generally include a basic authentication mechanism.

The guides below explain how you can leverage an adaptive authentication script in WSO2 Identity Server to achieve this.


You need to register an application with WSO2 Identity Server. You can register your own application or use the playground2 sample application to test ACR-based adaptive authentication.

Request ACR from applications

Follow the sections below to learn how you can request ACR parameters from either an OIDC or a SAML application.

Some commonly accepted ACR values

Eventhough ACR values and their interpretations are not defined by a set specification, the following are some commonly accepted ACR values.

Authentication Method Authentication Context Class URI
Username/Password urn:oasis:names:tc:SAML:2.0:ac:classes:Password
Password Protected Transport urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport
Transport Layer Security (TLS) Client urn:oasis:names:tc:SAML:2.0:ac:classes:TLSClient
X.509 Certificate urn:oasis:names:tc:SAML:2.0:ac:classes:X509
Integrated Windows Authentication urn:federation:authentication:windows
Kerberos urn:oasis:names:tc:SAML:2.0:classes:Kerberos

Developers have the flexibility of defining custom ACR values and their meanings to fit business requirements.

From an OIDC application

acr_values is an optional parameter that can be included in an OIDC authentication request. This parameter may include the necessary context class URIs. If there are multiple ACR values they can be included separated by commas.

Shown below is an example authentication request including the optional acr_values parameter.

&acr_values={acr_value1} {acr_value2}
&acr_values=urn:federation:authentication:windows pwd LOA2

From a SAML application

To receive ACR values from a SAML application, developers can add the following to the SAML SSO request when initiating the SAML SSO flow.

<samlp:RequestedAuthnContext Comparison="exact">


WSO2 Identity Server authentication script does not support the Comparison attribute in the RequestedAuthnContext element due to the following reasons:

  • OAuth2 does not support similar functionality.

  • WSO2 Identity Server provides more flexibility to enforce ACR through adaptive authentication scripts. A client sending an exact, minimum, maximum, or better comparison may not be as effective.

Configure the login flow

The steps below explain how you can set up an ACR-based conditional authentication script to define the logic for the received ACR values.

  1. On the WSO2 Identity Server Console, click Applications.

  2. Select the relevant application and go to its Login Flow tab.

  3. Add ACR-based adaptive MFA as follows:

    1. Go to Predefined Flows > Conditional Login Flows.

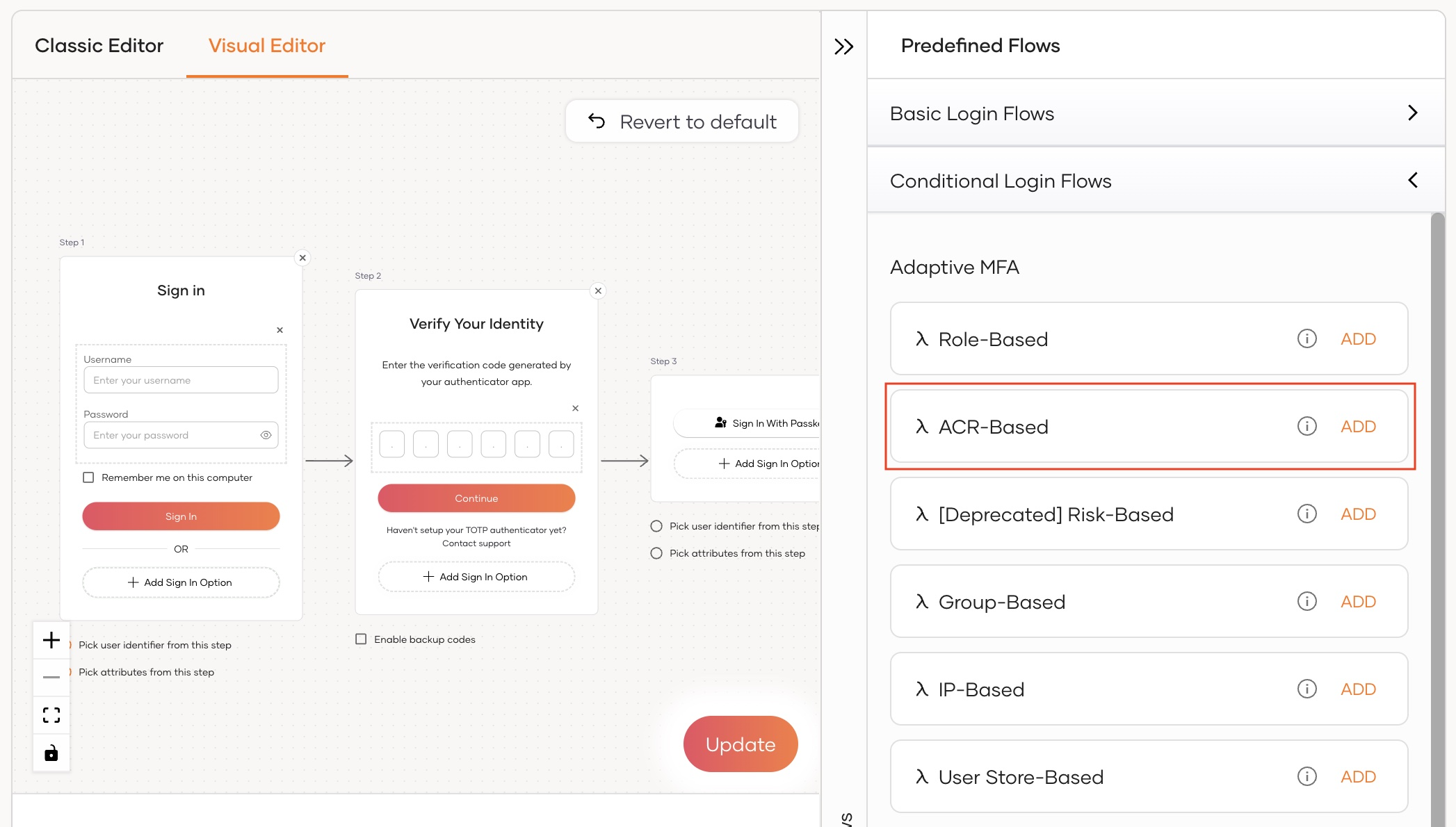

    2. Click Adaptive MFA > ACR-Based > ADD to add the ACR-based adaptive MFA script.

      Role-based adaptive MFA with visual editor

    3. Click Confirm on the prompt to replace any existing script with the current script.

  4. Verify that the login flow is now updated. For the sample application, we'll have the following three authentication steps:

    • Step 1: Username and Password
    • Step 2: TOTP authenticator
    • Step 3: Passkey authenticator
  5. Click Update to confirm.

How it works

Shown below is the default script for ACR-based conditional authentication.

// Define conditional authentication by passing one or many Authentication Context Class References
// as comma separated values.

// Specify the ordered list of ACR here.
var supportedAcrValues = ['acr1', 'acr2', 'acr3'];

var onLoginRequest = function(context) {
    var selectedAcr = selectAcrFrom(context, supportedAcrValues);'--------------- ACR selected: ' + selectedAcr);
    context.selectedAcr = selectedAcr;
    switch (selectedAcr) {
        case supportedAcrValues[0] :
        case supportedAcrValues[1] :
        case supportedAcrValues[2] :
        default :

Access ACR Values from the authentication script

The authentiaction script is protocol-agnostic, i.e. it works for both OIDC and SAML SSO requests.

  • For OIDC requests the acr_values parameter is available as context.requestedAcr.

  • For SAML SSO requests, the list of samlp:AuthnContextClassRef is available as context.requestedAcr.

You can also assign any string value that is returned in the authentication response, using context.selectedAcr.

The following example explains this.

var acr_values = context.requestedAcr; //Assigns the list of ACR values returned from the application to an array.
context.selectedAcr="LOA1";  //Sets the ACR value to be returned in the response.

Let's look at how this script works.

  1. The ordered list, supportedAcrValues, contains comma separated ACR values accepted from the application.
  2. The selectAcrFrom function dynamically and adaptively determines the strongest ACR value from the received and configured ACR values.
  3. context.selectedAcr sets the selected ACR value to be returned in the authentication response.
  4. Based on the selected ACR value, authentication level is determined in the switch cases. In this case,
    • acr1 - step 1 (basic authentication)
    • acr2 - step 1 and 2 (basic authentication and TOTP)
    • acr3 - step 1 and 3 (basic authentication and Passkeys)


Find out more about the scripting language in the Conditional Authentication API Reference.

Try it out

Follow the steps given below to try out ACR-based adaptive authentication with the playground2 sample application.

  1. Access the application URL: http://wso2is.local:8080/playground2/index.jsp

  2. Click Import Photos.

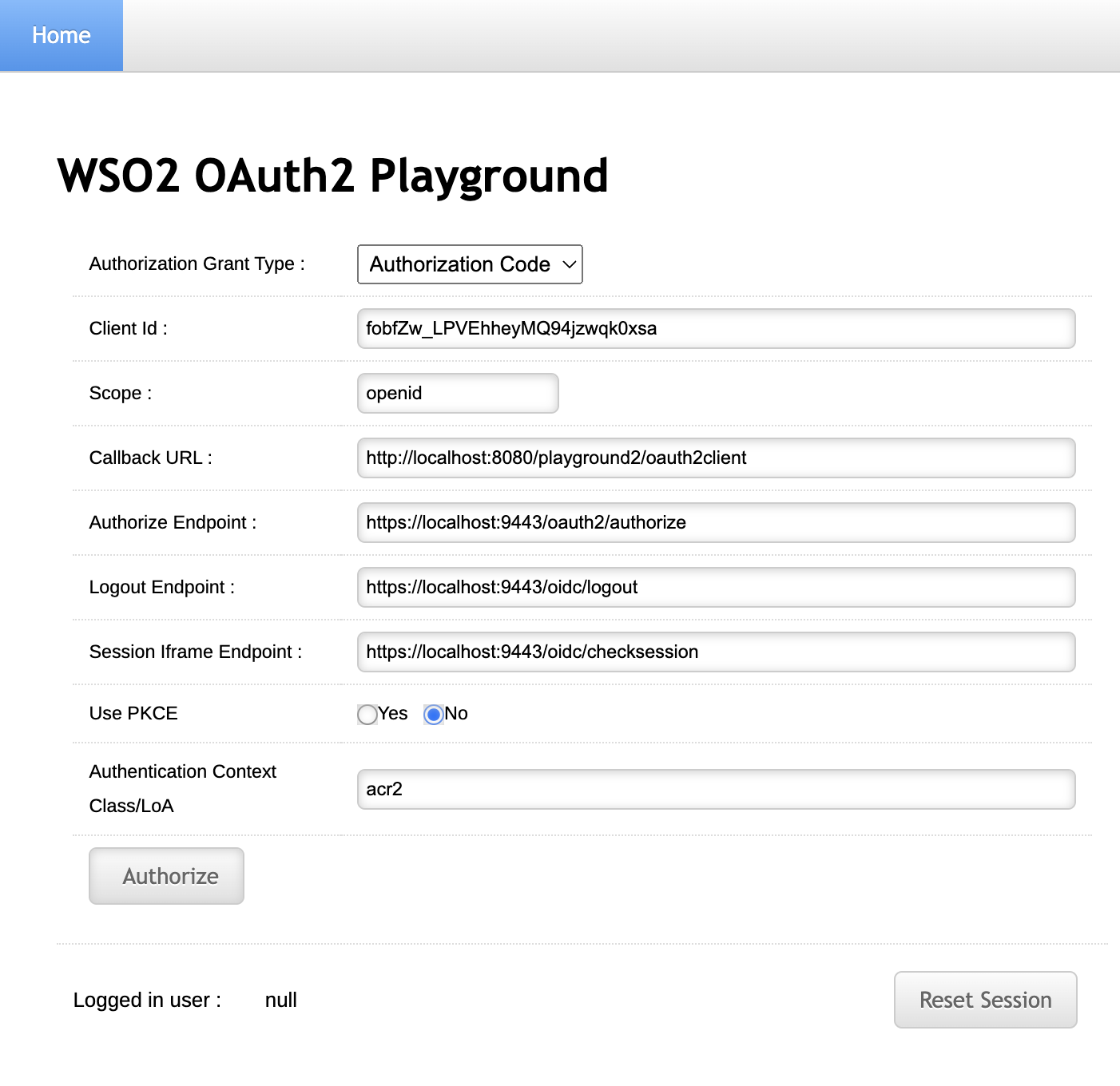

  3. Enter the client ID of the OAuth service provider application you registered above and enter acr2 as the Authentication Context Class value.

    Authentication context class

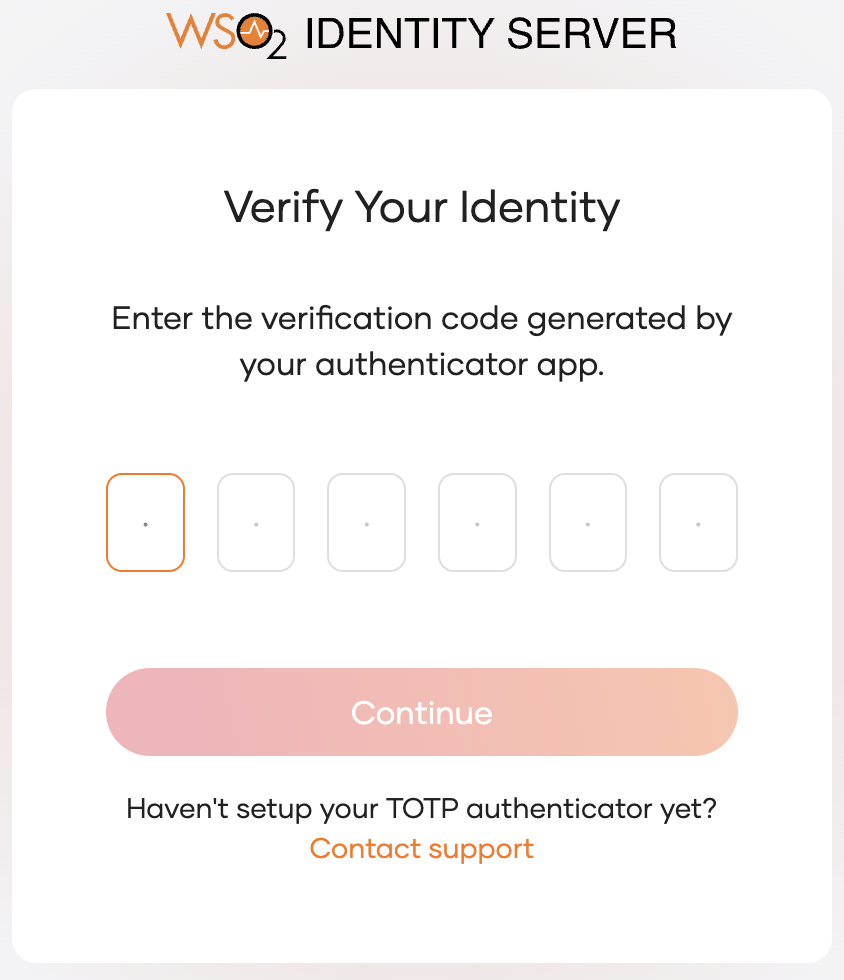

  4. You are now prompted for basic authentication followed by TOTP authentication which corresponds to the received acr2 ACR value.

    TOTP authenticator

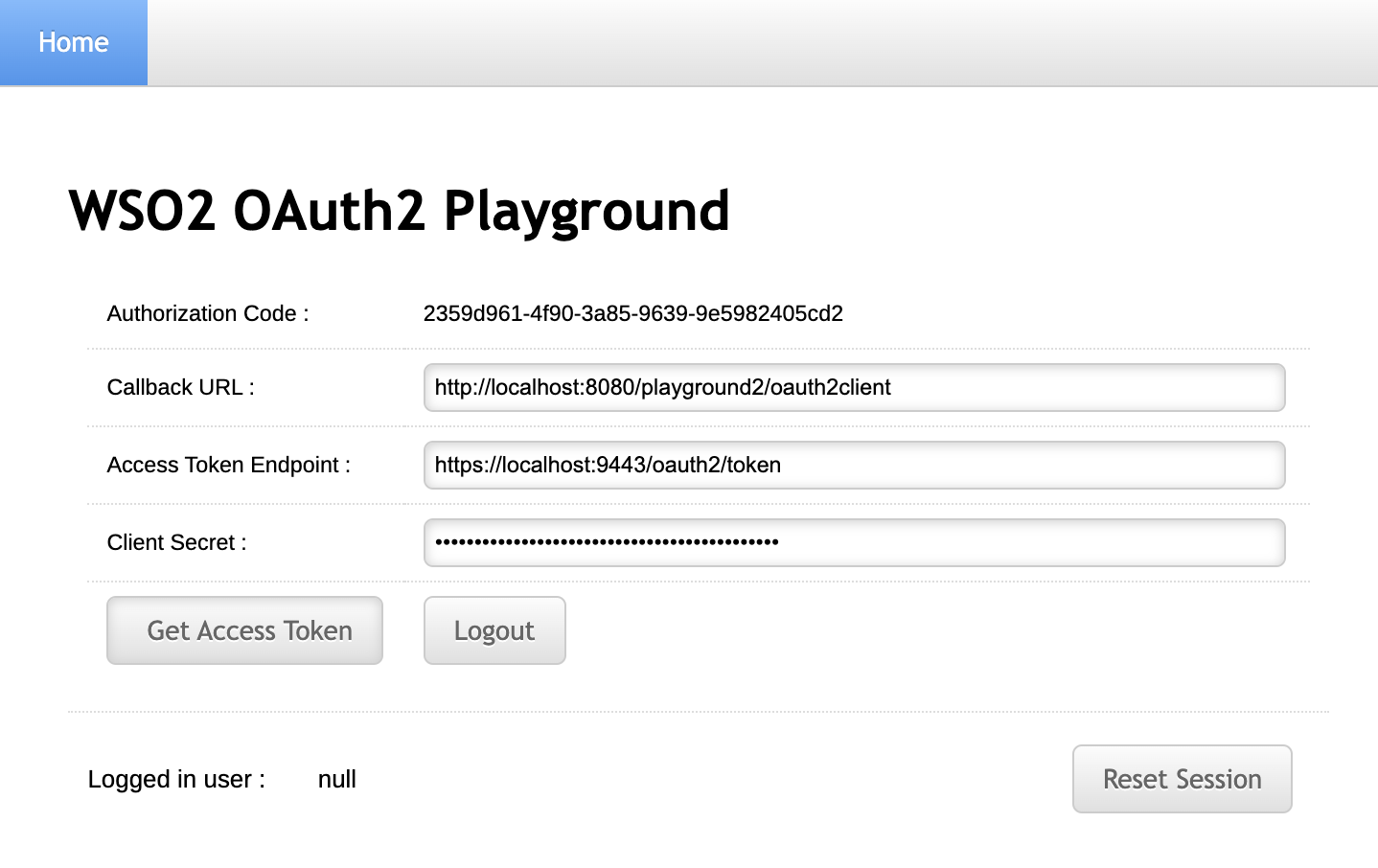

  5. Enter the TOTP and click Continue. ACR-based login successful

  6. Click Get Access Token and proceed to obtain the access token.

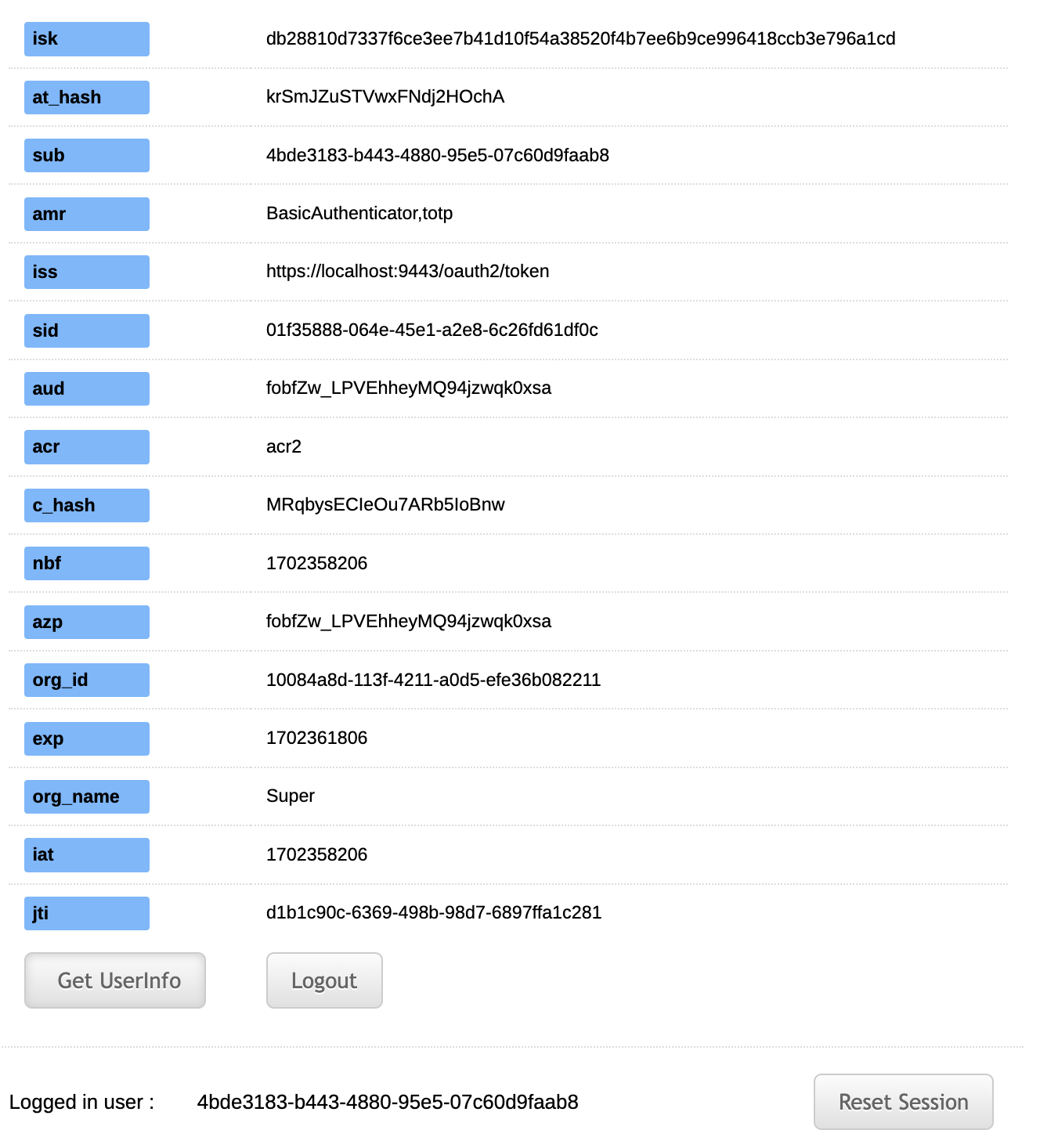

    ACR-based access token


    Authentication Method Reference (AMR) value found in the access token provides information about the authentication methods that are used to assert the authenticity of the user.

    The AMR values for the relevant request are BasicAuthenticator and totp which were the methods used for authenticaion.

  7. Logout from the application and try this flow with different ACR values.


    Try this flow using the ACR value acr3 which will then prompt the user for steps 1 and 3 (basic authentication and passkeys).
