Configure ELK Alerts

The following guide shows you how to configure alerts in ELK.

Prerequisite

Configure ELK Analytics in WSO2 Identity Server.

Create Elasticsearch Transforms

Elasticsearch transforms are used to capture the alert events from the raw event data. Learn more about transforms in the elastic documentation.

  1. Execute the following cURL commands to create the ELK transforms.

    • Long session alert

      Request Format

      curl -L -X PUT https://{ELASTICSEARCH_HOST}/_transform/wso2-iam-alert-long-session -H 'Authorization: Basic {ELASTICSEARCH_BASIC_AUTH_HEADER}' -H 'Content-Type: application/json' --data-raw '{"source":{"index":["wso2-iam-session-raw*"],"runtime_mappings":{"time_elapsed":{"type":"long","script":"def retval = 0;def current_time = new Date().getTime(); def termination = doc['''event.payloadData.terminationTimestamp'''].value; def start = doc['''event.payloadData.startTimestamp'\''].value; def action = doc['\''event.payloadData.action'\''].value; if (current_time > termination || action == 0) {retval = (termination - start) / (1000 * 60);} else if (action == 1 || action == 2){retval = (current_time - start) / (1000 * 60);} emit(retval);"},"isActive":{"type":"long","script":"def current_time = new Date().getTime();if(doc['''event.payloadData.terminationTimestamp'''].value > current_time){emit(1);} else {emit(0);}"}},"query":{"bool":{"must":[{"range":{"@timestamp":{"gte":"now-7d"}}},{"match":{"event.payloadData.rememberMeFlag":true}}]}}},"dest":{"index":"wso2-iam-alert-session"},"sync":{"time":{"field":"@timestamp","delay":"60s"}},"pivot":{"group_by":{"username":{"terms":{"field":"event.payloadData.username.keyword"}},"tenant_domain":{"terms":{"field":"event.payloadData.tenantDomain.keyword"}}},"aggregations":{"latest_session":{"top_metrics":{"metrics":[{"field":"time_elapsed"}],"sort":{"@timestamp":"desc"}}},"active":{"top_metrics":{"metrics":[{"field":"isActive"}],"sort":{"isActive":"desc"}}},"latest_timestamp":{"top_metrics":{"metrics":[{"field":"@timestamp"}],"sort":{"@timestamp":"desc"}}},"time_elapsed_avg":{"avg":{"field":"time_elapsed"}},"is_long":{"bucket_script":{"buckets_path":{"duration_avg":"time_elapsed_avg","duration":"latest_session.time_elapsed","active_status":"active.isActive"},"script":"if((params.duration > (params.duration_avg * {PERCENTAGE} / 100) || params.duration > {DURATION}) && params.active_status == 1) return 1; else return 0;"}}}}}'


      Sample Request

      curl -L -X PUT https://localhost:9200/_transform/wso2-iam-alert-long-session -H 'Authorization: Basic d3NvMnVzZXI6Y2hhbmdlbWU=' -H 'Content-Type: application/json' --data-raw '{"source":{"index":["wso2-iam-session-raw*"],"runtime_mappings":{"time_elapsed":{"type":"long","script":"def retval = 0;def current_time = new Date().getTime(); def termination = doc['''event.payloadData.terminationTimestamp'''].value; def start = doc['''event.payloadData.startTimestamp'''].value; def action = doc['''event.payloadData.action'''].value; if (current_time > termination || action == 0) {retval = (termination - start) / (1000 * 60);} else if (action == 1 || action == 2){retval = (current_time - start) / (1000 * 60);} emit(retval);"},"isActive":{"type":"long","script":"def current_time = new Date().getTime();if(doc['''event.payloadData.terminationTimestamp'''].value > current_time){emit(1);} else {emit(0);}"}},"query":{"bool":{"must":[{"range":{"@timestamp":{"gte":"now-7d"}}},{"match":{"event.payloadData.rememberMeFlag":true}}]}}},"dest":{"index":"wso2-iam-alert-session"},"sync":{"time":{"field":"@timestamp","delay":"60s"}},"pivot":{"group_by":{"username":{"terms":{"field":"event.payloadData.username.keyword"}},"tenant_domain":{"terms":{"field":"event.payloadData.tenantDomain.keyword"}}},"aggregations":{"latest_session":{"top_metrics":{"metrics":[{"field":"time_elapsed"}],"sort":{"@timestamp":"desc"}}},"active":{"top_metrics":{"metrics":[{"field":"isActive"}],"sort":{"isActive":"desc"}}},"latest_timestamp":{"top_metrics":{"metrics":[{"field":"@timestamp"}],"sort":{"@timestamp":"desc"}}},"time_elapsed_avg":{"avg":{"field":"time_elapsed"}},"is_long":{"bucket_script":{"buckets_path":{"duration_avg":"time_elapsed_avg","duration":"latest_session.time_elapsed","active_status":"active.isActive"},"script":"if((params.duration > (params.duration_avg * 150 / 100) || params.duration > 15) && params.active_status == 1) return 1; else return 0;"}}}}}'

      Response
      {"acknowledged": true}


      Note

      Replace {ELASTICSEARCH_HOST}, {ELASTICSEARCH_BASIC_AUTH_HEADER}, {PERCENTAGE}, and {DURATION} to match your settings

    • Suspicious login alert

      Request Format

      curl -L -X PUT https://{ELASTICSEARCH_HOST}/_transform/wso2-iam-alert-suspicious-login -H 'Authorization: Basic {ELASTICSEARCH_BASIC_AUTH_HEADER}' -H 'Content-Type: application/json' --data-raw '{"source":{"index":["wso2-iam-auth-raw*"]},"dest":{"index":"wso2-iam-alert-auth"},"sync":{"time":{"field":"@timestamp","delay":"60s"}},"pivot":{"group_by":{"event.payloadData.username":{"terms":{"field":"event.payloadData.username.keyword"}},"event.payloadData.tenantDomain":{"terms":{"field":"event.payloadData.tenantDomain.keyword"}},"event.payloadData.userStoreDomain":{"terms":{"field":"event.payloadData.userStoreDomain.keyword"}},"@timestamp":{"date_histogram":{"field":"@timestamp","fixed_interval":"5m"}}},"aggregations":{"filter_success":{"filter":{"bool":{"must":[{"match":{"event.payloadData.authStepSuccess":true}}]}}},"filter_failed":{"filter":{"bool":{"must":[{"match":{"event.payloadData.authStepSuccess":false}}]}}},"is_sus":{"bucket_script":{"buckets_path":{"failed":"filter_failed._count","success":"filter_success._count"},"script":"if(params.success >= {SUCCESS_COUNT} && params.failed >= {FAILURE_COUNT} && params.failed > params.success) return 1; else return 0;"}}}}}'

      Sample Request
      curl -L -X PUT https://localhost:9200/_transform/wso2-iam-alert-suspicious-login -H 'Authorization: Basic d3NvMnVzZXI6Y2hhbmdlbWU=' -H 'Content-Type: application/json' --data-raw '{"source":{"index":["wso2-iam-auth-raw*"]},"dest":{"index":"wso2-iam-alert-auth"},"sync":{"time":{"field":"@timestamp","delay":"60s"}},"pivot":{"group_by":{"event.payloadData.username":{"terms":{"field":"event.payloadData.username.keyword"}},"event.payloadData.tenantDomain":{"terms":{"field":"event.payloadData.tenantDomain.keyword"}},"event.payloadData.userStoreDomain":{"terms":{"field":"event.payloadData.userStoreDomain.keyword"}},"@timestamp":{"date_histogram":{"field":"@timestamp","fixed_interval":"5m"}}},"aggregations":{"filter_success":{"filter":{"bool":{"must":[{"match":{"event.payloadData.authStepSuccess":true}}]}}},"filter_failed":{"filter":{"bool":{"must":[{"match":{"event.payloadData.authStepSuccess":false}}]}}},"is_sus":{"bucket_script":{"buckets_path":{"failed":"filter_failed._count","success":"filter_success._count"},"script":"if(params.success >= 1 && params.failed >= 2 && params.failed > params.success) return 1; else return 0;"}}}}}'

      Response
      {"acknowledged": true}


      Note

      Replace {ELASTICSEARCH_HOST}, {ELASTICSEARCH_BASIC_AUTH_HEADER}, {SUCCESS_COUNT}, and {FAILURE_COUNT} to match your settings.

  2. Login to Kibana as an administrator.

  3. On the left navigation panel, under Management click Stack Management.

  4. Under Stack Management > Data, click Transforms to view the newly created transforms named wso2-iam-alert-suspicious-login and wso2-iam-alert-long-session.

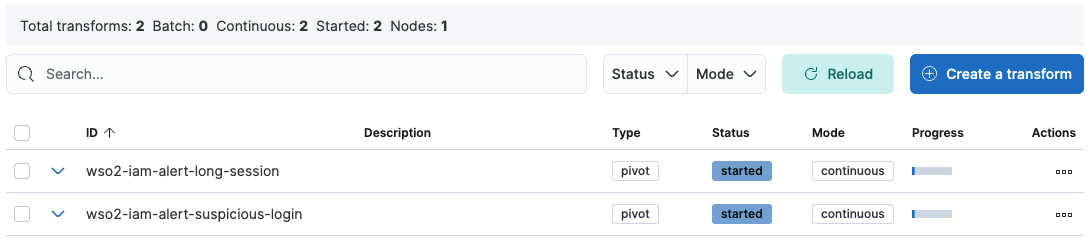

    Alert transform configuration

  5. For both transforms, click the icon under Actions and click Start.

Configure Alert Dashboards

Alert dashboards display long sessions and suspicious login alerts. Follow the steps below to configure the ELK Alert Dashboard.

  1. Generate encryption keys for Kibana using the following command.
    {KIBANA_HOME}/bin/kibana-encryption-keys generate

  2. Open the kibana.yml file found in the <KIBANA_HOME>/config directory.
  3. Copy the generated keys and paste them at the bottom of the kibana.yml file.
  4. Restart Kibana.
  5. Download the following file.
  6. Log in to Kibana and under Stack Management > Kibana, click Saved Objects.
  7. Click Import, add the downloaded file as an import object, and click Import.
  8. Navigate to the Dashboard section to view the created Alert Dashboard.

Configure Alert Connectors

Alert Connectors can be used to receive notifications for the events that can be viewed from the Alert Dashboard.

Connectors

  • Email : Send an email from your server.
  • IBM Resilient : Create an incident in IBM Resilient.
  • Index : Index data into Elasticsearch.
  • Jira : Create an incident in Jira.
  • Microsoft Teams : Send a message to a Microsoft Teams channel.
  • PagerDuty : Send an event in PagerDuty.
  • ServerLog : Add a message to a Kibana log.
  • ServiceNow ITSM : Create an incident in ServiceNow.
  • ServiceNow SecOps : Create a security incident in ServiceNow.
  • ServiceNow ITOM : Create an event in ServiceNow.
  • Slack :Send a message to a Slack channel or user.
  • Swimlane : Create an incident in Swimlane.
  • Webhook : Send a request to a web service.

Follow the steps below to configure alert connectors.

Prerequisite

Follow the Configure Alert Dashboards guide to import the artifact file to Kibana.

  1. Under Stack Management > Alerts and Insights, click Connectors.

  2. Click Create connector and create a connector of your preferred type by entering the required details.

  3. Associate an alert rule with the connector. To do so,

    1. Under Stack Management > Alerts and Insights, click Rules.

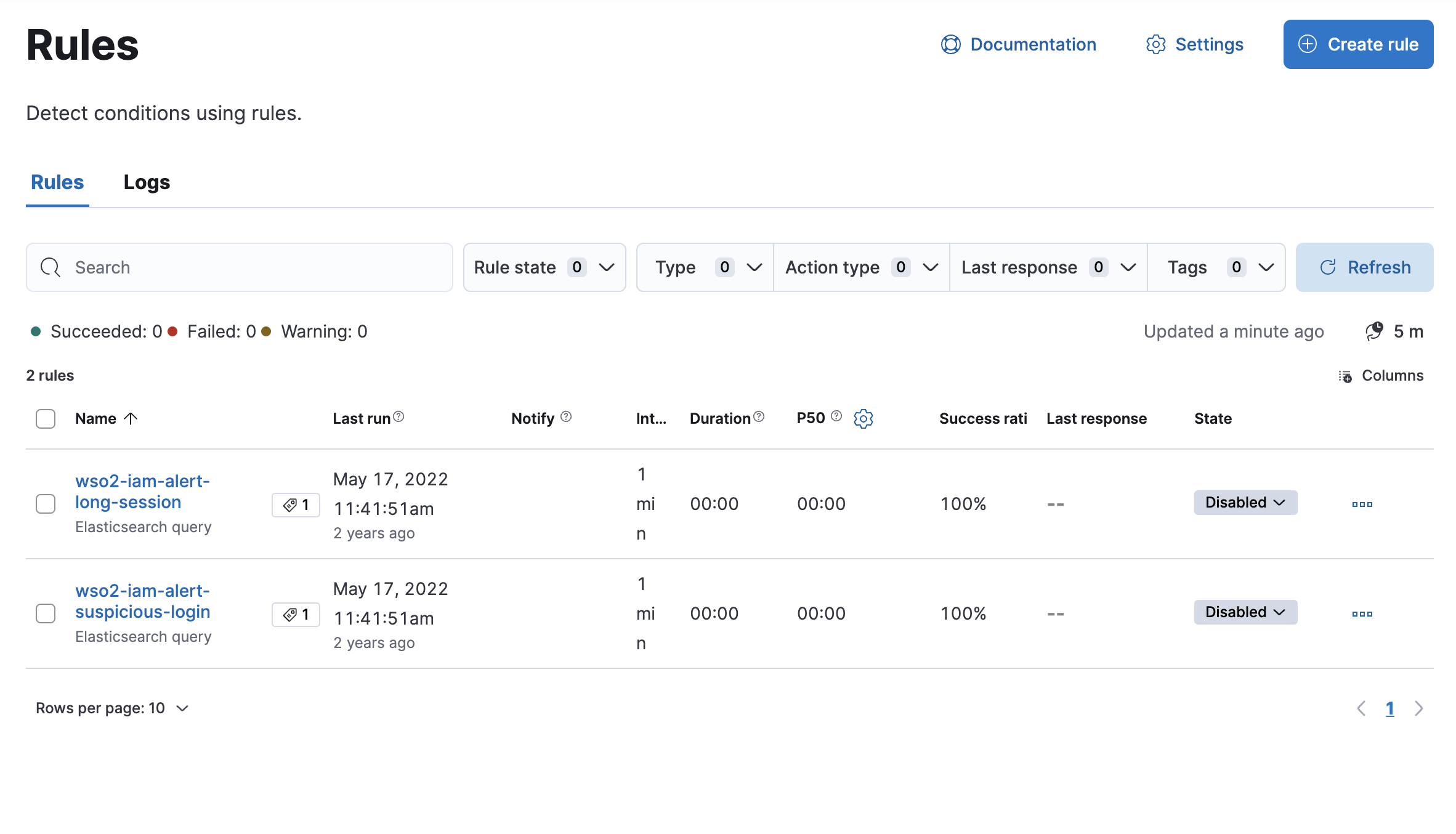

      Alert Connectors

    2. Navigate to the Rules tab and click on the Edit icon under a rule.

    3. Click the icon in the right-most column to find additional options and click Edit rule.

    4. Under Actions, provide the connectors that you configured above.

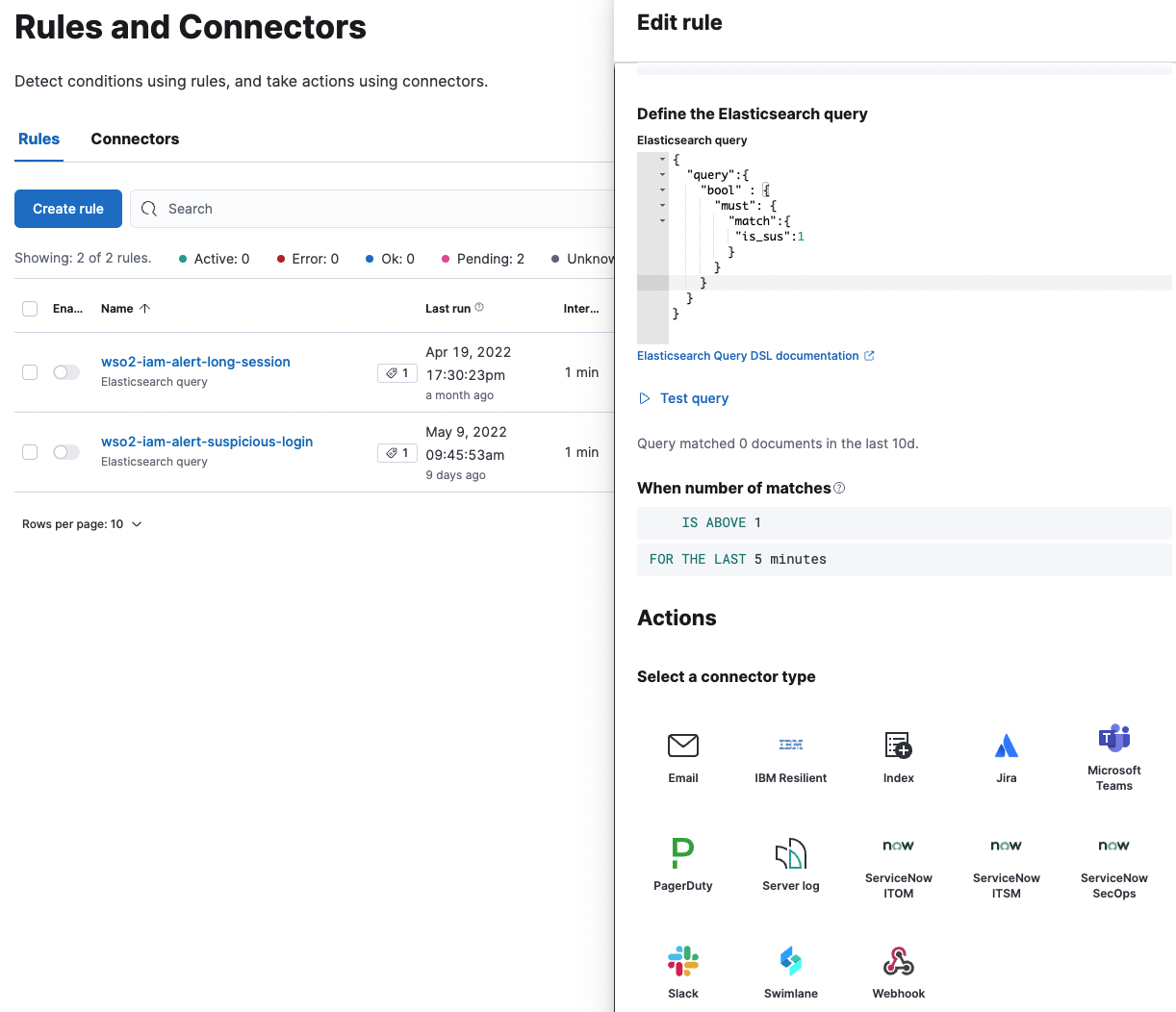

      Alert Rule Connectors

    5. Change the alert rule and other parameters to your preference and click Save.

    6. Set the State of the alert rules to Enabled.
