Sample OIDC Java EE web app

By following this guide, you will be able to deploy a Java EE web application locally and secure it with OpenID Connect.


  • Apache tomcat 9.x or 8.x

    If you don't have it, install Apache tomcat.

  • A user account in the WSO2 Identity Server

    If you don't already have one, create a user account in the WSO2 Identity Server.

Register the app

Follow the steps given below to register the sample Java EE web application in WSO2 Identity Server.

  1. On the WSO2 Identity Server Console, go to Applications.

  2. Click New Application and select Traditional Web Application:

    Select app type in the WSO2 Ifentity Server

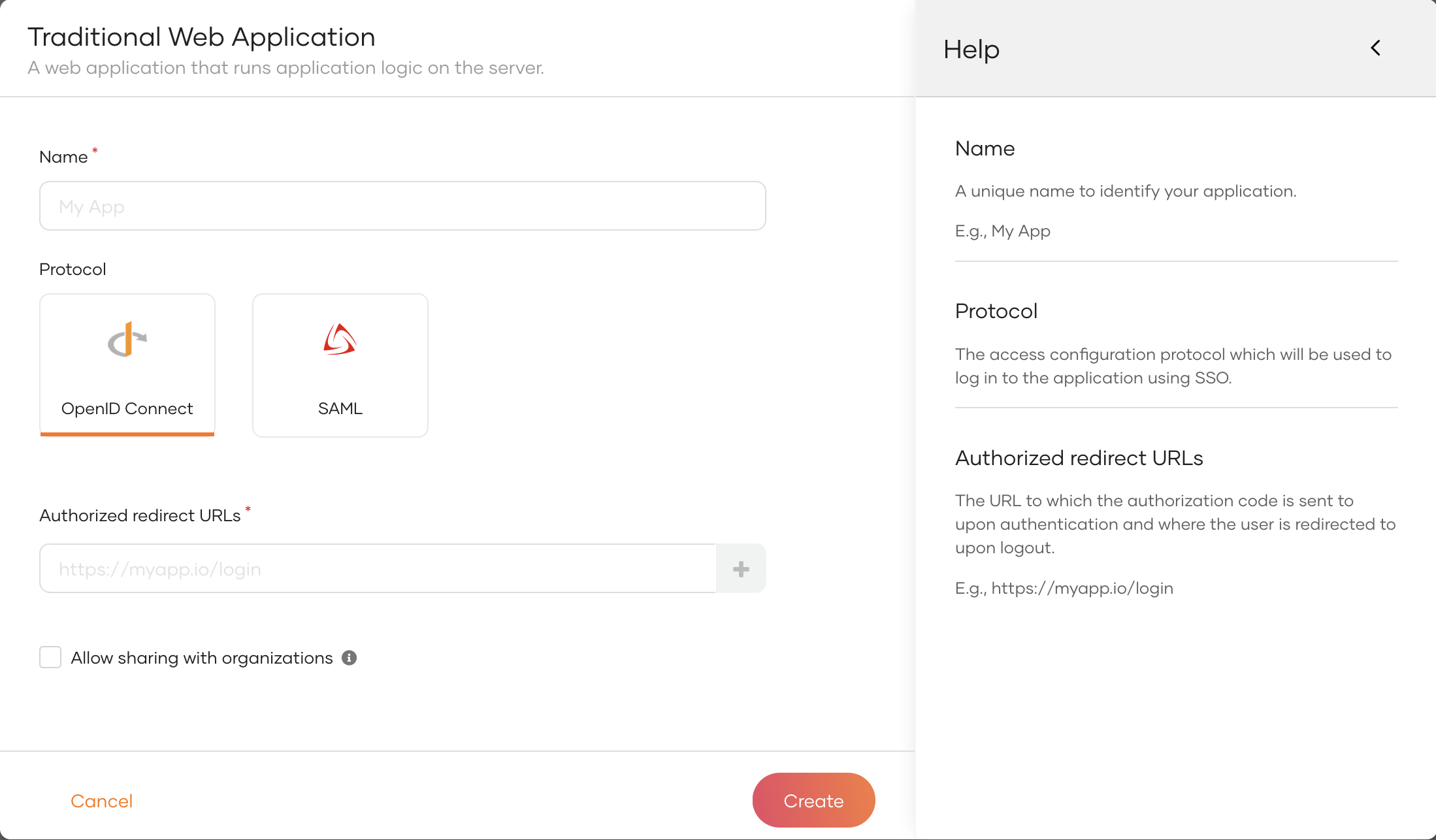

  3. Enter the following details:

    Create a new web app

    Name Give a unique name to identify your application.
    Protocol Select OpenID Connect.
    Authorized redirect URLs The URL to which the user is redirected after a successful login. Use the following URL for this sample app:


  4. Click Create to complete the registration.

  5. Go to the Protocol tab and take note of the Client ID and the Client secret. You will need them to configure the application later.

    Client ID and client secret


To provide a better experience for the user, it is recommended to configure an access URL for the application. You can set an access URL from the General tab of the application. (For this sample application, the access URL is https://localhost:8080/oidc-sample-app).

The access URL is used,

  • in the application catalog and discovery flows.
  • to redirect the user back to the application in the following scenarios.
    • if the login page times out
    • after a password reset
    • after the self sign-up verification
  • to re-initiate the login flow if the login flow fails.

Download the sample

Click the button below to download the sample. You can also choose to view the source before doing so.

Configure the sample

Follow the steps given below to configure the sample app.

  1. Move the war file that you downloaded to the {TOMCAT_HOME}/webapps folder where {TOMCAT_HOME} is the home directory of your Tomcat server.

  2. Open a terminal, navigate to the {TOMCAT_HOME}/bin folder, and start the Tomcat server using the following command:

    sh start


    This will extract the contents of the war file.
    If your Tomcat server is set to auto-deploy applications, you can skip this step.

  3. Go to the {TOMCAT_HOME}/webapps/oidc-sample-app/WEB-INF/classes folder and open the file in a text editor.

  4. Update the following in the file:

    consumerKey={client ID}
    consumerSecret={client secret}
    Configuration Description
    consumerKey The client id of the registered application.
    consumerSecret The client secret of the registered application.

    The list of OIDC scopes that are used for requesting user information. You can add OIDC scopes such as profile and email in a comma-separated list as follows:

    issuer Issuer endpoint of the WSO2 Identity Server used for id token validation: https://localhost:9443/oauth2/token
    authorizeEndpoint The authorization endpoint of the WSO2 Identity Server: https://localhost:9443/oauth2/authorize
    logoutEndpoint The logout endpoint of the WSO2 Identity Server: https://localhost:9443/oidc/logout
    tokenEndpoint The token endpoint of the WSO2 Identity Server: https://localhost:9443/oauth2/token
    jwksEndpoint The jwks endpoint of the WSO2 Identity Server: https://localhost:9443/oauth2/jwks

  5. On your terminal, navigate to the {TOMCAT_HOME}/bin folder and run the following commands to restart the Tomcat server for the configurations to take effect:

    sh stop
    sh start

Update the java keystore

By default, tomcat is using the default Java keystore (cacerts) to build the SSL connection. In WSO2 Identity Server, the default certificate is a self signed certificate. This certificate needs to be added to the Java keystore. Please follow the given steps below to extract the public key from WSO2 Identity Server keystore and import it to the Java keystore.

  1. Export the public key from WSO2 Identity Server keystore.

    • Command

      keytool -export -alias {{ CERT_ALIAS }} -file {{ CERT_NAME }} -keystore {{ PATH_TO_KEYSTORE }} -storepass {{ KEYSTORE_PASSWORD }}

    • Sample

      keytool -export -alias wso2carbon -file carbon_public2.crt -keystore wso2carbon.jks -storepass wso2carbon


      The default keystore of WSO2 Identity Server can be found in {{ IS_HOME }}/repository/resources/security directory.

  2. Convert the certificate to X509 format.

    • Command

      openssl x509 -in {{ CERT_NAME }} -inform der -outform pem -out {{ PEM_CERT_NAME }}

    • Sample

      openssl x509 -in carbon_public2.crt -inform der -outform pem -out certificate.pem

  3. Import the created .pem certificate to Java keystore.

    • Command

      sudo keytool -import -trustcacerts -keystore {{ PATH_TO_CACERTS_KEYSTORE }} -storepass {{ CACERTS_PASSWORD }} -noprompt -alias {{ CERT_ALIAS }} -file {{ PEM_CERT_PATH }}

    • Sample

      sudo keytool -import -trustcacerts -keystore $JAVA_HOME/lib/security/cacerts -storepass changeit -noprompt -alias wso2carbon -file certificate.pem

  4. After importing the certificate, restart the Tomcat server in order to fetch the latest certificates.

    sh stop
    sh start

Run the sample

Follow the steps given below to run the sample.

  1. Access the application using the following URL: http://localhost:8080/oidc-sample-app/index.html.

  2. Click Login. You will be redirected to the WSO2 Identity Server login page.

    WSO2 Identity Server sign in page

  3. Enter the credentials of your user account and click Sign In.

    Extend your login session

    By default, the user login session is active for only 15 minutes. You can extend the session to 14 days by selecting the Remember me on this computer option provided at the login screen of your application.
