Implement login using the Device Authorization flow

See the instructions given below to implement login with OpenID Connect in your application by using the device authorization flow.

Refer how the device authorization flow work for more information.

Prerequisites

[Optional] Update device flow configurations

The device authorization grant is available by default in WSO2 Identity Server. If you need to update configurations, navigate to <IS_HOME>/repository/conf/deployment.toml and update the configurations in [oauth.grant_type.device_code] section as required.

[oauth.grant_type.device_code]
key_length = 7
expiry_time = "10m"
polling_interval = "5s"
key_set = "BCDFGHJKLMNPQRSTVWXYZbcdfghjklmnpqrstvwxyz23456789"
Parameter Description
key_length The length of the user code.
expiry_time The expiry time of the user code and the device code.
polling_interval The minimum delay of the client between each polling request to the token endpoint.
key_set The set of characters that is used to generate the user code.

To get started, you need to have an application registered in WSO2 Identity Server. If you don't already have one, register a web app with OIDC.

Note

Note that only users can log in to business applications. Therefore, to test login on your application, you need a user account.

Get the required codes

First, your app must initiate a login request to the authorization endpoint of WSO2 Identity Server. After redirecting to WSO2 Identity Server, the user should be prompted with a login page if the user is not authenticated.

Device authorization endpoint

https://localhost:9443/oauth2/device_authorize

Request format

curl -k -X POST
-H 'Content-Type: application/x-www-form-urlencoded'
--data-urlencode 'client_id=<CLIENT_ID>'
https://localhost:9443/oauth2/device_authorize

Request sample

curl -k -X POST
-H 'Content-Type: application/x-www-form-urlencoded'
--data-urlencode 'client_id=bbwJEayR_OMwPkAgm9VOMzLnYLga'
https://localhost:9443/oauth2/device_authorize

Upon successful execution of the request, the WSO2 Identity Server returns the user_code, devicce_code and the verification_uri to the client device.

Sample response

{
    "user_code":"s2DqSNK",
    "device_code":"d3fe0db1-2334-48fa-b7d9-821ecfad10d5","interval":5000,"verification_uri_complete":"https://localhost:9443/authenticationendpoint/device.do?user_code=s2DqSNK",
    "verification_uri":"https://localhost:9443/authenticationendpoint/device.do",
    "expires_in":3600
}

Authorize the client device

The client device shows the received codes and the verification URI to the user.

To authorize the client device:

  1. The user accesses the verification_uri through a device with no input constraints.

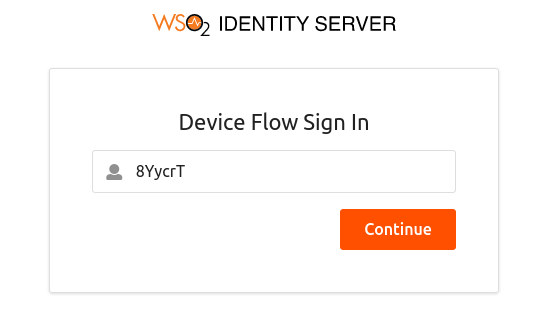

  2. The user enters the user_code on the prompted window.

    Enter device cpde prompt

    Note

    The user code is for one-time use only. If your code is expired or if you have entered a wrong user code, get a new user code by following the previous steps.

  3. If step 2 is successful, the user will be prompted to enter credentials. Enter credentials and click Continue.

Once you log in successfully, the user will be redirected to the configured callback URL of the service provider.

Get access token

While the user reviews the authorization request, the client device keeps polling the token endpoint.

Use the following cURL to obtain an access token

Token endpoint

https://localhost:9443/oauth2/token

Request format

curl -k -X POST
-H 'Content-Type: application/x-www-form-urlencoded'
--data-urlencode 'grant_type=urn:ietf:params:oauth:grant-type:device_code'
--data-urlencode 'client_id=<CLIENT_ID>'
--data-urlencode 'device_code=<DEVICE_CODE>'
https://localhost:9443/oauth2/token

Request sample

curl -k -X POST
-H 'Content-Type: application/x-www-form-urlencoded'
--data-urlencode 'grant_type=urn:ietf:params:oauth:grant-type:device_code'
--data-urlencode 'client_id=bbwJEayR_OMwPkAgm9VOMzLnYLga'
--data-urlencode 'device_code=7411f395-2f3a-4cb5-8562-d7059d69c66f'
https://localhost:9443/oauth2/token

Sample response

{
    "access_token":"74d610ab-7f4a-3b11-90e8-279d76644fc7",
    "refresh_token":"fdb58069-ecc7-3803-9b8b-6f2ed85eff19",
    "token_type":"Bearer",
    "expires_in":3042
}
