Configure Pre-Issue Access Token Action with Choreo
5 mins

Using Choreo

In this section, we will walk through how to implement and deploy the Pre-Issue Access Token Action using Choreo based on the scenario discussed below.

This implementation is done using Node.js and showcases how to enhance access control by incorporating geo-location and IP reputation intelligence into the token issuance workflow.

In this guide, the scenario we will implement demonstrates a real-world use case involving the Pre-Issue Access Token action:

• Before issuing an access token, the system will check the originating country or region of the request. If the request comes from a restricted location, the token issuance will be blocked immediately.
• If the country is allowed, the system will query the IP address against AbuseIPDB to assess its abuse confidence score. Based on the risk level (e.g., high abuse score or suspicious access time), the access token’s validity period may be reduced—or the token may be blocked altogether.

This use case demonstrates how you can incorporate location and risk-based intelligence into token issuance workflows, enhancing security posture and minimizing unauthorized access.

Set Up Your Node.js Project

Create a new project folder on your local machine. Open your terminal or command prompt and create a new directory where your project files will be stored. You can do this by running:

mkdir token-policy-validator

This command creates a new folder named token-policy-validator. Then, move inside that folder by running:

cd token-policy-validator

Now, any new files or commands you use will be applied inside this project folder. Once you're inside the folder, run:

npm init -y

This will create a file named package.json automatically. The package.json file is very important, it keeps track of your project details (like name, version, and dependencies) and will help others (or platforms like Choreo) understand how to run your project.

The -y flag automatically fills in default values for you, so you don’t need to answer any setup questions manually. Please make sure to open the generated package.json file and set the value of type to module.

Install the required dependencies. In this guide, we use express to build the service, validator for input validation, axios to make HTTP requests, and Node.js built-in crypto for secure hashing.

Still inside your project folder, install the necessary libraries by running:

npm install dotenv express geoip-country

dotenv: A zero-dependency module that loads environment variables from a .env file into process.env, helping you manage configuration settings securely and cleanly.

express: A fast, lightweight framework that makes building web servers in Node.js very simple and structured.

geoip-country: A lightweight Node.js library that uses a local GeoIP database to quickly determine the country associated with a given IP address. It requires no external API calls, making it fast and suitable for simple geolocation checks based on IP.

This command will download the libraries and save them inside a folder called node_modules and also update your package.json file under dependencies, showing that your project uses these libraries.

Create a file named index.js and add the following basic structure: In your project folder, create a new file called index.js. (You can right-click and choose “New File” if using a code editor like VS Code, or create it via terminal using the command touch index.js.)

import express from "express";
import https from "https";
import geoip from "geoip-country";
import dotenv from "dotenv";

dotenv.config();

const app = express();
app.use(express.json());

const PORT = 3000;
const BLOCKED_COUNTRIES = ["KP", "IR", "RU", "SY", "CN"];
const ABUSEIPDB_API_KEY = process.env.ABUSEIPDB_API_KEY;
const ABUSEIPDB_ENDPOINT = "https://api.abuseipdb.com/api/v2/check";

const EXPIRY_WORKING_HOURS = 900; // 15 minutes
const EXPIRY_NON_WORKING_HOURS = 300; // 5 minutes

After saving this file, you will have a basic server ready that you can expand by adding routes (like /validate-token-policy) in the next steps.

Implement the Token Validation Policy Logic

Several helper functions are used to support the Pre-Issue Access Token logic in this implementation.

First, a function retrieves the client’s IP address from the incoming request by inspecting a custom header (x-client-source-ip) included in the request metadata.

This IP address is then used in two critical checks. One function performs a country lookup using a geo-location database to determine the origin of the request; if the country is restricted, token issuance is denied.

Another function queries AbuseIPDB to retrieve an abuse confidence score for the IP address, helping identify potentially malicious sources. In addition, a helper function checks if the request falls within standard working hours (9 AM–5 PM UTC), which can be used to detect anomalous behavior based on access time.

Finally, utility functions are used to construct either a success or failure response, depending on the outcome of these evaluations.

Together, these helpers enable a dynamic, risk-aware decision-making process during access token issuance.

function getClientIp(req) {
  try {
    const headers = req.body?.event?.request?.additionalHeaders || [];
    const ipHeader = headers.find((h) => h.name.toLowerCase() === "x-client-source-ip");
    return ipHeader?.value?.[0] || null;
  } catch (e) {
    console.warn("Failed to parse client IP:", e.message);
    return null;
  }
}

function lookupCountry(ip) {
  const geo = geoip.lookup(ip);
  return geo?.country || "UNKNOWN";
}

function callAbuseIPDB(ip) {
  const url = `${ABUSEIPDB_ENDPOINT}?ipAddress=${ip}`;
  const options = {
    method: "GET",
    headers: {
      Key: ABUSEIPDB_API_KEY,
      Accept: "application/json"
    }
  };

  return new Promise((resolve, reject) => {
    const req = https.request(url, options, (res) => {
      let data = "";
      res.on("data", (chunk) => data += chunk);
      res.on("end", () => {
        try {
          const parsed = JSON.parse(data);
          const score = parsed?.data?.abuseConfidenceScore ?? 0;
          resolve(score);
        } catch (err) {
          reject(new Error("Failed to parse AbuseIPDB response"));
        }
      });
    });

    req.on("error", (err) => {
      reject(err);
    });

    req.end();
  });
}

function isWorkingHours() {
  const hourUTC = new Date().getUTCHours();
  return (hourUTC >= 9 && hourUTC < 17); // 9 AM - 5 PM UTC
}

function denyResponse(reason) {
  return {
    actionStatus: "FAILED",
    failureReason: "access_denied",
    failureDescription: reason
  };
}

function allowResponse() {
  return {actionStatus: "SUCCESS"};
}

Implement the /validate-token-policy API endpoint by creating a POST API that listens for token issuance requests from WSO2 Identity Server.

Inside this API:

• Log the incoming request for debugging and traceability.
• Extract the client’s IP address from the request headers.
• If the IP address is missing or cannot be determined, deny the request by default.
• Use the IP address to resolve the originating country.
• If the country is on the restricted list, block the token issuance and return a denial response.
• Query AbuseIPDB to check the abuse confidence score of the IP address.
• If the score is high (indicating suspicious activity), deny the request.
• If the score is low, allow the token to be issued with default settings.
• If the score is moderate, dynamically adjust the token’s expiration based on whether the request was made during working hours or not.
• Handle any errors during the AbuseIPDB check gracefully by denying the request and logging the issue.

app.post("/validate-token-policy", async (req, res) => {
  console.log("Received request:", JSON.stringify(req.body, null, 2));

  const ip = getClientIp(req);
  if (!ip) {
    console.warn("No IP address found. Denying by default.");
    return res.json(denyResponse("Unable to determine client IP."));
  }

  console.log(`Client IP: ${ip}`);

  const country = lookupCountry(ip);
  console.log(`Resolved country: ${country}`);

  if (BLOCKED_COUNTRIES.includes(country)) {
    console.log(`Blocked due to restricted country: ${country}`);
    return res.json(denyResponse(`Access token issuance is blocked from your region (${country}).`));
  }

  try {
    const abuseScore = await callAbuseIPDB(ip);
    console.log(`Abuse Confidence Score: ${abuseScore}`);

    if (abuseScore > 75) {
      console.log(`Blocked due to high abuse score.`);
      return res.json(denyResponse("Access token issuance is blocked due to high IP risk."));
    }

    if (abuseScore < 25) {
      console.log("Low abuse score. Allowing.");
      return res.json(allowResponse());
    }

    const expiry = isWorkingHours() ? EXPIRY_WORKING_HOURS : EXPIRY_NON_WORKING_HOURS;
    console.log(`Allowing with expiry ${expiry} seconds`);

    return res.json({
      actionStatus: "SUCCESS",
      operations: [
        {
          op: "replace",
          path: "/accessToken/claims/expires_in",
          value: expiry.toString()
        }
      ]
    });
  } catch (err) {
    console.error("Error during AbuseIPDB lookup:", err.message);
    return res.json(denyResponse("Error checking IP reputation."));
  }
});

The final source code should look similar to the following.

import express from "express";
import https from "https";
import geoip from "geoip-country";
import dotenv from "dotenv";

dotenv.config();

const app = express();
app.use(express.json());

const PORT = 3000;
const BLOCKED_COUNTRIES = ["KP", "IR", "RU", "SY", "CN"];
const ABUSEIPDB_API_KEY = process.env.ABUSEIPDB_API_KEY;
const ABUSEIPDB_ENDPOINT = "https://api.abuseipdb.com/api/v2/check";

const EXPIRY_WORKING_HOURS = 900; // 15 minutes
const EXPIRY_NON_WORKING_HOURS = 300; // 5 minutes

function getClientIp(req) {
  try {
    const headers = req.body?.event?.request?.additionalHeaders || [];
    const ipHeader = headers.find((h) => h.name.toLowerCase() === "x-client-source-ip");
    return ipHeader?.value?.[0] || null;
  } catch (e) {
    console.warn("Failed to parse client IP:", e.message);
    return null;
  }
}

function lookupCountry(ip) {
  const geo = geoip.lookup(ip);
  return geo?.country || "UNKNOWN";
}

function callAbuseIPDB(ip) {
  const url = `${ABUSEIPDB_ENDPOINT}?ipAddress=${ip}`;
  const options = {
    method: "GET",
    headers: {
      Key: ABUSEIPDB_API_KEY,
      Accept: "application/json"
    }
  };

  return new Promise((resolve, reject) => {
    const req = https.request(url, options, (res) => {
      let data = "";
      res.on("data", (chunk) => data += chunk);
      res.on("end", () => {
        try {
          const parsed = JSON.parse(data);
          const score = parsed?.data?.abuseConfidenceScore ?? 0;
          resolve(score);
        } catch (err) {
          reject(new Error("Failed to parse AbuseIPDB response"));
        }
      });
    });

    req.on("error", (err) => {
      reject(err);
    });

    req.end();
  });
}

function isWorkingHours() {
  const hourUTC = new Date().getUTCHours();
  return (hourUTC >= 9 && hourUTC < 17); // 9 AM - 5 PM UTC
}

function denyResponse(reason) {
  return {
    actionStatus: "FAILED",
    failureReason: "access_denied",
    failureDescription: reason
  };
}

function allowResponse() {
  return {actionStatus: "SUCCESS"};
}

// Main route
app.post("/validate-token-policy", async (req, res) => {
  console.log("Received request:", JSON.stringify(req.body, null, 2));

  const ip = getClientIp(req);
  if (!ip) {
    console.warn("No IP address found. Denying by default.");
    return res.json(denyResponse("Unable to determine client IP."));
  }

  console.log(`Client IP: ${ip}`);

  const country = lookupCountry(ip);
  console.log(`Resolved country: ${country}`);

  if (BLOCKED_COUNTRIES.includes(country)) {
    console.log(`Blocked due to restricted country: ${country}`);
    return res.json(denyResponse(`Access token issuance is blocked from your region (${country}).`));
  }

  try {
    const abuseScore = await callAbuseIPDB(ip);
    console.log(`Abuse Confidence Score: ${abuseScore}`);

    if (abuseScore > 75) {
      console.log(`Blocked due to high abuse score.`);
      return res.json(denyResponse("Access token issuance is blocked due to high IP risk."));
    }

    if (abuseScore < 25) {
      console.log("Low abuse score. Allowing.");
      return res.json(allowResponse());
    }

    const expiry = isWorkingHours() ? EXPIRY_WORKING_HOURS : EXPIRY_NON_WORKING_HOURS;
    console.log(`Allowing with expiry ${expiry} seconds`);

    return res.json({
      actionStatus: "SUCCESS",
      operations: [
        {
          op: "replace",
          path: "/accessToken/claims/expires_in",
          value: expiry.toString()
        }
      ]
    });
  } catch (err) {
    console.error("Error during AbuseIPDB lookup:", err.message);
    return res.json(denyResponse("Error checking IP reputation."));
  }
});

app.listen(PORT, () => {
  console.log(`Server is running on port ${PORT}`);
});

Prepare for Choreo Deployment

Create a .env file to store sensitive information by adding a new file named .env in your project folder. The file is primarily used for local testing, but these are included separately in the Choreo deployment.

touch .env

In this file, save your AbuseIPDB API key securely, instead of putting them directly in your code.

ABUSEIPDB_API_KEY=your-abuseipdb-api-key

Run an Express Node Project Locally

Navigate to the root of your project and install all required dependencies using npm:

npm install

Once dependencies are installed, you can start the Express server using:

node index.js

Or, if a custom script is defined (e.g., dev), run:

npm run dev

This will start the server, and your API will be accessible on:

http://localhost:3000/<endpoint-name>

If you're using tools like nodemon for auto-reloading during development, make sure it's installed and used in the dev script.

Push Your Code to GitHub

First, initialize a Git repository in your project folder:

git init

Then, add all your project files to the Git repository. Make sure not to commit files containing sensitive information or unnecessary files, you can use the .gitignore file to exclude them.

git add .

Commit your changes with a message:

git commit -m "Initial commit for Choreo deployment"

Finally, link your local Git repository to a remote repository (e.g., on GitHub) and push your code:

git remote add origin https://github.com/yourusername/yourrepository.git
git push -u origin master

This makes your code available in the cloud and allows easy collaboration or version control.

Deploy on Choreo

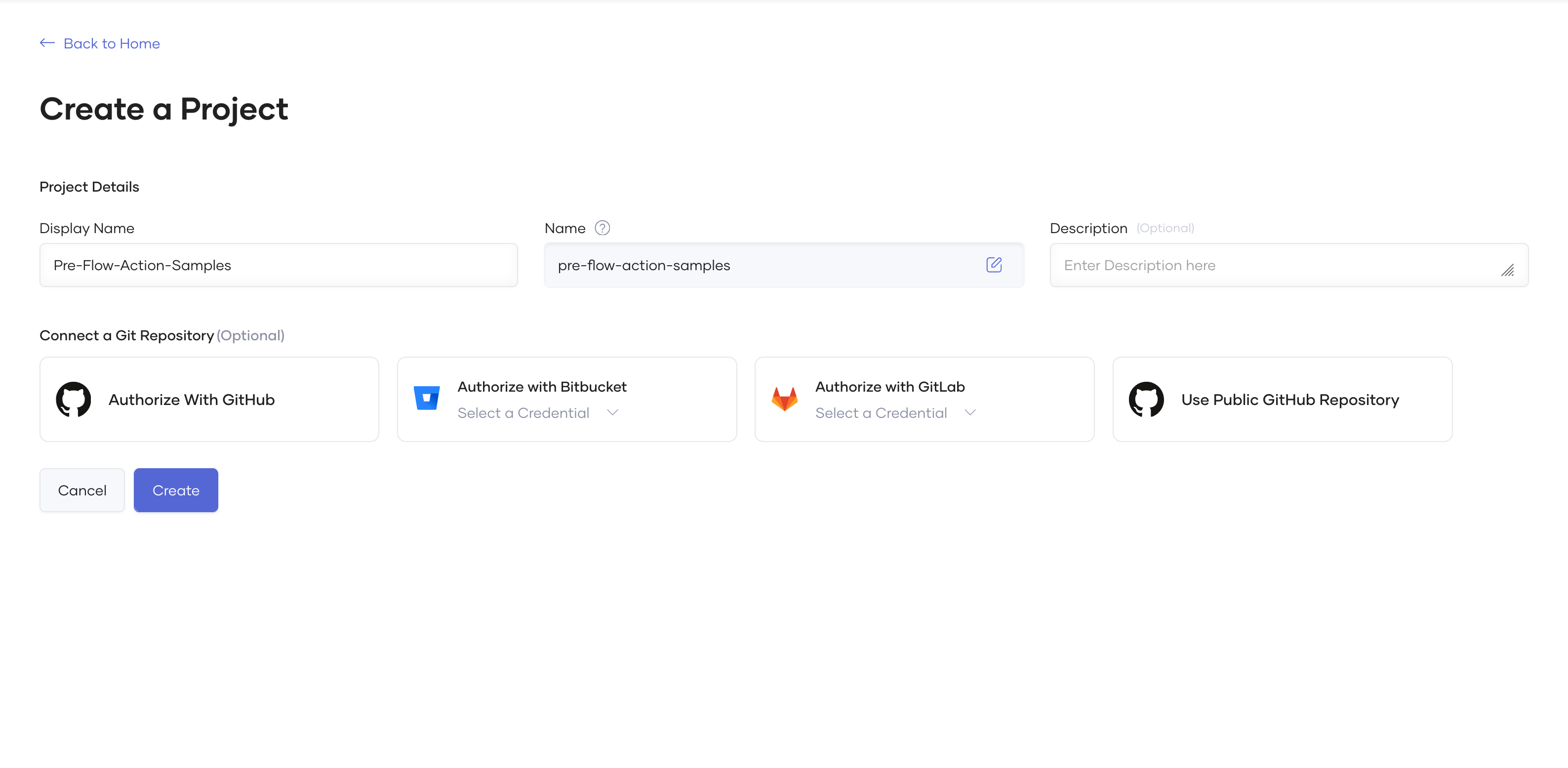

Log in to your Choreo Console and create a new project by signing in to your Choreo account and creating a new project from the dashboard.

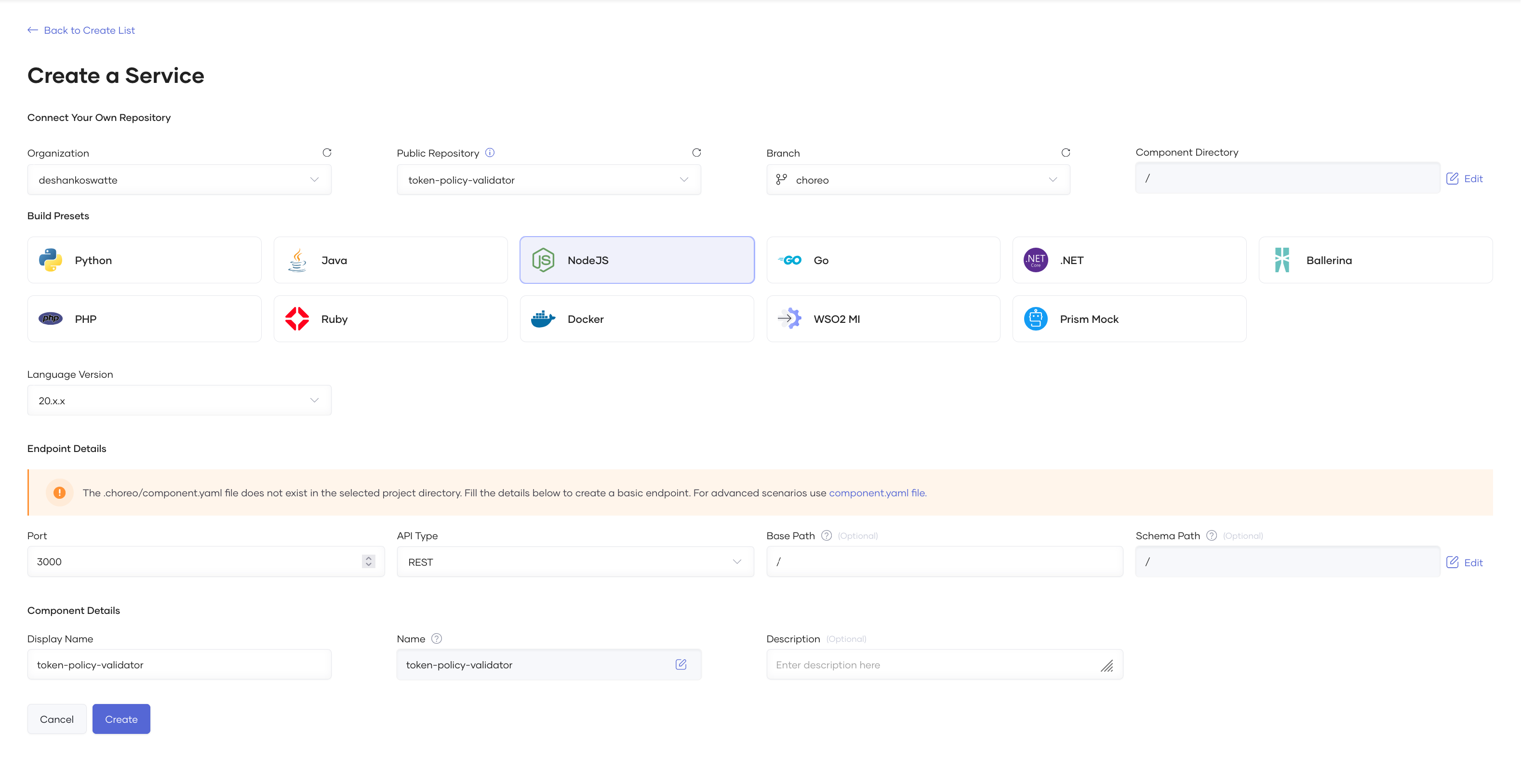

Within the created project, go to the "Components" section and create a new component. Select 'API Service' as the component type.

Link your GitHub account and select the token-policy-validator repository that contains your code. Choreo will use this to build the project.

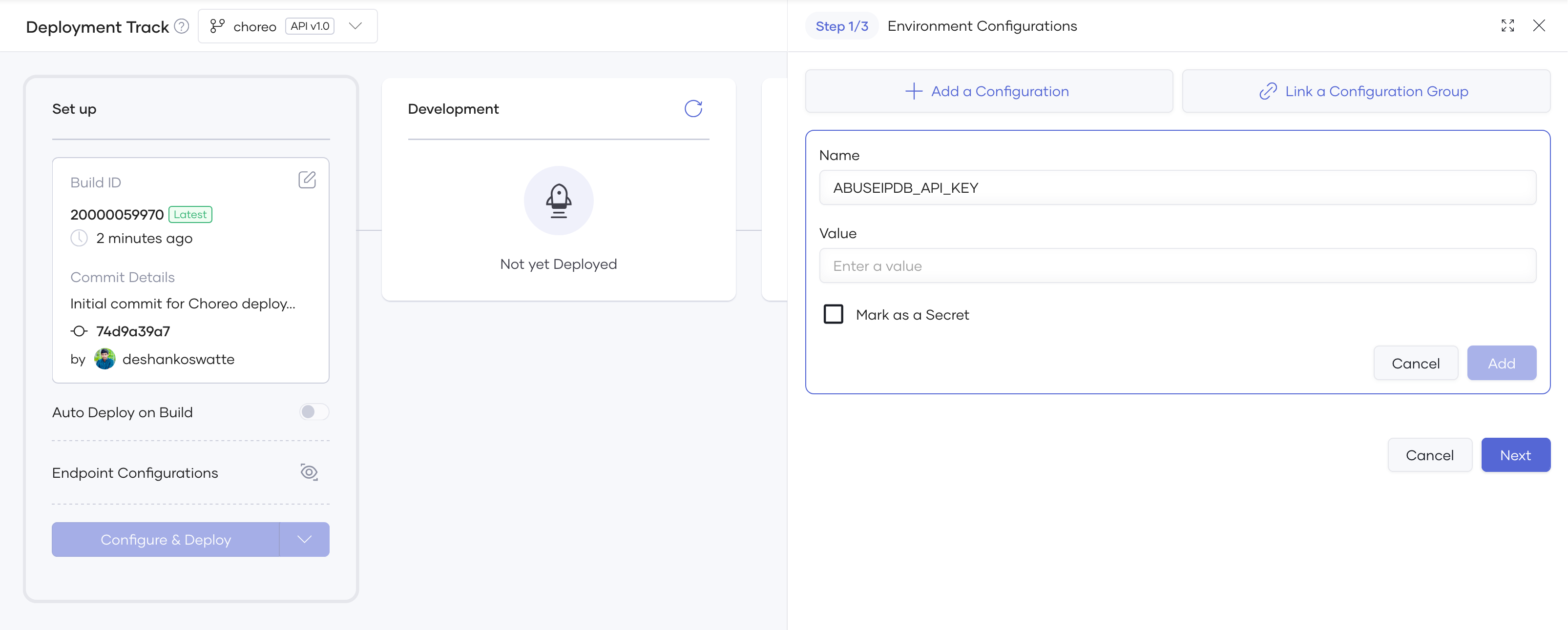

After the build is complete, navigate to the "Deploy" tab, click 'Configure and Deploy', and provide values for any required environment variables (like AbuseIPDB API key) so that they will be available during execution.

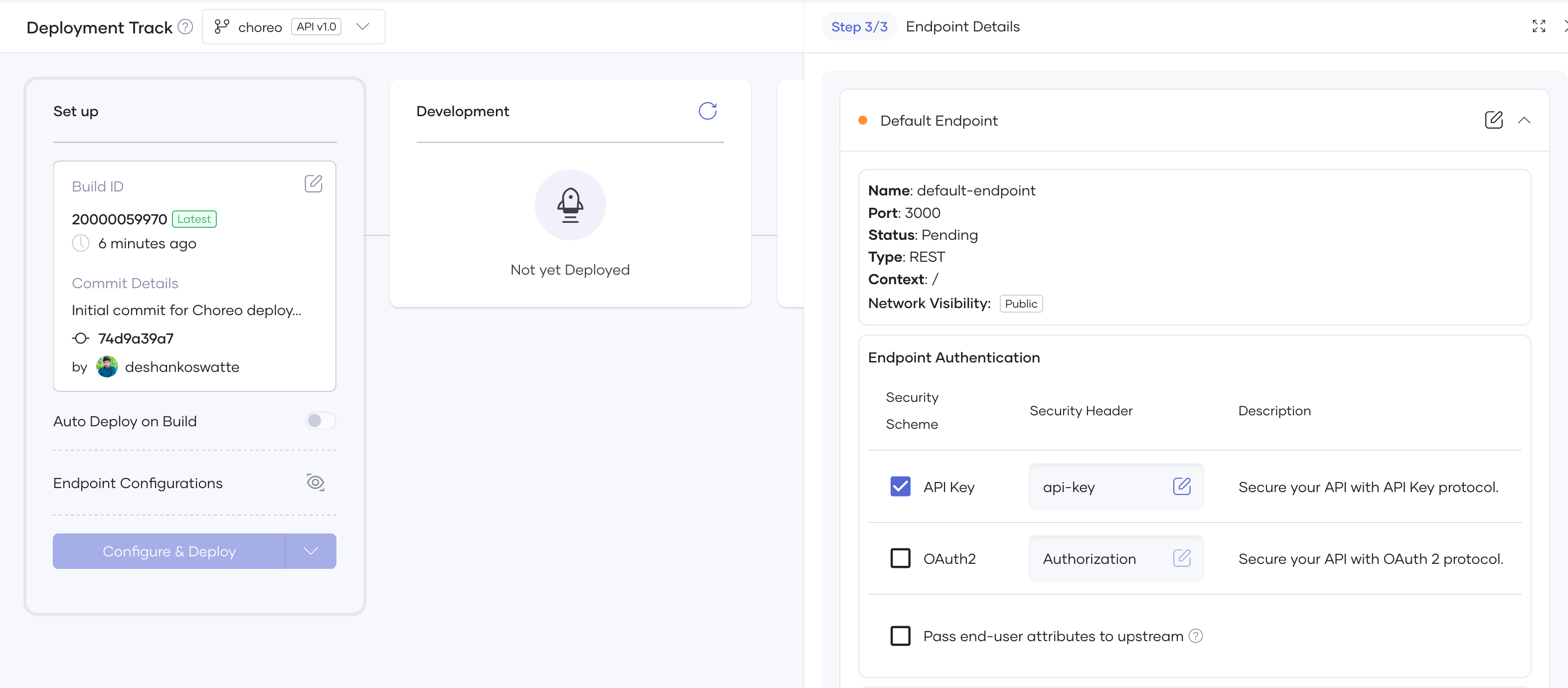

For security, make sure to enable the API Key protection mechanism. This will ensure that only authorized users can access your API.

After the deployment is complete, Choreo will provide a 'Public URL' for your API under Endpoints > Endpoint Details. Be sure to copy this URL for future reference.

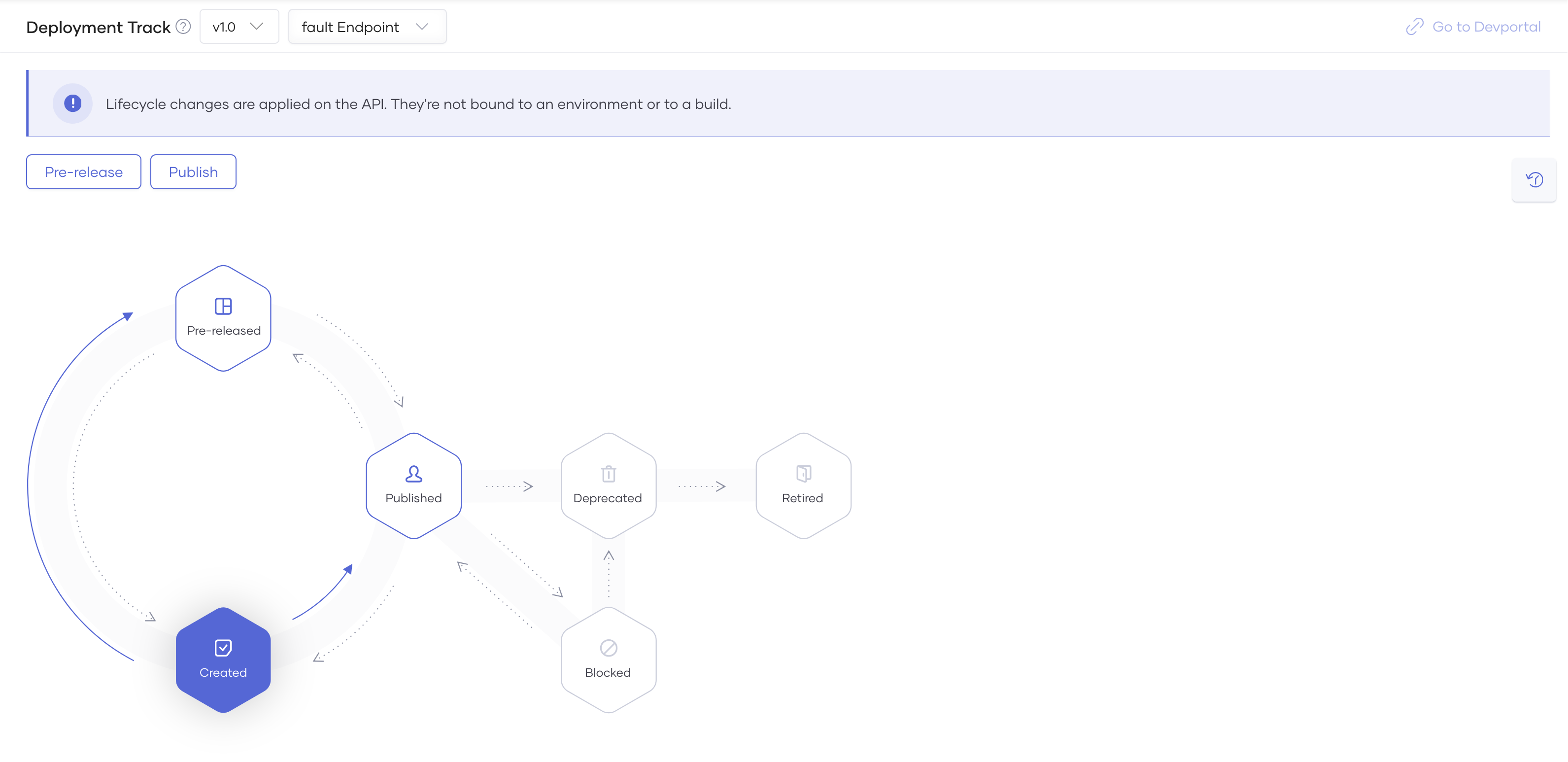

Additionally, Go to Manage > Lifecycle and click 'Publish' to move your API from the "Created" state to the "Published" state.

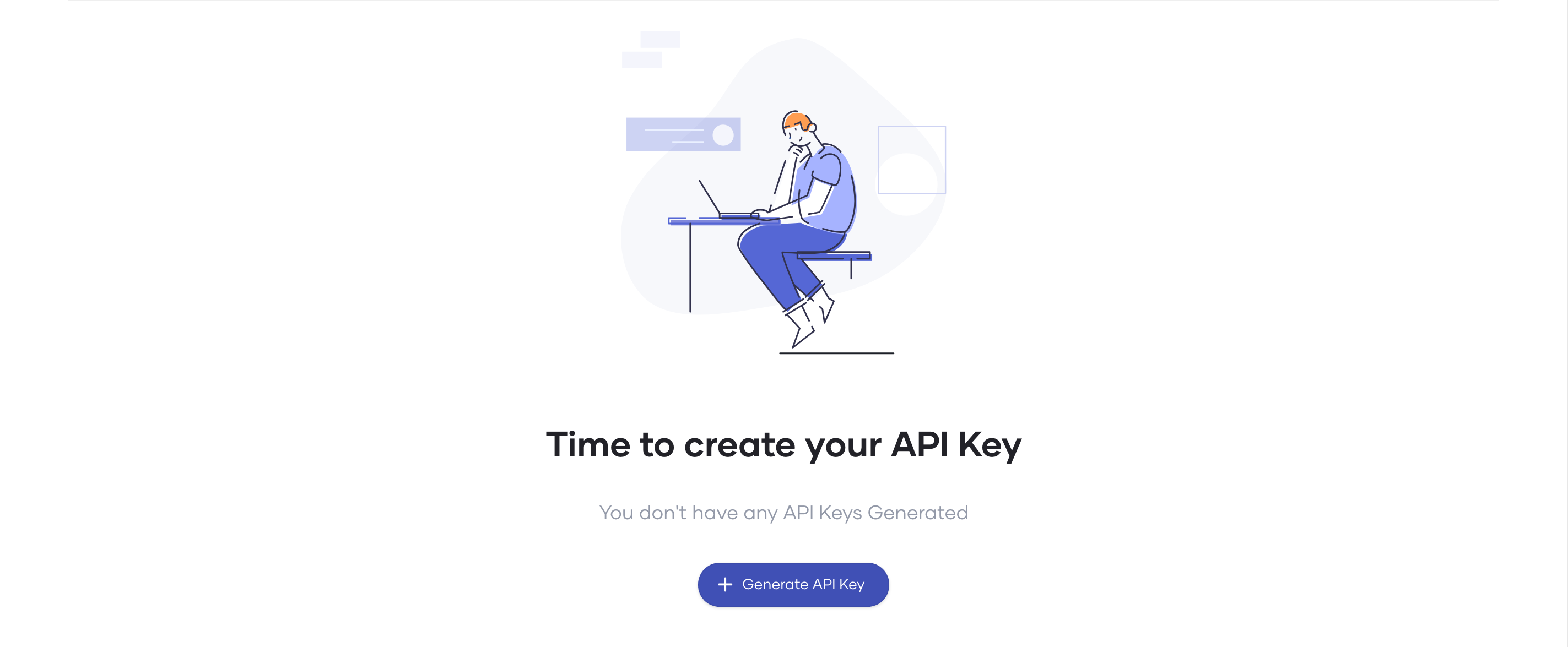

Once the API is published, navigate to the Dev portal (via the "Go to Devportal" link in the top right corner). In the Dev portal, go to Credentials > Sandbox and generate a new API key. This key is required for accessing the API securely.

The API key will be generated along with an application in Asgardeo. Copy and save the key securely for later use in your API calls.

Test Deployed Service

To test the deployed service, you will need the public URL and the API key. A sample request for a successful scenario is shown below.

curl --location '<public_url>/validate-token-policy' \
--header 'Content-Type: application/json' \
--header 'api-key: <api_key>' \
--data '{
  "actionType": "PRE_ISSUE_ACCESS_TOKEN",
  "event": {
    "request": {
      "additionalHeaders": [
        {
          "name": "x-request-id",
          "value": [
            "b523491ab6c6291325cd5a130bef3c16"
          ]
        },
        {
          "name": "x-client-source-ip",
          "value": [
            "205.210.31.51"
          ]
        },
        {
          "name": "postman-token",
          "value": [
            "71a4ec17-4207-436c-b9b1-e9943154828b"
          ]
        }
      ],
      "clientId": "CCm5aWk4TjKgprfH_fmuMI7edDQa",
      "grantType": "client_credentials"
    },
    "tenant": {
      "id": "2210",
      "name": "testwso2"
    },
    "accessToken": {
      "tokenType": "JWT",
      "claims": [
        {
          "name": "iss",
          "value": "https://api.asgardeo.io/t/testwso2/oauth2/token"
        },
        {
          "name": "client_id",
          "value": "CCm5aWk4TjKgprfH_fmuMI7edDQa"
        },
        {
          "name": "aut",
          "value": "APPLICATION"
        },
        {
          "name": "expires_in",
          "value": 3600
        },
        {
          "name": "aud",
          "value": [
            "CCm5aWk4TjKgprfH_fmuMI7edDQa"
          ]
        },
        {
          "name": "subject_type",
          "value": "public"
        },
        {
          "name": "sub",
          "value": "CCm5aWk4TjKgprfH_fmuMI7edDQa"
        }
      ]
    }
  },
  "allowedOperations": [
    {
      "op": "add",
      "paths": [
        "/accessToken/claims/",
        "/accessToken/scopes/",
        "/accessToken/claims/aud/"
      ]
    },
    {
      "op": "remove",
      "paths": [
        "/accessToken/scopes/",
        "/accessToken/claims/aud/"
      ]
    },
    {
      "op": "replace",
      "paths": [
        "/accessToken/scopes/",
        "/accessToken/claims/aud/",
        "/accessToken/claims/expires_in"
      ]
    }
  ]
}'

Configure WSO2 Identity Server for Pre-Issue Access Token Action Workflow

First, sign in to your WSO2 Identity Server account using your admin credentials, click on "Actions" and then select the action type Pre Issue Access Token.

Add an action name, the endpoint extracted from the deployment, and the appropriate authentication mechanism. For Choreo, append the endpoint name defined in the source code to the generated Choreo URL, and set the authentication mechanism to use an API key with the header name api-key and the value generated through the Dev Portal.

Once the action is configured, ensure that it is marked as active so it will be triggered during relevant operations. To set up the application, navigate to Applications > New Application in the Console application of WSO2 Identity Server, and select Standard-Based Application. Provide the application name as Adaptive Token Policy Demo App, choose OpenID Connect as the protocol, and enable both Authorization Code and Client Credentials under the Protocol tab. Additionally, make sure to add an Authorized Redirect URL, which should be a valid URL corresponding to your application.

If you are testing the flow using the authorization_code grant, you will need a user. To add one, navigate to the User Management > Users section in the Console and create a new user with a predefined password.

Validate Pre-Issue Access Token Action Workflow

To test the scenario, you can obtain an access token using the previously registered application with the client_credentials grant, as shown in the cURL command below.

curl --location 'https://<hostname>/t/<tenant_domain>/oauth2/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--header 'Authorization: Basic <base64_encoded_client_id_and_client_secret>' \
--header 'x-client-source-ip: <client_ip>' \
--data-urlencode 'grant_type=client_credentials'

Please note that this works similarly with the authorization_code grant as well. You will need to obtain the authorization code by signing in through the authorize URL, and then obtain the token using a cURL command similar to the one shown below.

curl -X POST https://<hostname>/t/<tenant-domain>/oauth2/token \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -H "x-client-source-ip: <client_ip>" \
  -u "<client_id>:<client_secret>" \
  -d "grant_type=authorization_code" \
  -d "code=<authorization_code>" \
  -d "redirect_uri=<redirect_uri>"

Some scenarios you can try out are as follows:

• Restricted Country: The IP 175.45.176.0 belongs to a restricted country (North Korea). The request will be blocked.
• High Abuse Score: The IP 103.159.198.178 has an abuse confidence score greater than 75. The request will be blocked due to high risk.
• Moderate Abuse Score (Working Hours): The IP 14.102.69.58 has an abuse confidence score between 25 and 75. During working hours (9 AM–5 PM UTC), the token will be issued with a 15-minute expiry.
• Moderate Abuse Score (Outside Working Hours): The IP 14.102.69.58 has an abuse confidence score between 25 and 75. Outside working hours, the token will be issued with a 5-minute expiry.
• Low Abuse Score: The IP 205.210.31.51 has an abuse confidence score below 25. The token will be issued with a 1-hour expiry.
