Integrate Ory Oathkeeper with WSO2 Identity Server

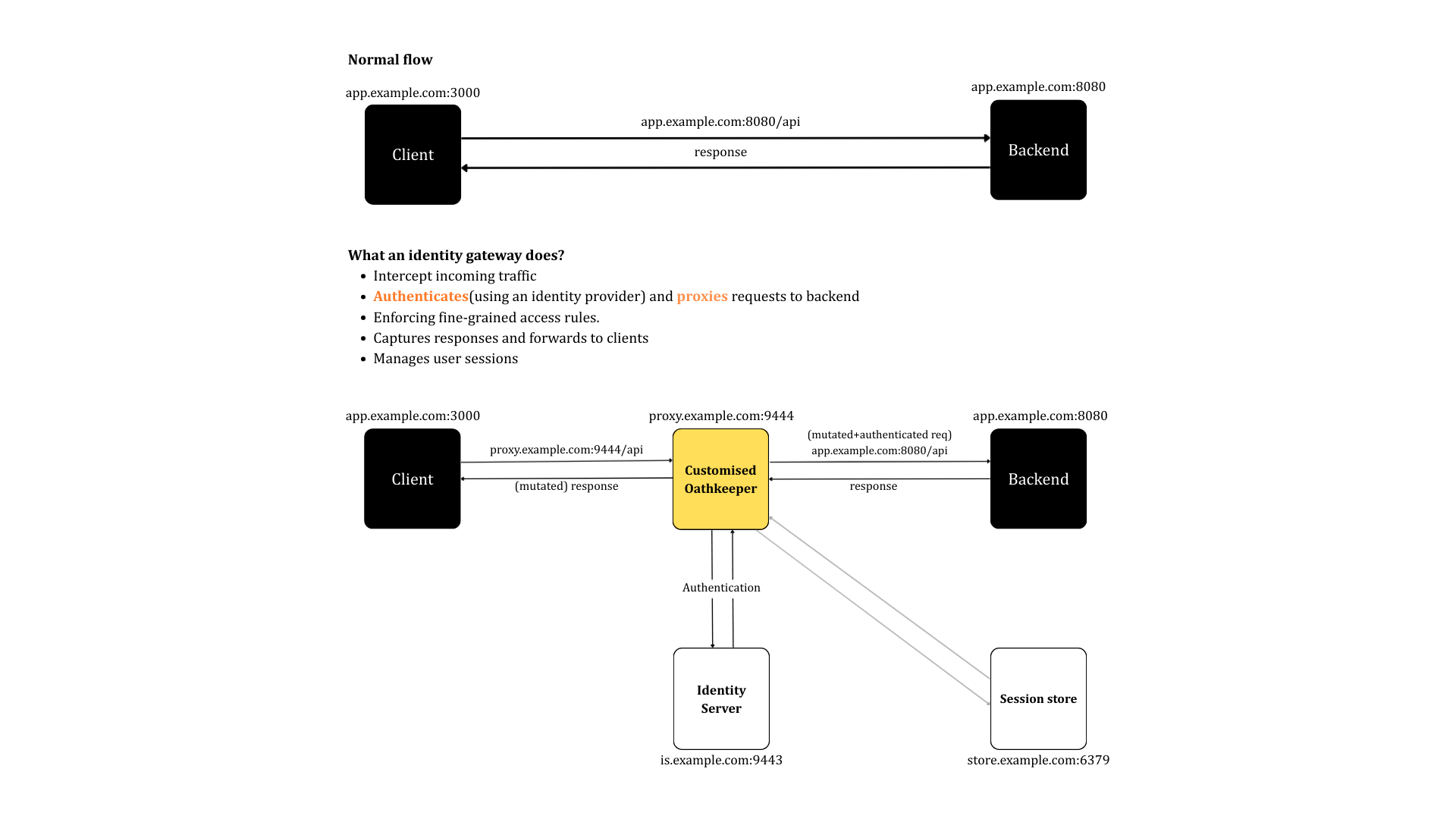

Oathkeeper is an open-source identity gateway that authenticates users through an external identity provider (such as WSO2 Identity Server) and forwards user identity and session information to your back-end services via HTTP headers and cookies. This guide explains how you can connect WSO2 Identity Server with Oathkeeper.

Prerequisites

• Go 1.16 or later. To install Go, follow the steps in the Go documentation.

• An application with a back-end. If you don't have one, you can use this sample application.

• (Optional) Redis server for session storage.

Step 1: Install and run WSO2 Identity Server

Follow the following steps below to download and install WSO2 Identity Server. Refer to the quick setup to learn more.

1. Download the latest WSO2 Identity Server version from the website.

2. Unzip the archive using the following command:

   unzip wso2is-<version>.zip
   # Replace <version> with your downloaded version, e.g., wso2is-7.1.0


3. Start the server:

   Linux/macOSWindows

   cd path/to/wso2is-<version>/bin
   ./wso2server.sh


   cd path/to/wso2is-<version>/bin
   wso2server.bat


4. You can access the WSO2 Identity Server Console by visiting the following URL and providing the default credentials of admin, admin.

   https://localhost:9443


Step 2: Create an OIDC application

To connect Oathkeeper to WSO2 Identity Server, you need to register it as an application. To do so,

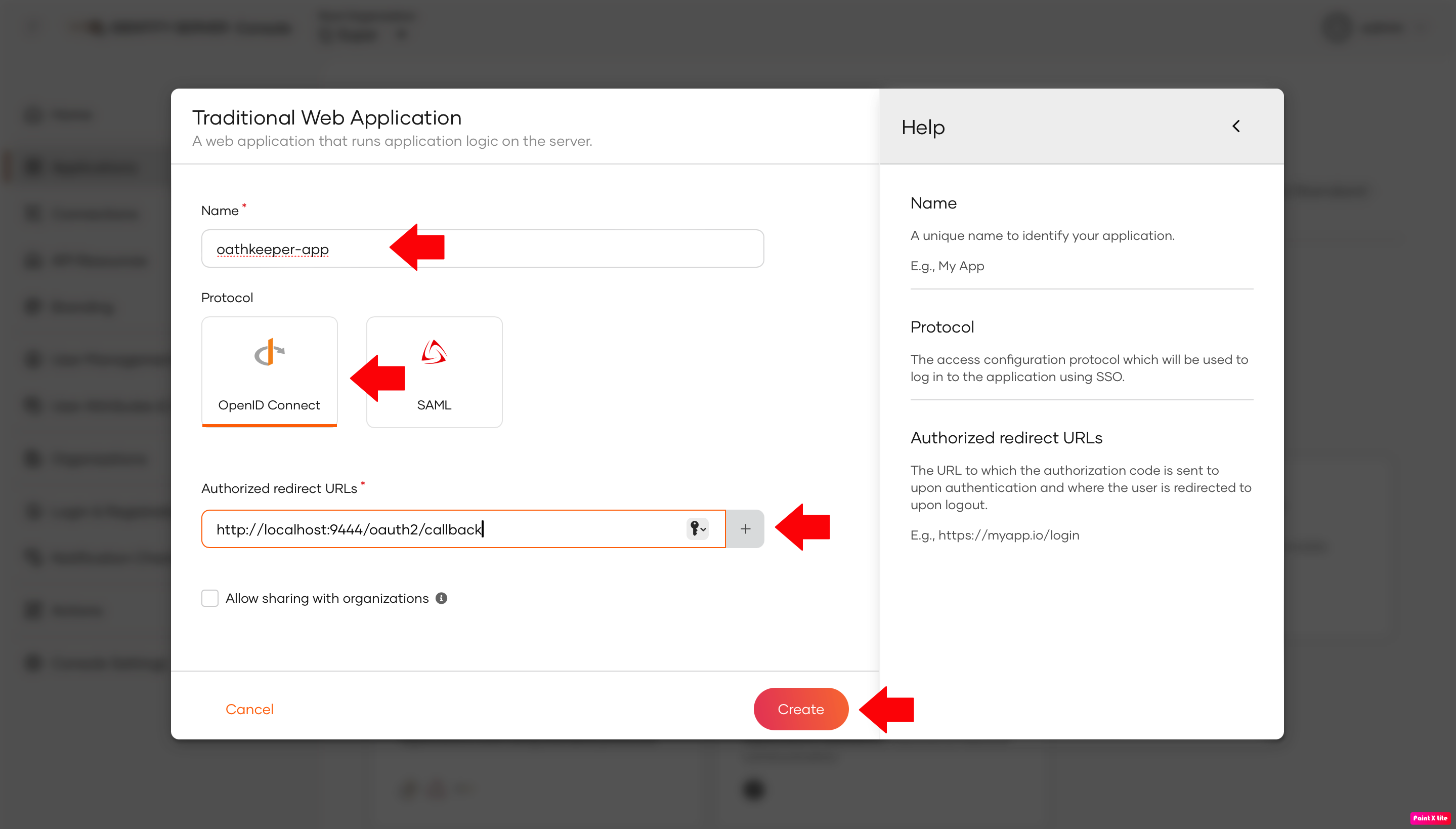

1. On the WSO2 Identity Server Console, go to Applications > New Application.



2. Select Traditional Web Application.



3. Enter the following details and click Create.

   • Name - oathkeeper-app
   • Protocol - Select OpenID Connect
   • Callback URL -The URL where WSO2 Identity Server sends the authentication response after login. For example: http://localhost:9444/oauth2/callback (or your proxy callback URL)



4. Take note of the Client ID and Client Secret generated for your application.



Step 3: (Optional) Set up sample application

If you have your own application, you can skip this step. If you want to use the sample Java application, follow the steps below to set it up.

1. Download the sample application.

2. Use the following command to run the application.

   cd path/to/app/folder
   java -jar request-logger.jar


3. Go to http://localhost:8080 and verify that the application works.



Step 4: Install and configure Oathkeeper

Follow the steps below to set up Oathkeeper with WSO2 Identity Server.

1. Create a new directory and navigate to it.

   mkdir oathkeeper-demo
   cd oathkeeper-demo


2. Fork and clone the Oathkeeper repository.

   git clone --branch v0.40.9 --single-branch https://github.com/<your-github-username>/  oathkeeper.git
   cd oathkeeper


3. Download all the customization files created for Oathkeeper from this repository.

4. Make the following changes to your original Oathkeeper clone using the customization files you downloaded earlier, keeping the same file names.

   Note

   In the following files and folders:

   • <OATHKEEPER_HOME> refers to the root directory of your Oathkeeper clone.
   • <CUSTOM_HOME> refers to the root directory of the customization files.

   • Replace the following folders in <OATHKEEPER_HOME> with the corresponding folders from <CUSTOM_HOME> in the same relative path.

     • <OATHKEEPER_HOME>/proxy/
     • <OATHKEEPER_HOME>/pipeline/errors/

   • Replace the following files in <OATHKEEPER_HOME> with the corresponding files from <CUSTOM_HOME> in the same relative path.

     • <OATHKEEPER_HOME>/driver/configuration/provider_koanf.go
     • <OATHKEEPER_HOME>/driver/configuration/provider.go
     • <OATHKEEPER_HOME>/driver/registry_memory.go
     • <OATHKEEPER_HOME>/rule/rule.go

   • Add these files from <CUSTOM_HOME>/pipeline/authn to <OATHKEEPER_HOME>/pipeline/authn

     • authenticator_callback.go
     • authenticator_callback_test.go
     • authenticator_session_jwt.go
     • authenticator_session_jwt_test.go

   • Add these configuration schema from <CUSTOM_HOME>/spec/pipeline/ to <OATHKEEPER_HOME>/spec/pipeline/

     • Authenticators.callback.schema.json
     • Authenticators.session_jwt.schema.json
     • Errors.redirect.schema.json
     • Session_store.schema.json

   • Replace the configuration file <OATHKEEPER_HOME>/spec/config.schema.json with <CUSTOM_HOME>/spec/config.schema.json.

   • To add Redis support, add the <CUSTOM_HOME>/pipeline/session_store/ folder to <OATHKEEPER_HOME>/pipeline/ folder.

5. To use a Redis server for advanced session or cache storage, install the Redis client library in your Oathkeeper project root.

   go get github.com/redis/go-redis/v9
   go mod tidy


6. Run the following command in the root directory of your Oathkeeper clone to compile the binary:

   go build -o ./bin/oathkeeper .


7. Download the sample configuration and rule files.

8. Update the downloaded config.yml file with the following values.

   • This sample configuration file assumes that the following services run on the specified ports. If your setup differs, adjust the configuration accordingly.

     • WSO2 Identity Server: https://localhost:9443
     • Oathkeeper: http://localhost:9444
     • Back-end Service (API or Web Application): http://localhost:8080

   • Replace <your_client_id>, <your_client_secret> with the client ID and the client secret you received earlier when registering the application in WSO2 Identity Server.

   • Under access_rules, specify the path to the rules file. You can use the sample rules file if you don't have your own.

   • The sample configuration file assumes a system with a Redis server. If you don't have one, remove the session store configurations and add this:

     # Session store configuration
     session_store:
       type: memory


   • The sample configuration file also assumes TLS encryption. If you don't use it, make the following changes.

     • Change the proxy port to 4455. The default port 9444 uses TLS.

       proxy:
         port: 4455


     • Remove TLS-related configurations:

       tls:
         cert:
           path: /path/to/certificates/cert.pem
         key:
           path: /path/to/certificates/key.pem


9. Start Oathkeeper:

   ./bin/oathkeeper serve --config /path/to/config.yml


Learn more

Refer to the Oathkeepr documentation for more information on Oathkeeper configurations.

Try it out

Now that you’ve set up WSO2 Identity Server, the sample application (or your own), and Oathkeeper, follow the steps below to test them in action.

1. Log in to your app through Oathkeeper by visiting http://localhost:9444/home. You will be redirected to the login page of WSO2 Identity Server.

2. Log in with an existing user.

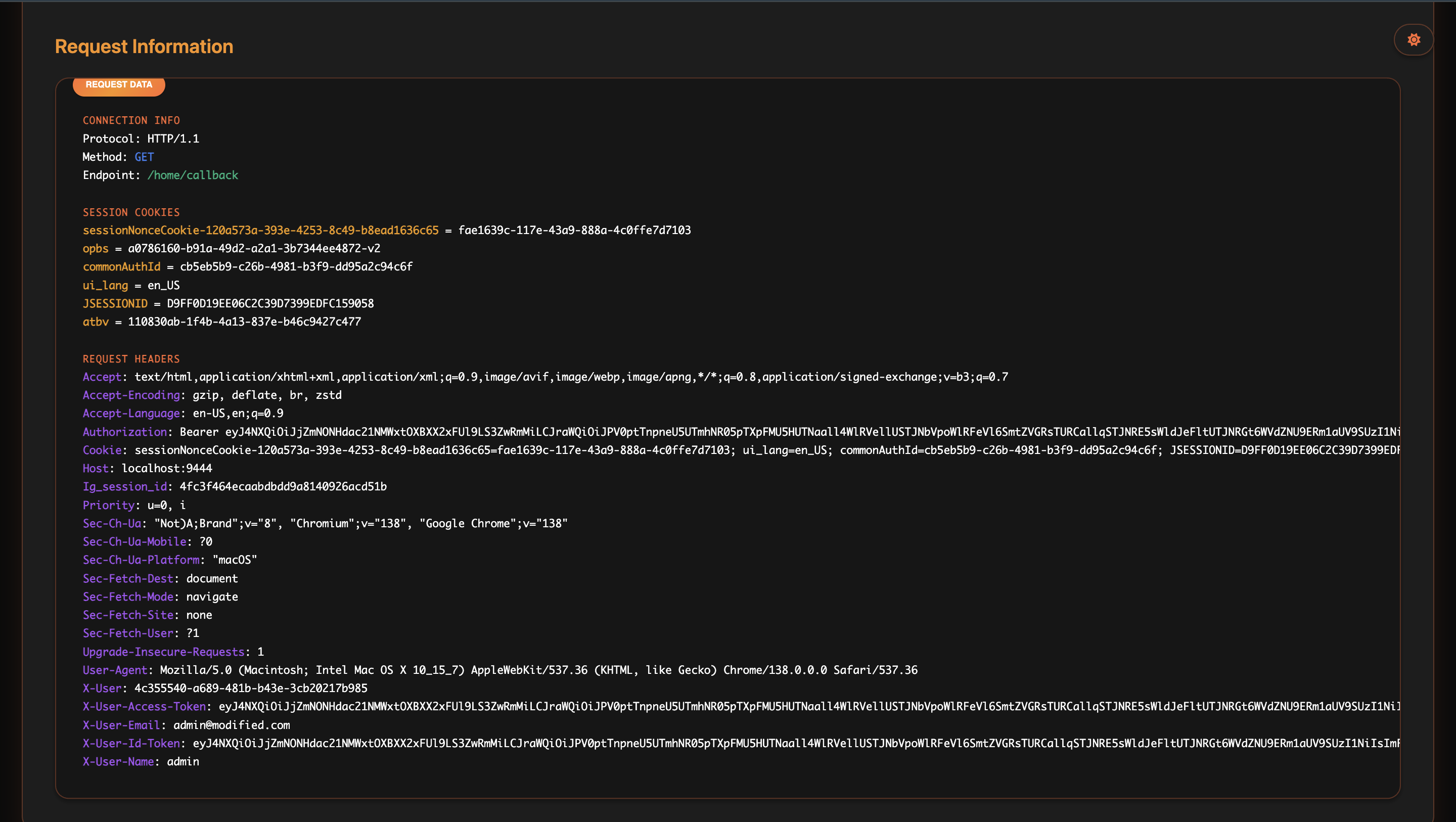

3. After successfully logging in, Oathkeeper forwards identity headers (for example X-User, X-User-Name, X-User-Email) to your application.



Advanced configurations

You can enhance the integration between WSO2 Identity Server and Oathkeeper with the following advanced options.

Integrate a Redis server for storing sessions

By default, Oathkeeper keeps sessions in memory. While this works for single-instance deployments, using Redis as a central session store provides better performance and consistency across multiple instances.

If you have a Redis server, add the following to your config.yml configuration file to connect it.

Before you begin

In Step 4, make sure the Oathkeeper binary is built with all necessary files and libraries required for Redis support.

session_store:
  type: redis
  redis:
    addr: "127.0.0.1:6379"
    password: "<your_redis_password>"
    db: 0
    session_prefix: "session:"
    state_prefix: "state:"
    ttl: "24h"

Note

Redis connection URL takes the following format:

redis://[:password@]host[:port][/db-number]

Encrypt connections with TLS

To encrypt communication between clients and OAuth2 Proxy, you can enable TLS. To do so, add the following to your config.yml configuration file:

port: 9444
tls:
  cert:
    path: "/path/to/cert.pem"
  key:
    path: "/path/to/cert.key"

Generate a self-signed TLS certificate

To create a self-signed TLS certificate for development purposes, run the following command. For production environments, always use a certificate issued by a trusted Certificate Authority (CA), such as Let's Encrypt.

openssl req -x509 -newkey rsa:2048 -nodes \
-keyout /path/to/cert.key \
-out /path/to/cert.pem \
-days 365 \
-subj "/CN=localhost"

---

Now that you’ve successfully connected WSO2 Identity Server with Oathkeeper, you can leverage this integration to:

• Add authentication to applications that lack native OIDC support.

• Replace custom or insecure authentication methods.

• Centralize and simplify authentication logic.

This setup secures dashboards, microservices, and legacy apps, improving stack security, scalability, and maintainability.
