Manage OAuth2 applications within organization¶

Applications can be created directly in the organizations and these applications can be used to consume the API resources from the organizations.

These applications can be created under the following conditions.

Application's protocol is OAuth2.
Only client credentials, password and refresh grant types can be used.

Alongside with the Application Management, following capabilities are now available in the organizations

Role management : Roles can be managed directly in the organization and can associate with the applications which are managed directly in the organization.
Inherited API Resources : The WSO2 Identity Server defined Organization API Resources and the API Resources that are created in the root organization are now inherited to the organization. These API Resources can be authorized to the applications which are managed directly in the organization.

Inherited API Resources¶

The Organization API Resources and the API Resources that are created in the root organization are inherited to the organizations directly. These API Resources are available in read only mode through the WSO2 Identity Server Console.

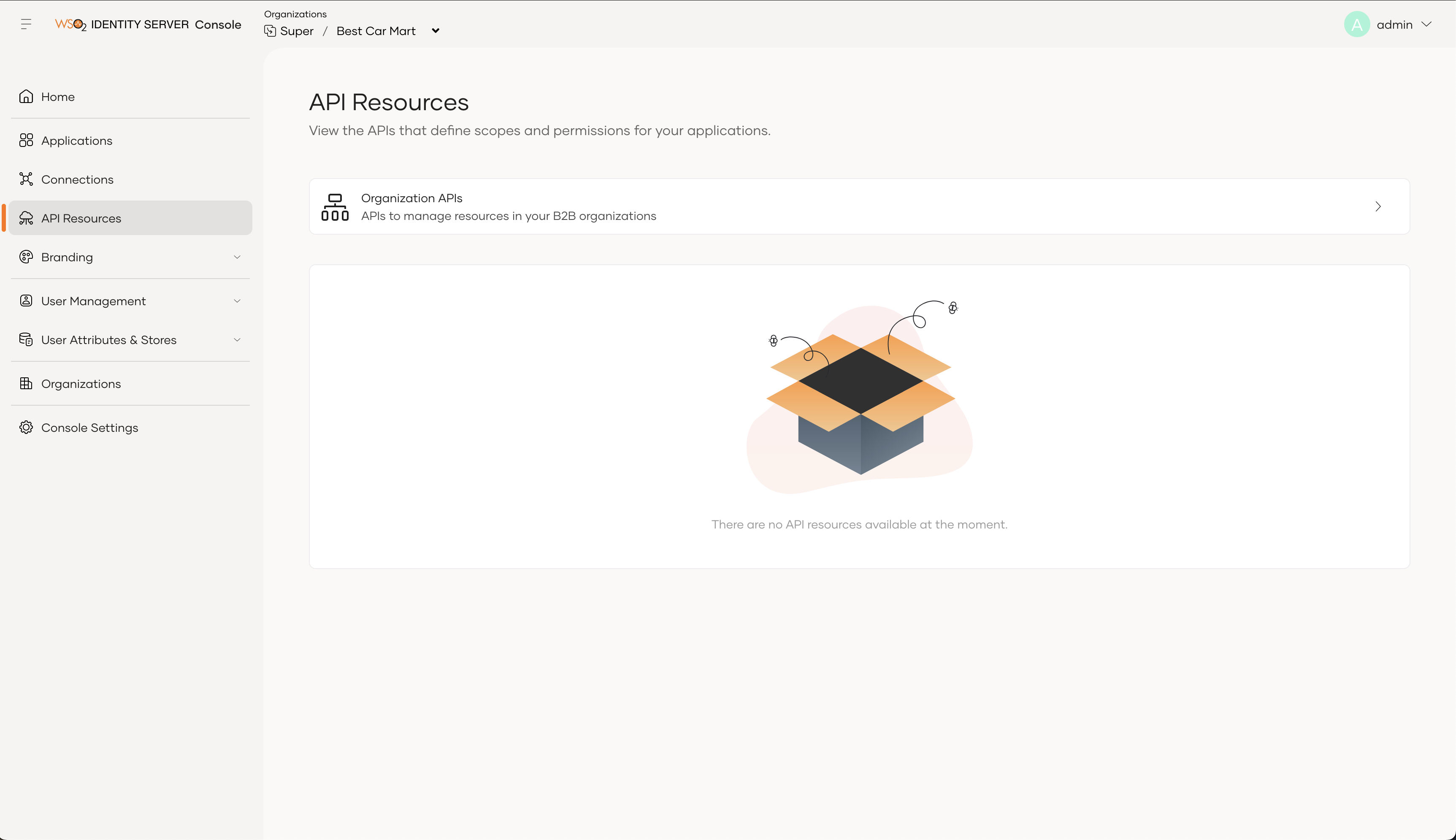

Inherited default API Resources

Role Management¶

Organizations can have their own roles and manage them independently. These roles can only be associated with the applications that are managed directly in the organization.

Role management in organization

Please refer Manage roles for more details on how you can manage the roles.

Role types in organization¶

Organization now have two types on roles.

Shared roles : Roles defined by the root organization and used by B2B applications shared with this organization are created as shared roles within the organization.
Roles managed directly in the organization : Roles which can be managed directly in the organization.

Both these roles can be assigned to any user in the organization but in the authorization, shared applications will only consider the shared roles to provide the authorization.

There might be scenarios where the above two types of roles can lead to a conflict of role creation. Please refer Manage role conflicts in organization for more information.

OAuth2 Application Management¶

Organizations can have their own OAuth2 applications and manage them independently. These applications can issue tokens and allow access to the API Resources which belongs to the particular organization. Organization application can be created with the below conditions.

Application's protocol is OAuth2.
Only client credentials, password and refresh grant types can be used.

Organization application can be created by using the Organization application Add API request. A bearer token with the internal_org_application_mgt_create scope, which was issued for the corresponding organization will be needed to invoke this API.

These created applications can be edited from the WSO2 Identity Server Console.

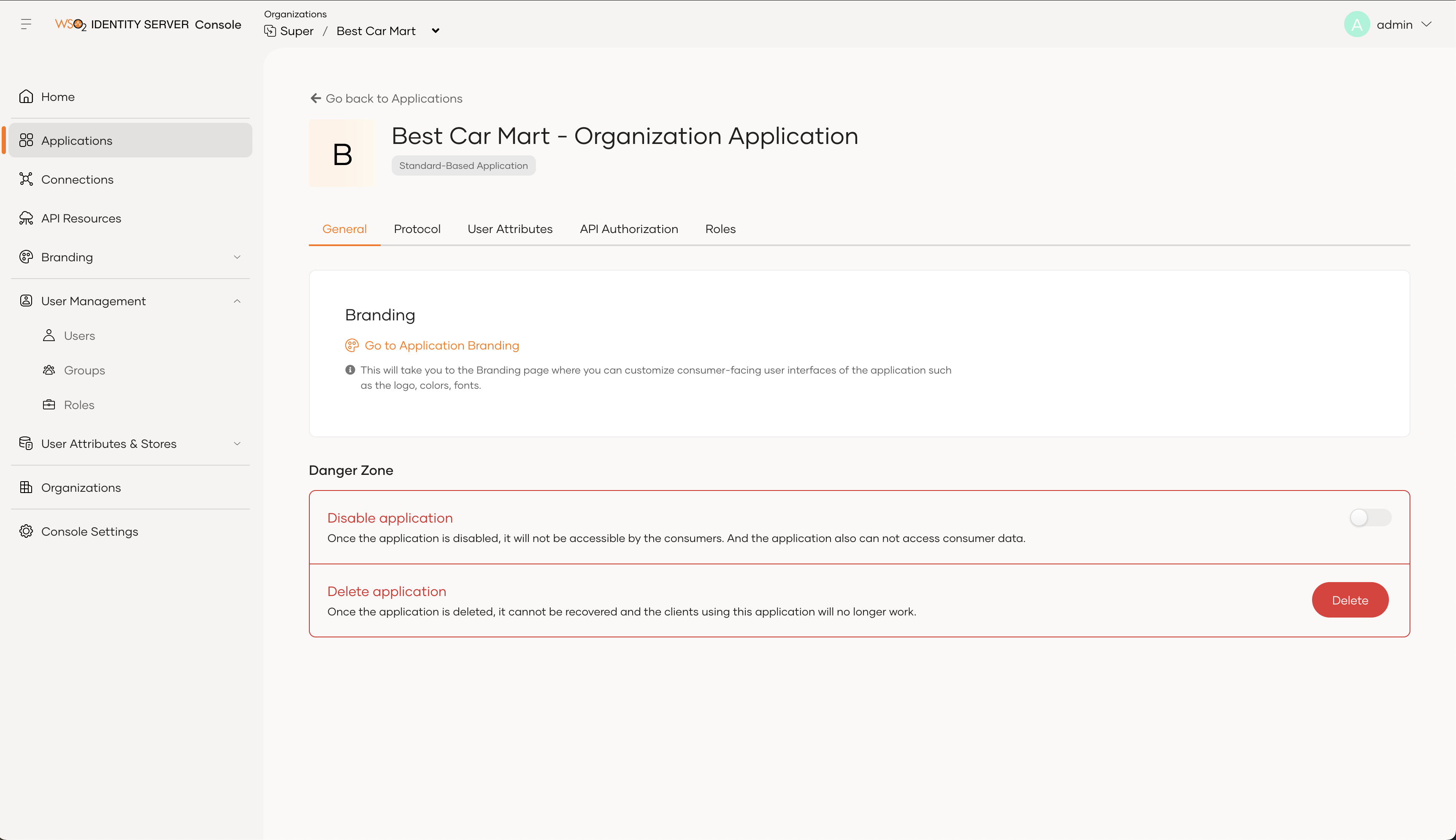

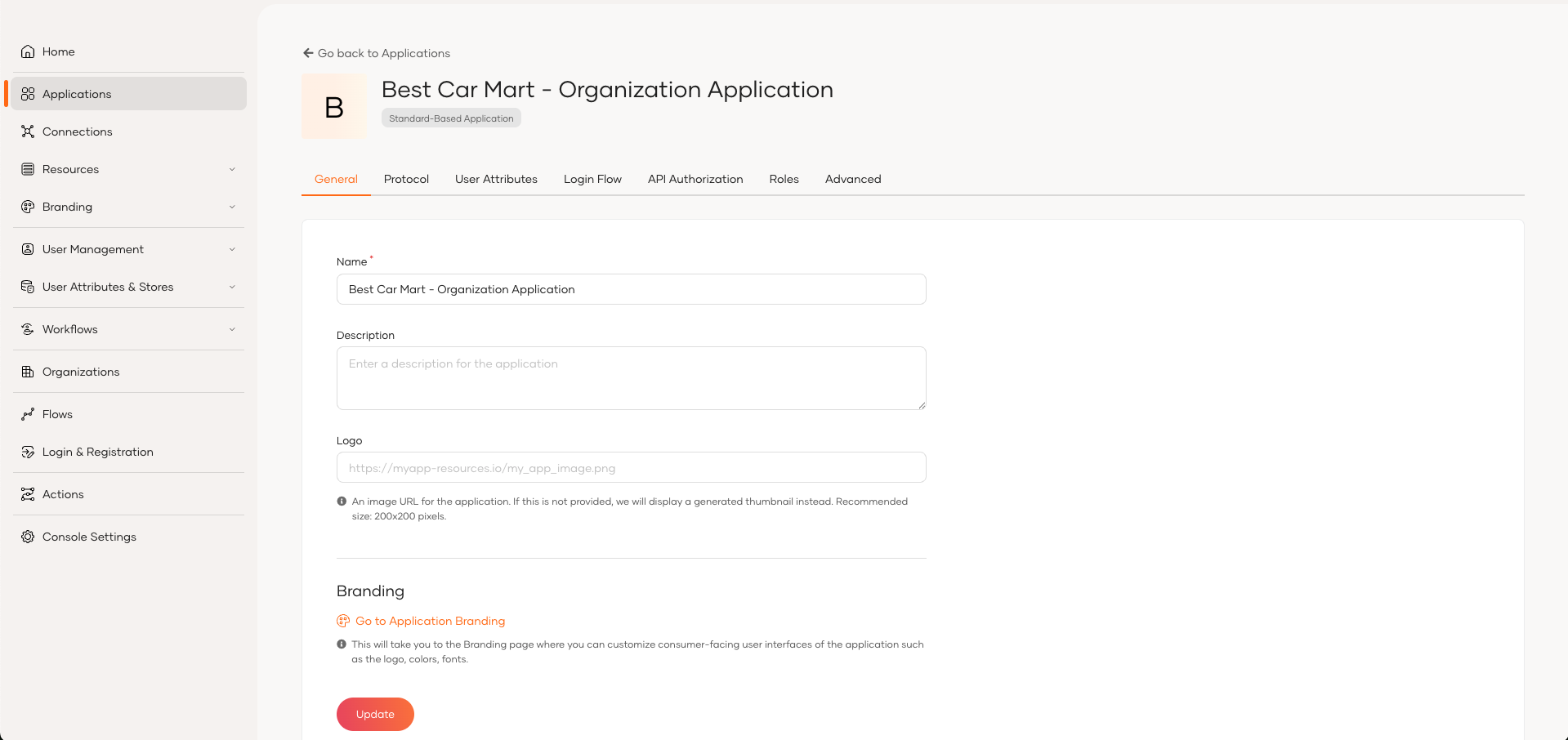

Organization Application Edit

The following operations are supported for organization applications.

Protocol level configurations
User attributes related configurations
API Authorization for organization application
Role management for organization application

Token generation from organization applications¶

Password Grant

Abstract

Request format

curl --user <OAUTH_CLIENT_KEY>:<OAUTH_CLIENT_SECRET> -k -d "grant_type=password&username=<USERNAME>&password=<PASSWORD>" -H "Content-Type: application/x-www-form-urlencoded" https://<IS_HOST>:<IS_PORT>/t/<TENANT_DOMAIN>/o/<ORG_ID>/oauth2/token

Sample request

curl --user 7wYeybBGCVfLxPmS0z66WNMffyMa:WYfwHUsbsEvwtqmDLuaxF_VCQJwa -k -d "grant_type=password&username=Charlie&password=jG9A5KrX" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:9443/t/carbon.super/o/7e98b86f-63c7-41a1-8c56-c909a21a2615/oauth2/token

Sample response

{
    "access_token": "4778085e-5802-3090-aa70-ec877663f194",
    "refresh_token": "13bcbd1d-a4bb-33da-9274-d2c1a1f17d97",
    "token_type": "Bearer",
    "expires_in": 3600
}

Note

If you need the scopes with the response, the add the scope path parameter to the token request with the required scopes.

Client Credentials Grant

Abstract

Request format

curl --user <OAUTH_CLIENT_KEY>:<OAUTH_CLIENT_SECRET> -k -d "grant_type=client_credentials" -H "Content-Type: application/x-www-form-urlencoded" https://<IS_HOST>:<IS_PORT>/t/<TENANT_DOMAIN>/o/<ORG_ID>/oauth2/token

Sample request

curl --user fhErtAT2YF_M0Ek3AAYHLI8L25oa:JirxvtfoecnrS8vBjM7ygOtSIXuCS_uK_9WEC7d1zPEa -k -d "grant_type=client_credentials" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:9443/t/carbon.super/o/12d1c4d2-2bb1-443b-aa4a-68f98a40d7c6/oauth2/token

Sample response

{
    "access_token": "bc978da1-6c56-3125-a999-a8d61c889672",
    "token_type": "Bearer",
    "expires_in": 3600
}

Note

If you need the scopes with the response, the add the scope path parameter to the token request with the required scopes.

Token introspection from organization application¶

Abstract

Request format

curl --user <OAUTH_CLIENT_KEY>:<OAUTH_CLIENT_SECRET> -k -d "token=<SUB_ORG_APP_TOKEN>" -H "Content-Type: application/x-www-form-urlencoded" https://<IS_HOST>:<IS_PORT>/t/<TENANT_DOMAIN>/o/<ORG_ID>/oauth2/introspect

Sample request

curl --user fhErtAT2YF_M0Ek3AAYHLI8L25oa:JirxvtfoecnrS8vBjM7ygOtSIXuCS_uK_9WEC7d1zPEa -k -d "token=ef757efc-6ec3-3e12-83f6-cb2849d67f7b" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:9443/t/carbon.super/o/12d1c4d2-2bb1-443b-aa4a-68f98a40d7c6/oauth2/introspect

Sample response

{
    "aut": "APPLICATION_USER",
    "aud": "fhErtAT2YF_M0Ek3AAYHLI8L25oa",
    "nbf": 1739253383,
    "org_id": "12d1c4d2-2bb1-443b-aa4a-68f98a40d7c6",
    "active": true,
    "token_type": "Bearer",
    "exp": 1739256983,
    "iat": 1739253383,
    "client_id": "fhErtAT2YF_M0Ek3AAYHLI8L25oa",
    "username": "Charlie@12d1c4d2-2bb1-443b-aa4a-68f98a40d7c6"
}

Token revocation from organization application¶

Abstract

Request format

curl --user <OAUTH_CLIENT_KEY>:<OAUTH_CLIENT_SECRET> -k -d "token=<SUB_ORG_APP_TOKEN>&token_type_hint=<TOKEN_TYPE>" -H "Content-Type: application/x-www-form-urlencoded" https://<IS_HOST>:<IS_PORT>/t/<TENANT_DOMAIN>/o/<ORG_ID>/oauth2/revoke

Sample request

curl --user fhErtAT2YF_M0Ek3AAYHLI8L25oa:JirxvtfoecnrS8vBjM7ygOtSIXuCS_uK_9WEC7d1zPEa -k -d "token=ef757efc-6ec3-3e12-83f6-cb2849d67f7b&token_type_hint=access_token" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:9443/t/carbon.super/o/12d1c4d2-2bb1-443b-aa4a-68f98a40d7c6/oauth2/revoke

Sample response

Empty JSON response with HTTP status code 200 OK
