Enable mobile number verification on update¶

Mobile number verification ensures that when a user updates their primary mobile number, an SMS OTP is sent to the new number for verification. The primary mobile number remains unchanged until the new one is successfully verified. If you have enabled multiple mobile numbers per user, users can maintain several verified mobile numbers and designate one as the primary mobile number.

Note

This feature can be invoked via a PUT/PATCH request to the SCIM 2.0 /Users endpoint or /Me endpoint.
The verification on update capability is only supported for the http://wso2.org/claims/mobile and http://wso2.org/claims/verifiedMobileNumbers claims.
An SMS OTP verification is not triggered if the mobile number to be updated is the same as a previously verified mobile number of the user.

Prerequisites¶

Configure your preferred SMS provider in WSO2 Identity Server.

Configuring Twilio

To configure Twilio as your SMS provider, follow the steps below:

Go to Twilio and create an account.
After signing up for your account, navigate to the Phone Numbers page in your console. You’ll see the phone number that has been selected for you. Note the phone number’s capabilities, such as "Voice", "SMS", and "MMS".
After signing up, navigate to the Phone Numbers page in your console and note the phone number’s capabilities.
Get your first Twilio phone number and use that as the “Sender” in the settings. For more information, see this tutorial in the Twilio documentation.
Copy the Account SID and Auth Token from the Twilio console dashboard.
Go to SMS Provider section in the WSO2 Identity Server Console and click the Twilio tab and fill the required fields.

Name	Description	Example
Twilio Account SID	Account SID received in the previous step.	`YourAccountSID`
Twilio Auth Token	Auth token received in the previous step.	`YourAuthToken`
Sender	Phone number that you received when creating the Twilio account.	`+1234567890`

Configuring Vonage

To configure Vonage as your SMS provider, follow the steps below:

Login to Vonage and create an account.
Fill in the required fields and create the account.
Login to the Vonage dashboard and copy the API Key and API Secret.
Go to SMS Provider section in the WSO2 Identity Server Console and click the Vonage tab and fill the required fields.

Name	Description	Example
Vonage API Key	Use the API Key from the previous step.	`YourAPIKey`
Vonage API Secret	Use the API Secret from the previous step.	`YourAPISecret`
Sender	The number that the receiver will see when you send an SMS.	`+1234567890`

Configuring a Custom Provider

If you are not using either Twilio or Vonage as the SMS provider, you can configure a custom SMS provider. Custom SMS provider configuration will pass the SMS data to the given URL as an HTTP request.

To configure a custom SMS provider, in the SMS Provider section click the Custom tab and fill the required fields.

Name	Description	Example
SMS Provider URL	URL of the SMS gateway where the payload should be published.	`https://api.example.com/api/v1`
Content Type	Content type of the payload. Possible values are `JSON` or `FORM` (Optional).	`JSON`
HTTP Method	HTTP method that should be used when publishing the payload to the provider URL. Possible values: `PUT`, `POST` (Optional).	`POST`
Payload Template	How the payload template should be. Placeholders: `{{body}}` - Generated body of the SMS. (Example - This can be the OTP). `{{mobile}}` - Number that this sms should be sent to.	Example JSON payload template: `{“content”: {{body}},“to”: {{mobile}}}}` (`{{mobile}}` and `{{body}}` will be replaced with the corresponding values at the runtime.)
Headers	Custom static headers need to be passed. If multiple headers need to be passed, they should be comma separated. (Optional)	`authorisation: qwer1234asdfzxcv, x-csrf: true, x-abc: some-value`

If required, enable support for multiple mobile numbers for users.
Update mobile number verification settings.

Try it out¶

Follow the guides below to try out different mobile number update scenarios.

Update the primary mobile number¶

If you only support a single mobile number and wish to update the mobile number of a user,

On the WSO2 Identity Server Console, go to User Management > Users.
Select a user account and go to its Profile tab.
Under Mobile, update the user's mobile number.
Click Update to save the changes. An SMS OTP will be sent to the specified mobile number for verification. The user needs to enter the SMS OTP to verify the mobile number.

Alternatively, you may update the mobile number via a PATCH operation to the SCIM 2.0 Users endpoint as shown below.

Request formatSample request

curl -X PATCH
https://localhost:9443/scim2/Users/<user_ID> \
-d '{
    "schemas":["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations":[{
        "op":<operation>,
        "value":
            { "mobileNumbers":[{"type":"mobile", "value":<new_mobile>}]}
        }]
    }' \
--header "Content-Type:application/json"
--header "Authorization: Bearer <access_token>"

curl -X PATCH
https://localhost:9443/scim2/Users/1e624046-520c-4628-a245-091e04b03f21 \
-d '{
    "schemas":["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations":[{
        "op":"replace",
        "value":
            { "phoneNumbers":[{"type": "mobile", "value":"0123456789"}]}
        }]
    }' \
--header "Content-Type:application/json"
--header "Authorization: Bearer <access_token>"

Sample Response

{
    "emails": [
        "[email protected]"
    ],
    "meta": {
        "location": "https://localhost:9443/scim2/Users/6d433ee7-7cd4-47a3-810b-bc09023bc2ce",
        "lastModified": "2020-10-12T13:35:24.579Z",
        "resourceType": "User"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:User",
        "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User",
        "urn:scim:wso2:schema"
    ],
    "roles": [
        {
            "type": "default",
            "value": "Internal/everyone"
        }
    ],
    "name": {
        "givenName": "Bob",
        "familyName": "Smith"
    },
    "id": "6d433ee7-7cd4-47a3-810b-bc09023bc2ce",
    "userName": "bob123",
    "phoneNumbers": [
        {
            "type": "mobile",
            "value": "0111111111"
        }
    ],
    "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User": {
        "pendingMobileNumber": "0123456789"
    }
}

Update the verified mobile numbers list¶

If you have enabled support for multiple mobile numbers, a user can have several verified mobile numbers and a single primary mobile number.

To verify a mobile number,

On the WSO2 Identity Server Console, go to User Management > Users.
Select a user account and go to its Profile tab.
Under Mobile, click the verify icon on an unverified mobile number of the user.

A verification code will be sent to your mobile number.

Mobile number update

An SMS OTP will be sent to the specified mobile number for verification. The user needs to provide the OTP to verify the mobile number.

Alternatively, you may update the mobile numbers via a PATCH operation to the SCIM 2.0 Users endpoint as shown below.

Request formatSample request

curl -X PATCH
https://localhost:9443/scim2/Users/<user_ID> \
-d '{
    "schemas":["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations":[{
        "op":<operation>,
        "value":{"urn:scim:wso2:schema": {"verifiedMobileNumbers": <list_of_mobile_numbers>}}
        }]
    }'
--header "Content-Type:application/json"
--header "Authorization: Bearer <access_token>"

curl -X PATCH
https://localhost:9443/scim2/Users/1e624046-520c-4628-a245-091e04b03f21 \
-d '{
    "schemas":["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations":[{
        "op":"replace",
        "value":{"urn:scim:wso2:schema": {"verifiedMobileNumbers": "0111111111,0123456789"}}
        }]
    }'
--header "Content-Type:application/json"
--header "Authorization: Bearer <access_token>"

Sample Response

{
    "emails": [
        "[email protected]"
    ],
    "meta": {
        "location": "https://localhost:9443/scim2/Users/6d433ee7-7cd4-47a3-810b-bc09023bc2ce",
        "lastModified": "2020-10-12T13:35:24.579Z",
        "resourceType": "User"
    },
    "schemas": [
        "urn:ietf:params:scim:schemas:core:2.0:User",
        "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User",
        "urn:scim:wso2:schema"
    ],
    "roles": [
        {
            "type": "default",
            "value": "Internal/everyone"
        }
    ],
    "name": {
        "givenName": "Bob",
        "familyName": "Smith"
    },
    "id": "6d433ee7-7cd4-47a3-810b-bc09023bc2ce",
    "userName": "bob123",
    "phoneNumbers": [
        {
            "type": "mobile",
            "value": "0111111111"
        }
    ],
    "urn:scim:wso2:schema": {
        "mobileNumbers": "0111111111",
        "verifiedMobileNumbers": "0111111111",
    },
    "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User": {
        "pendingMobileNumber": "0123456789"
    }
}

Upon receiving the response outlined above, the user will receive an SMS notification prompting them to verify their updated mobile number. Once verified, the verifiedMobileNumbers claim (http://wso2.org/claims/verifiedMobileNumbers) will be updated to reflect the new mobile number.

Validate the verification code¶

When going through the mobile number verification process, users can enter the SMS OTP in the provided prompt and click Verify to verify the mobile number.

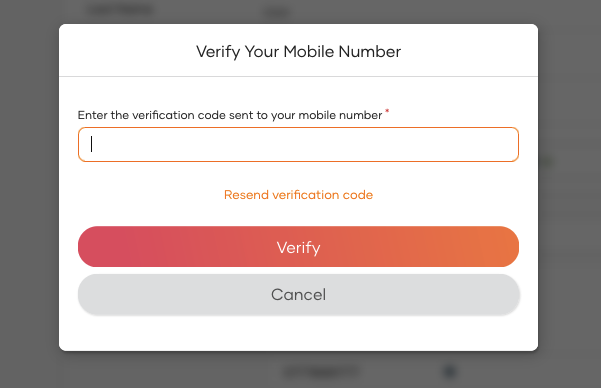

Mobile number verification code

Alternatively, the validation-code API can be used to submit the SMS OTP as shown below.

By a non-privileged user¶

Users can verify the SMS OTP by executing the following API request.

Request formatSample request

curl -X POST https://localhost:9443/api/identity/user/v1.0/me/validate-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{ "code": "<validation_code>",
      "properties": []
    }'

curl -X POST https://localhost:9443/api/identity/user/v1.0/me/validate-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{ "code": "1234",
      "properties": []
    }'

Response

"HTTP/1.1 200 Accepted"

By a privileged user¶

Privileged users can verify the SMS OTP on behalf of a user by executing the following API request.

Request formatSample request

curl -X POST https://localhost:9443/api/identity/user/v1.0/validate-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{ "code": "<validation_code>",
      "properties": []
    }'

curl -v -k -X POST https://localhost:9443/api/identity/user/v1.0/validate-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{ "code": "1234",
      "properties": []
    }'

Response

"HTTP/1.1 200 Accepted"

Resend the verification code¶

Users can request for a new SMS OTP code by simply clicking the Resend verification code button in the shown prompt

Mobile number verification code

Alternatively, the resend-code API can be used to resend the SMS OTP as shown below.

By a non-privileged user¶

Users can request a new SMS OTP by using the following API request.

Request formatSample request

curl -X POST https://localhost:9443/api/identity/user/v1.0/me/resend-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{ "properties": [{
        "key": "RecoveryScenario",
        "value": "<recovery_scenario>"
      }]
    }'

curl -X POST https://localhost:9443/api/identity/user/v1.0/me/resend-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{ "properties": [{
        "key": "RecoveryScenario",
        "value": "MOBILE_VERIFICATION_ON_UPDATE"
      }]
    }'

The verification scenario should be specified in the properties parameter of the request body as follows:

MOBILE_VERIFICATION_ON_UPDATE: Used when verifying a newly updated mobile number for a user.
MOBILE_VERIFICATION_ON_VERIFIED_LIST_UPDATE: Used when updating the list of verified mobile numbers for a user.

Response

"HTTP/1.1 201 Created"

By a privileged user¶

Privileged users can resend an SMS OTP on behalf of a user using the following API request.

Request formatSample request

curl -X POST https://localhost:9443/api/identity/user/v1.0/resend-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{
      "user": {
        "username": <USERNAME>,
        "realm": <REALM>"
    },
      "properties": [{
        "key":"RecoveryScenario",
        "value":<recovery_scenario>
        }]
    }'

curl -X POST https://localhost:9443/api/identity/user/v1.0/resend-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{
      "user": {
        "username": "bob",
        "realm": PRIMARY"
    },
      "properties": [{
        "key":"RecoveryScenario",
        "value":"MOBILE_VERIFICATION_ON_UPDATE"
        }]
    }'

The verification scenario should be specified in the request body as follows:

MOBILE_VERIFICATION_ON_UPDATE: Used when verifying updated primary mobile number.
MOBILE_VERIFICATION_ON_VERIFIED_LIST_UPDATE: Used when updating the list of verified mobile numbers.

Response

"HTTP/1.1 201 Created"
