Try out email address update verification¶

Email address verification ensures that when a user updates their primary email address, a verification request is triggered to the new email address. The primary email address will not change until the new email address is verified. If you have enabled multiple email addresses per user, users can maintain several verified email addresses and designate one as the primary email address.

Note

This feature can be invoked via a PUT/PATCH request to the SCIM 2.0 /Users endpoint or /Me endpoint.
The verification on update capability is only supported for the http://wso2.org/claims/emailAddresses and http://wso2.org/claims/verifiedEmailAddresses claims.
Verification is not triggered if the email address to be updated is the same as a previously verified email address of the user.

Prerequisites¶

Configure the email sending module of the WSO2 Identity Server.
If required, enable support for multiple email addresses for users.
Update email verification settings.

Try it out¶

Follow the guides below to try out different email update scenarios.

Update the primary email address¶

If you only support a single email address and wish to update the email address of a user,

On the WSO2 Identity Server Console, go to User Management > Users.
Select a user account and go to its Profile tab.
Under Email, update the user's email address.
Click Update to save the changes. An email will be sent to the specified address for verification. The user needs to click the link provided in the email to verify the email address.

Alternatively, you may update the email address via a PATCH operation to the SCIM 2.0 Users endpoint as shown below.

Request formatSample request

curl -v -k -X PATCH
https://localhost:9443/scim2/Users/<user_ID> \
-d '{
    "schemas":["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations":[{
        "op":<operation>,
        "value":
            { "emails":[{"primary":true, "value":<new_email>}]}
        }]
    }' \
--header "Content-Type:application/json"
--header "Authorization: Bearer <access_token>"

curl -X PATCH
https://localhost:9443/scim2/Users/1e624046-520c-4628-a245-091e04b03f21 \
-d '{
    "schemas":["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations":[{
        "op":"replace",
        "value":
            { "emails":[{"primary":true,"value":"[email protected]"}]}
        }]
    }' \
--header "Content-Type:application/json"
--header "Authorization: Bearer <access_token>"

Sample Response

{
    "emails":[
        "[email protected]"
    ],
    "meta":{
        "created":"2020-01-07T09:32:18",
        "location":"https://localhost:9443/scim2/Users/1e624046-520c-4628-a245-091e04b03f21",
        "lastModified":"2020-01-07T14:18:49",
        "resourceType":"User"
    },
    "schemas":[
        "urn:ietf:params:scim:schemas:core:2.0:User",
        "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User",
        "urn:scim:wso2:schema"
    ],
    "urn:scim:wso2:schema": {
        "emailAddresses": "[email protected]",
        "verifiedEmailAddresses": "[email protected]",
    },
    "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User":{
        "pendingEmails":[
            {
                "value":"[email protected]"
            }
        ]
    },
    "roles":[
        {
            "type":"default",
            "value":"Internal/everyone"
        }
    ],
    "name":{
        "givenName":"kim",
        "familyName":"jackson"
    },
    "id":"1e624046-520c-4628-a245-091e04b03f21",
    "userName":"kim"
}

Upon receiving the response outlined above, the user will receive an email notification prompting them to verify their updated email address. Once verified, the emailAddresses claim (http://wso2.org/claims/emailaddress) and verifiedEmailAddresses claim (http://wso2.org/claims/verifiedEmailAddresses) will be updated to reflect the new email address.

Update the verified email addresses list¶

If you have enabled support for multiple email addresses and mobile numbers, a user can have several verified email addresses and a single primary email address.

To verify an email address,

On the WSO2 Identity Server Console, go to User Management > Users.
Select a user account and go to its Profile tab.

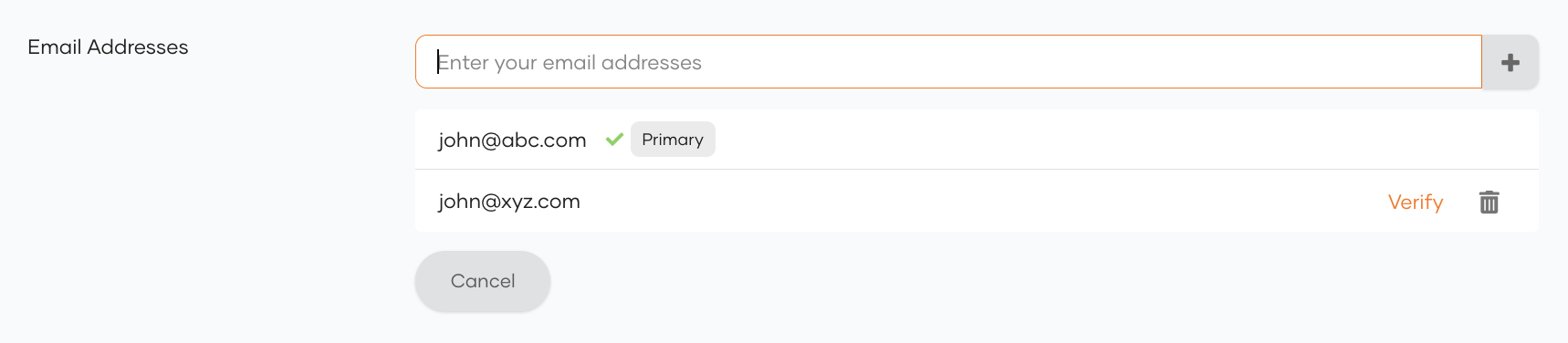

Under Email Addresses, click the verify icon on an unverified email address of the user.

An email will be sent to the specified address for verification. The user needs to click the link provided in the email to verify the email address.

Alternatively, you may update the email addresses via a PATCH operation to the SCIM 2.0 Users endpoint as shown below.

Request formatSample request

curl -X PATCH
https://localhost:9443/scim2/Users/<user_ID> \
-d '{
    "schemas":["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations":[{
        "op":<operation>,
        "value":{"urn:scim:wso2:schema": {"verifiedEmailAddresses": <list_of_email_addresses>}}
        }]
    }'
--header "Content-Type:application/json"
--header "Authorization: Bearer <access_token>"

curl -X PATCH
https://localhost:9443/scim2/Users/1e624046-520c-4628-a245-091e04b03f21 \
-d '{
    "schemas":["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations":[{
        "op":"replace",
        "value":{"urn:scim:wso2:schema": {"verifiedEmailAddresses": "[email protected],[email protected]"}}
        }]
    }'
--header "Content-Type:application/json"
--header "Authorization: Bearer <access_token>"

Sample Response

{
    "emails":[
        "[email protected]"
    ],
    "meta":{
        "created":"2020-01-07T09:32:18",
        "location":"https://localhost:9443/scim2/Users/1e624046-520c-4628-a245-091e04b03f21",
        "lastModified":"2020-01-07T14:18:49",
        "resourceType":"User"
    },
    "schemas":[
        "urn:ietf:params:scim:schemas:core:2.0:User",
        "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User",
        urn:scim:wso2:schema
    ],
    "urn:scim:wso2:schema": {
        "emailAddresses": "[email protected]",
        "verifiedEmailAddresses": "[email protected]",
    },
    "urn:ietf:params:scim:schemas:extension:enterprise:2.0:User":{
        "pendingEmails":[
            {
                "value":"[email protected]"
            }
        ]
    },
    "roles":[
        {
            "type":"default",
            "value":"Internal/everyone"
        }
    ],
    "name":{
        "givenName":"kim",
        "familyName":"jackson"
    },
    "id":"1e624046-520c-4628-a245-091e04b03f21",
    "userName":"kim"
}

Upon receiving the response outlined above, the user will receive an email notification prompting them to verify their updated email address. Once verified, the verifiedEmailAddresses claim (http://wso2.org/claims/verifiedEmailAddresses) will be updated to reflect the new email address.

Resend email verification¶

Run the following curl command in case you want to resend the email verification.

Request formatSample request

curl -X POST https://localhost:9443/api/identity/user/v1.0/resend-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{
    "user": {
        "username": <USERNAME>,
        "realm": <REALM>"
    },
    "properties": [{
        "key":"RecoveryScenario",
        "value": <recovery_scenario>
        }]
    }'

curl -X POST https://localhost:9443/api/identity/user/v1.0/resend-code
-H "Authorization: Bearer <access_token>"
-H "Content-Type: application/json" \
-d '{
    "user": {
        "username": "bob",
        "realm": "PRIMARY"
    },
    "properties": [{
        "key":"RecoveryScenario",
        "value":"EMAIL_VERIFICATION_ON_UPDATE"
        }]
    }'

The verification scenario should be specified in the properties parameter of the request body as follows :

"properties": [{"key": "RecoveryScenario", "value": "EMAIL_VERIFICATION_ON_UPDATE"}]

- EMAIL_VERIFICATION_ON_UPDATE: Used when verifying a newly updated email address for a user.
- EMAIL_VERIFICATION_ON_VERIFIED_LIST_UPDATE: Used when updating the list of verified email addresses for a user.

Response

HTTP/1.1 201 Created
