Rich Authorization Requests¶
Rich Authorization Requests (RAR) (RFC 9396) enhance authorization mechanisms by allowing clients to specify fine-grained authorization details in a structured format. This guide outlines how to configure your application for RAR, authorize API resources, customize authorization validation, and obtain tokens with authorization details.
Configuring your application for RAR¶
You can go through the following steps to prepare your application for rich authorization requests.
Step 1: Register a new authorization details type¶
Before using RAR, you need to define the authorization details types that your application supports.
This involves registering an authorization details types using the API Resource Management Rest API.
(The authorizationDetailsTypes field in the request payload follows the JSON Schema Draft 2020-12 standard.)
The following sample request registers a new authorization details types named payment_initiation for a Payments API
and the response contains details of the newly registered API resource and its authorization details types.
This payload's schema can be referenced as a representation of Figure 1 in the RAR specification.
curl --location 'https://localhost:9443/api/server/v1/api-resources' \
--header 'accept: application/json' \
--header 'Content-Type: application/json' \
--header 'Authorization: Basic YWRtaW46YWRtaW4=' \
--data '{"name":"Payments API","identifier":"payments_api","description":"Payments API representation","requiresAuthorization":true,"authorizationDetailsTypes":[{"type":"payment_initiation","name":"Payment Initiations Type","description":"Payment initiation authorization details type","schema":{"type":"object","required":["type","actions","locations","instructedAmount"],"properties":{"locations":{"type":"array","items":{"type":"string","format":"uri"}},"instructedAmount":{"type":"object","properties":{"currency":{"type":"string","minLength":3},"amount":{"type":"string"}}},"type":{"type":"string","enum":["payment_initiation"]},"creditorName":{"type":"string"},"actions":{"type":"array","items":{"type":"string","enum":["initiate","status","cancel"]}},"creditorAccount":{"type":"object"}}}}]}'
{
"id": "ae1c234f-6497-42f5-8bbd-b4a7e2237807",
"name": "Payments API",
"identifier": "payments_api",
"description": "Payments API representation",
"requiresAuthorization": true,
"type": "BUSINESS",
"authorizationDetailsTypes": [
{
"id": "e2134d3b-9efc-454c-8fcc-985c414bf6cb",
"type": "payment_initiation",
"name": "Payment Initiations Type",
"description": "Payment initiation authorization details type",
"schema": {
"type": "object",
"required": [
"type",
"actions",
"locations",
"instructedAmount"
],
"properties": {
"locations": {
"type": "array",
"items": {
"type": "string",
"format": "uri"
}
},
"instructedAmount": {
"type": "object",
"properties": {
"currency": {
"type": "string",
"minLength": 3
},
"amount": {
"type": "string"
}
}
},
"type": {
"type": "string",
"enum": [
"payment_initiation"
]
},
"creditorName": {
"type": "string"
},
"actions": {
"type": "array",
"items": {
"type": "string",
"enum": [
"initiate",
"status",
"cancel"
]
}
},
"creditorAccount": {
"type": "object"
}
}
}
}
],
"properties": []
}
Once registered, to retrieve the supported authorization details types, invoke the discovery endpoint of WSO2 Identity Server.
The response confirms that the payment_initiation authorization details type is registered and available for use.
curl --location 'https://localhost:9443/oauth2/token/.well-known/openid-configuration'
{
"introspection_endpoint" : "https://localhost:9443/oauth2/introspect",
"end_session_endpoint" : "https://localhost:9443/oidc/logout",
"registration_endpoint" : "https://localhost:9443/api/identity/oauth2/dcr/v1.0/register",
"token_endpoint" : "https://localhost:9443/oauth2/token",
"jwks_uri" : "https://localhost:9443/oauth2/jwks",
"revocation_endpoint" : "https://localhost:9443/oauth2/revoke",
"authorization_endpoint" : "https://localhost:9443/oauth2/authorize",
"issuer" : "https://localhost:9443/oauth2/token",
"authorization_details_types_supported": ["payment_initiation"]
}
Step 2: Authorize an API resource for an application¶
To allow an application to use an API resource with a specific authorization details type, you need to explicitly authorize the resource for that application.
- You need to have an application registered in WSO2 Identity Server. If you don't already have one, register a web app with OIDC.
- You need to set the role audience for the created application. Set the role audience for apps
- You can use Authorized APIs to authorize the previously created api resource to the application with authorization details types as shown below.
The following request associates the payment_initiation authorization details type with the specified application.
curl -i --location 'https://localhost:9443/api/server/v1/applications/<applicationID>/authorized-apis' \
--header 'accept: application/json' \
--header 'Content-Type: application/json' \
--header 'Authorization: Basic YWRtaW46YWRtaW4=' \
--data '{"id":"<apiResourceID>","policyIdentifier":"RBAC","authorizationDetailsTypes":["payment_initiation"]}'
HTTP/1.1 200 OK
Step 3: (Optional) Customize authorization details validation¶
By default, WSO2 Identity Server validates authorization details against the registered authorization details type schema.
However, if additional validation is required, you can extend the org.wso2.carbon.identity.oauth2.rar.core.AuthorizationDetailsProcessor
Java interface and provide mechanisms to validate, enrich, and identify authorization details specific to your type.
To execute your custom validation, create a JAR file with your implementation and place it in <IS_HOME>/repository/components/lib directory and restart the server.
The interface contains four methods:
ValidationResult validate(AuthorizationDetailsContext authorizationDetailsContext) throws AuthorizationDetailsProcessingException, IdentityOAuth2ServerException;
validate method is invoked once a new Rich Authorization Request is received to ensure that the
authorization details are valid and meet the required criteria. The validation logic should
be specific to the type of authorization details handled by the implementing class.
String getType();
getType method used to retrieve the type of authorization details handled by this processor. Each implementation should return a unique type identifier that represents the kind of
authorization details it processes
boolean isEqualOrSubset(AuthorizationDetail requestedAuthorizationDetail, AuthorizationDetails existingAuthorizationDetails);
isEqualOrSubset method Checks if the requested authorization detail is equal to or a subset of the existing authorization details. This method verifies if the provided {@code requestedAuthorizationDetail} is either exactly the same as or
a subset of the existingAuthorizationDetails that have been previously accepted by the resource owner
AuthorizationDetail enrich(AuthorizationDetailsContext authorizationDetailsContext);
enrich method is invoked prior to presenting the consent UI to the user. Its purpose is to enhance or augment the authorization details,
providing additional context or information that may be necessary for informed consent. This may include adding more descriptive
information, default values, or other relevant details that are crucial for the user to understand the authorization request fully.
For example, the authorization details displayed in the consent UI can be customized by setting a descriptive sentence as the description field of the authorization details instance.
Click to view a sample authorization details processor implementation
import org.wso2.carbon.identity.oauth.rar.exception.AuthorizationDetailsProcessingException;
import org.wso2.carbon.identity.oauth.rar.model.AuthorizationDetail;
import org.wso2.carbon.identity.oauth.rar.model.AuthorizationDetails;
import org.wso2.carbon.identity.oauth.rar.model.ValidationResult;
import org.wso2.carbon.identity.oauth2.IdentityOAuth2ServerException;
import org.wso2.carbon.identity.oauth2.rar.core.AuthorizationDetailsProcessor;
import org.wso2.carbon.identity.oauth2.rar.model.AuthorizationDetailsContext;
public class SampleAuthorizationDetailsProcessor implements AuthorizationDetailsProcessor {
/**
* Checks if the authorization details contain at least one valid location that includes "/payments".
* If a valid location is found, the authorization is considered valid.
* Otherwise, validation fails with an error message.
*/
@Override
public ValidationResult validate(final AuthorizationDetailsContext authorizationDetailsContext)
throws AuthorizationDetailsProcessingException, IdentityOAuth2ServerException {
final boolean isLocationValid = authorizationDetailsContext.getAuthorizationDetail()
.getLocations().stream().anyMatch(url -> url.contains("/payments"));
return isLocationValid ? ValidationResult.valid() : ValidationResult.invalid("Invalid location found!");
}
/**
* Returns the authorization details type handled by this processor.
* The returned type must match the registered authorization details type.
* In this example, it is "payment_initiation".
*/
@Override
public String getType() {
return "payment_initiation";
}
/**
* Checks if the amount requested by the client is within the limits of the user’s
* previously approved authorization details.
*/
@Override
public boolean isEqualOrSubset(final AuthorizationDetail authorizationDetail,
final AuthorizationDetails existingAuthorizationDetails) {
final long existingAmount = getExistingAmount(existingAuthorizationDetails);
final long requestingAmount = getRequestingAmount(authorizationDetail);
return requestingAmount <= existingAmount;
}
/**
* Enriches the authorization details with additional contextual information.
*
* Retrieves the creditor’s account information for the authenticated user,
* generates a human-readable description of the authorization request,
* and sets these values in the authorization details instance.
* The enriched details are displayed in the consent UI to provide clarity to the user.
*/
@Override
public AuthorizationDetail enrich(final AuthorizationDetailsContext authorizationDetailsContext) {
AuthorizationDetail authorizationDetail = authorizationDetailsContext.getAuthorizationDetail();
// Fetch the creditor account associated with the authenticated user
final String creditorAccount = getCreditorAccountByUserID(authorizationDetailsContext.getAuthenticatedUser().getUserId());
setCreditorAccountToAuthorizationDetail(authorizationDetail, creditorAccount);
// Generate a user-friendly description for the consent UI
final long requestingAmount = getRequestingAmount(authorizationDetail);
final String requestingCurrency = getRequestingCurrency(authorizationDetail);
final String description = String.format("A %d %s payment on account %s", requestingAmount, requestingCurrency, creditorAccount);
authorizationDetail.setDescription(description); // A 3000 USD payment on account c6142dc9-588c-49ec-8341-1b157c441d02
return authorizationDetail;
}
}
Get tokens with authorization details¶
Once authorization details are configured, an application can request an access token containing the required details.
Sample client credentials grant flow¶

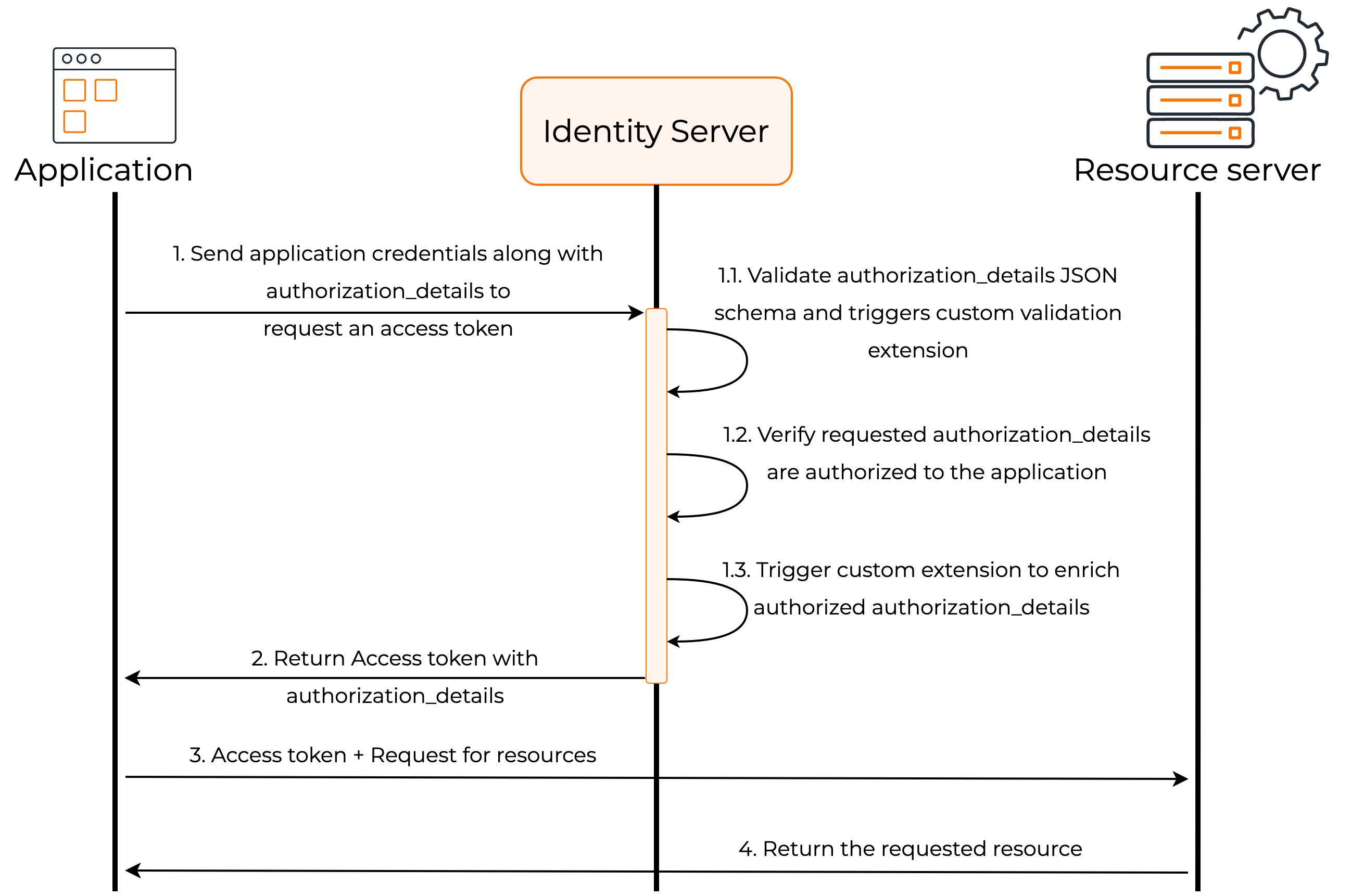

The following diagram shows how a sample client credentials grant flow works with rich authorization requests.
The request payload includes the url-encoded payment_initiation authorization details type and the response includes an
access token with the requested authorization details.
curl --location 'https://localhost:9443/oauth2/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--header 'Authorization: Basic PGNsaWVudElEPjo8Y2xpZW50U2VjcmV0Pg==' \
--data-urlencode 'grant_type=client_credentials' \
--data-urlencode 'authorization_details=%5B%7B%22type%22%3A%22payment_initiation%22%2C%22actions%22%3A%5B%22initiate%22%5D%2C%22locations%22%3A%5B%22https%3A%2F%2Fexample.com%2Fpayments1%22%5D%2C%22instructedAmount%22%3A%7B%22currency%22%3A%22USD%22%2C%22amount%22%3A%223000.00%22%7D%2C%22creditorName%22%3A%22Merchant%20A%22%2C%22creditorAccount%22%3A%7B%22iban%22%3A%22%22%7D%7D%5D'
{
"access_token": "9d1e9829-c4f3-3f39-b02c-84298ace1710",
"authorization_details": [
{
"locations": [
"https://example.com/payments1"
],
"instructedAmount": {
"currency": "USD",
"amount": "3000.00"
},
"type": "payment_initiation",
"creditorName": "Merchant A",
"actions": [
"initiate"
],
"creditorAccount": {
"iban": "c6142dc9-588c-49ec-8341-1b157c441d02"
}
}
],
"token_type": "Bearer",
"expires_in": 3600
}
The client application can now retrieve the user's payment information from the resource server by including the obtained access token in the request.
Validate the access token¶
To verify if an access token is valid and check its associated authorization details, invoke the token introspection endpoint. If the token is active, the response will include its associated authorization details.
curl --location 'https://localhost:9443/oauth2/introspect' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--header 'Authorization: Basic YWRtaW46YWRtaW4=' \
--data-urlencode 'token=9d1e9829-c4f3-3f39-b02c-84298ace1710'
{
"aut": "APPLICATION_USER",
"aud": "gSrJzfo6HGdrmWMBEXUzzy14TQQa",
"nbf": 1737884044,
"authorization_details": [
{
"locations": [
"https://example.com/payments1"
],
"instructedAmount": {
"currency": "USD",
"amount": "3000.00"
},
"type": "payment_initiation",
"creditorName": "Merchant A",
"actions": [
"initiate"
],
"creditorAccount": {
"iban": "c6142dc9-588c-49ec-8341-1b157c441d02"
}
}
],
"active": true,
"token_type": "Bearer",
"exp": 1737887644,
"iat": 1737884044,
"client_id": "gSrJzfo6HGdrmWMBEXUzzy14TQQa"
}
